Glass door rollers

A home owner from Harwich, MA says:
April 22, 2023

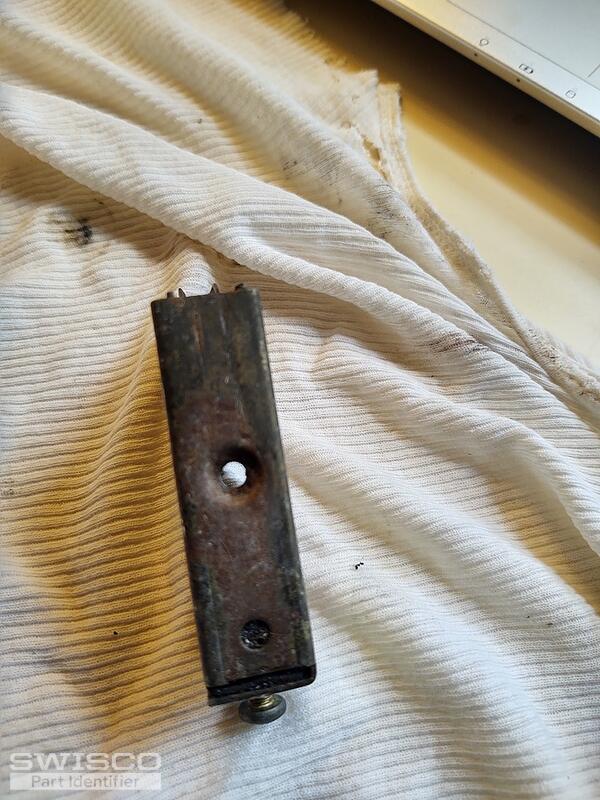

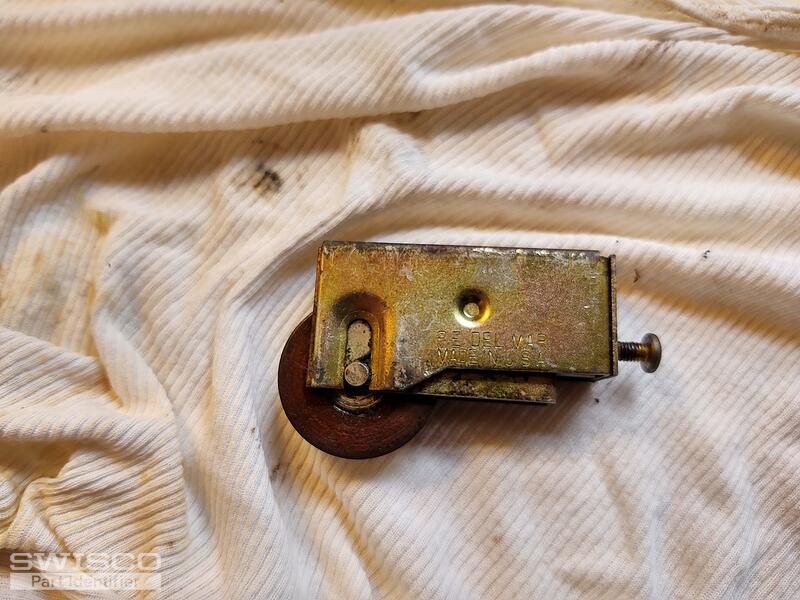

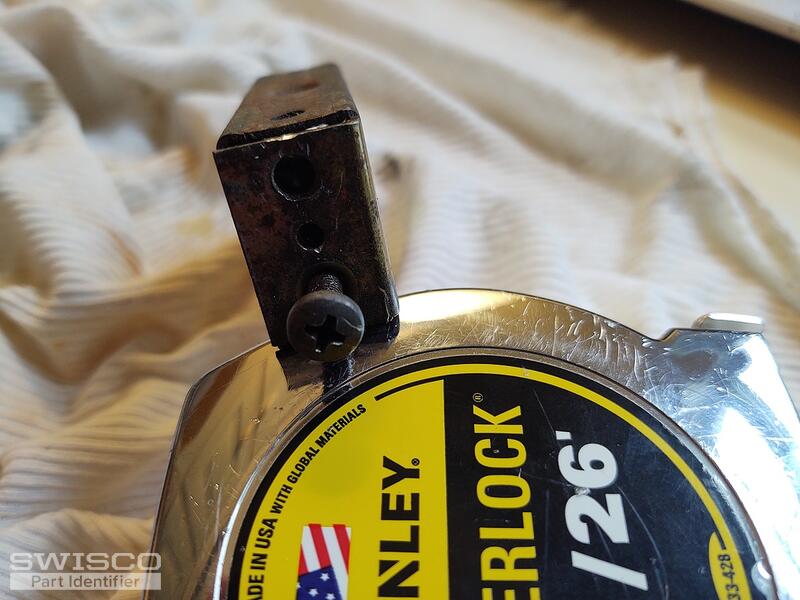

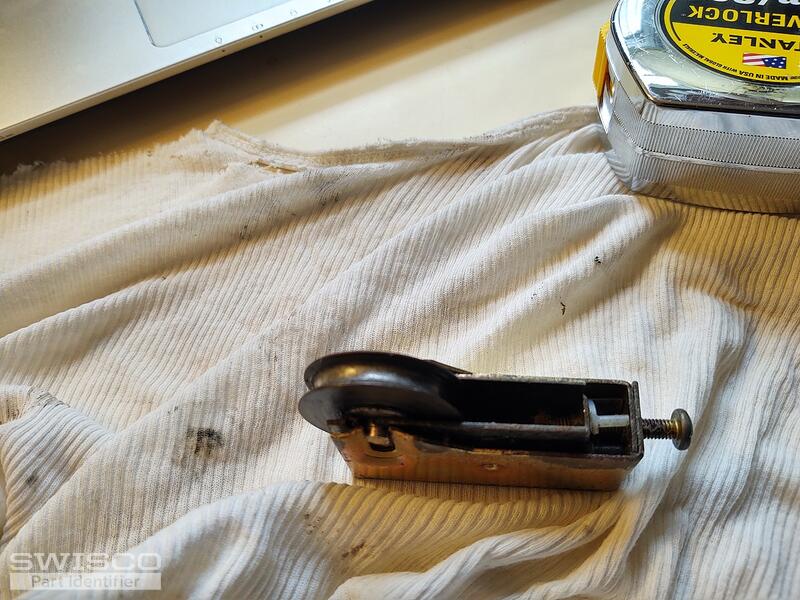

I need four replacement rollers for two sliding doors.

single metal wheel, 1 7/16" diameter
housing width is 3/4"
housing height is 1 3/8"

Housing is stamped with "PE DEL MAR"

Can you guys help?
Thumbnail of the uploaded file named IMG_20230422_155150089_HDR.jpg
Thumbnail of the uploaded file named IMG_20230422_155159834_HDR.jpg
Thumbnail of the uploaded file named IMG_20230422_155222685.jpg
Thumbnail of the uploaded file named IMG_20230422_155309940_HDR.jpg
Profile picture of Emily
Emily from SWISCO responded:
April 24, 2023

Hi there!

I'm afraid we don't sell a roller with these exact specifications. Our 81-004 is close but some of the dimensions differ from yours. You may want to double-check them and compare them with ours just to be sure.

Dimensions for 81-004
Dimensions for 81-004

Dimensions for 81-004
Dimensions for 81-004
A home owner from Harwich, MA says:
April 30, 2023
Thank you! I think the 81-004 will work. We measured the roller at 1-7/16" vs. the 1-1/2" shown in your diagram, so I'm going to assume we made a slight error in the measurement and can make it work. I'd like to order four of them.

While I'm ordering parts I'd like to also get two 6' track covers. The original tracks are about 70-1/2" each, and about 3/8" tall. They're a bit worn, so I think they'd help.

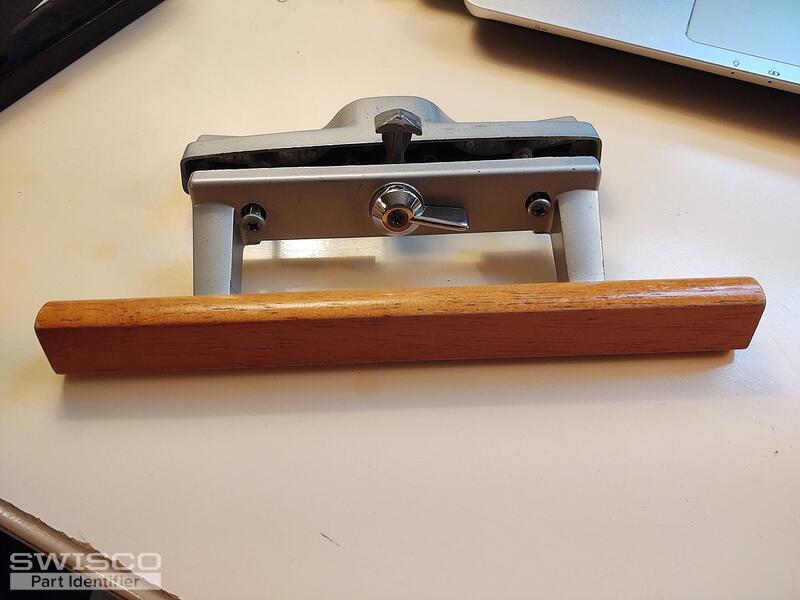

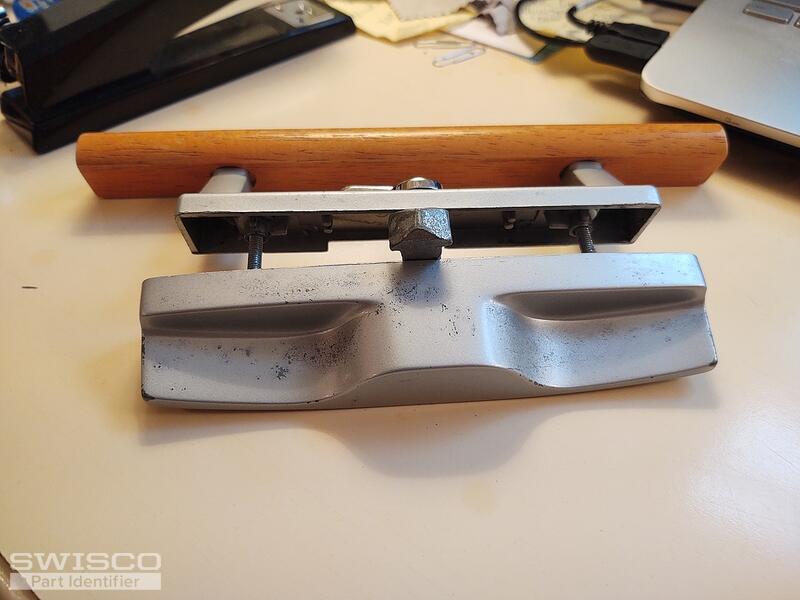

Finally I'm also interested in a key-operated locking door handle for one of the doors. Attached are photos of what I currently have. The base if the interior handle is 1" x 5-1/8" x 5/16", and the base of the exterior handle is 15/16" x 6-1/2". The door is 1-1/16" thick.
Do you have a locking door handle that will work?

Thanks
Thumbnail of the uploaded file named IMG_20230430_Sliding Door Handle - Exterior.jpg
Thumbnail of the uploaded file named IMG_20230430_Sliding Door Handle - Interior.jpg
Thumbnail of the uploaded file named IMG_20230430_Sliding Door Handle.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 1, 2023

Sure, take a look at our 80-102 track cover and see if this matches what you need. As for the handle, I recommend having a look at the 82-003 with 3-15/16" hole center spacing and 82-055K with 3-1/2" hole center spacing. The 82-003 doesn't come with a keyed exterior pull but we do sell the keyed 82-306 separately. Review the specifications for these parts and see how they compare with yours.
A home owner from Harwich, MA says:
May 2, 2023
Thank you. I assume the dimensions you refer to on the handle is the spacing between the mounting screws. I'll check that and go from there.

As for the track cover, will the wheels of the rollers fit over the 1/4" width of the track?

Thanks
Profile picture of Emily
Emily from SWISCO responded:
May 2, 2023

Yes, that's correct. Just be sure to measure from the center of each hole.

Our 81-004 roller should indeed fit over the 80-102 track cover, yes!
A home owner from Harwich, MA says:
May 5, 2023
Thanks again.

The mounting holes for the door handle are 3-15/16" on-center. The photo of the 82-003 looks pretty much like I have, except in black instead of grey. If I order the 82-306 does it just replace the exterior part of the existing handle? If so will the existing interior thumb knob then attach to the tailpiece?
Profile picture of Emily
Emily from SWISCO responded:
May 5, 2023

The 82-306 will replace the exterior handle, yes. The metal latch shown below has a slot (not pictured) that accepts the lock's key tail.

View of latch
View of latch
