Glass sliding door Rollers : SWISCO.com

Quick Learner from Lodi Ca

May 28, 2024 4:38 pm

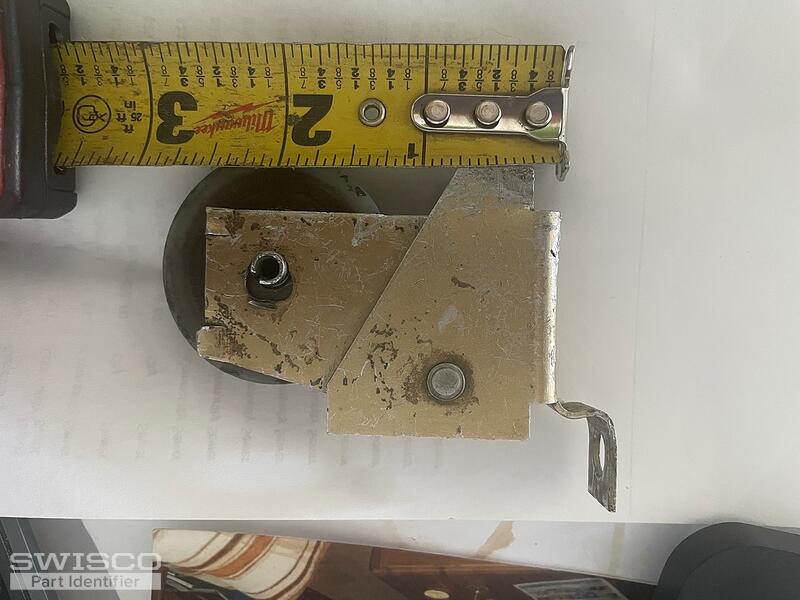

Trying to get new Rollers for Ca. 60,s built home with what appears to be original aluminum glass sliders. No I.D. On doors.

2 user uploaded images

4 Replies

Quick Learner from Lodi Ca

May 28, 2024 6:47 pm

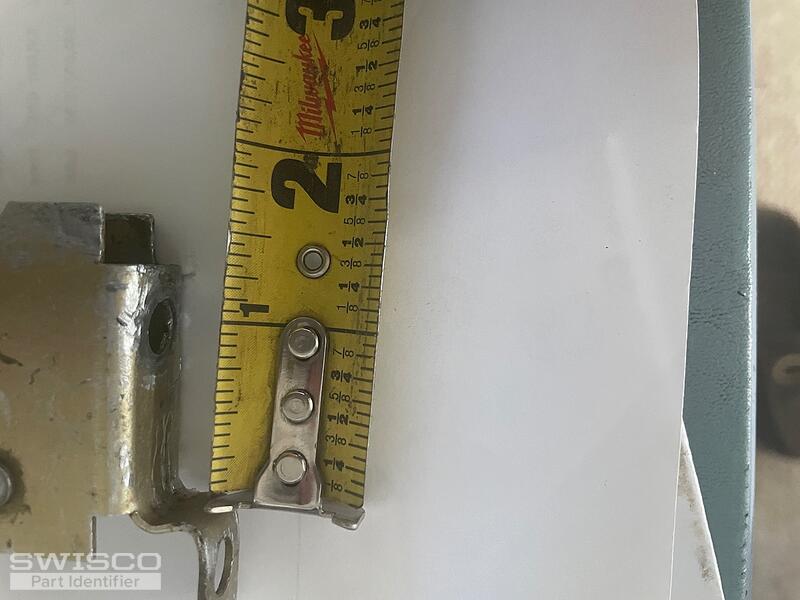

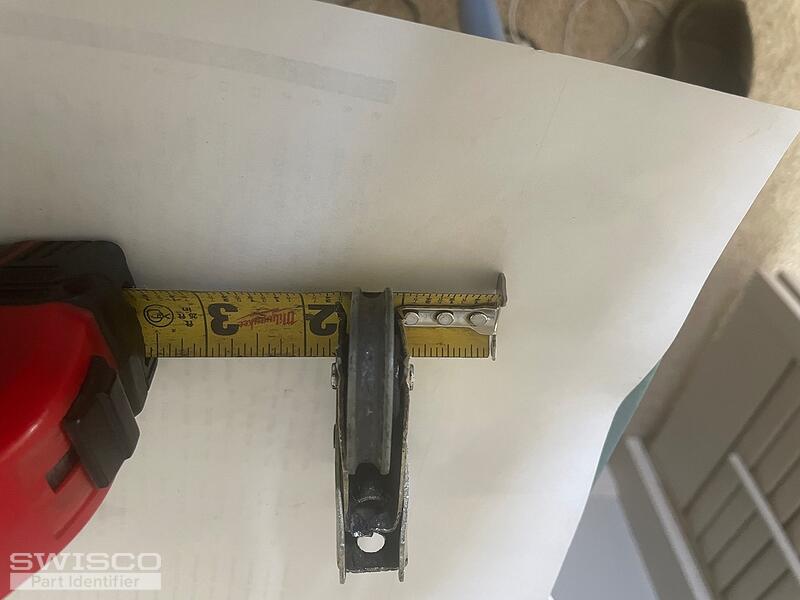

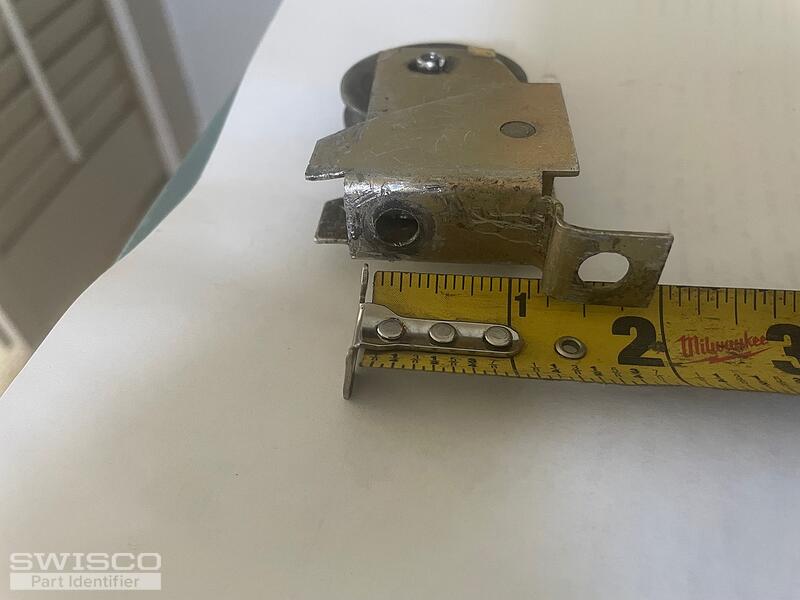

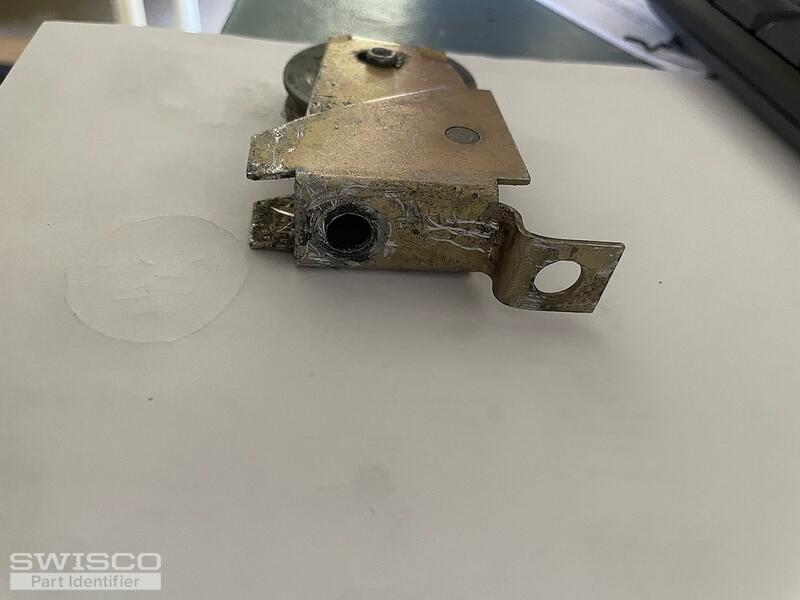

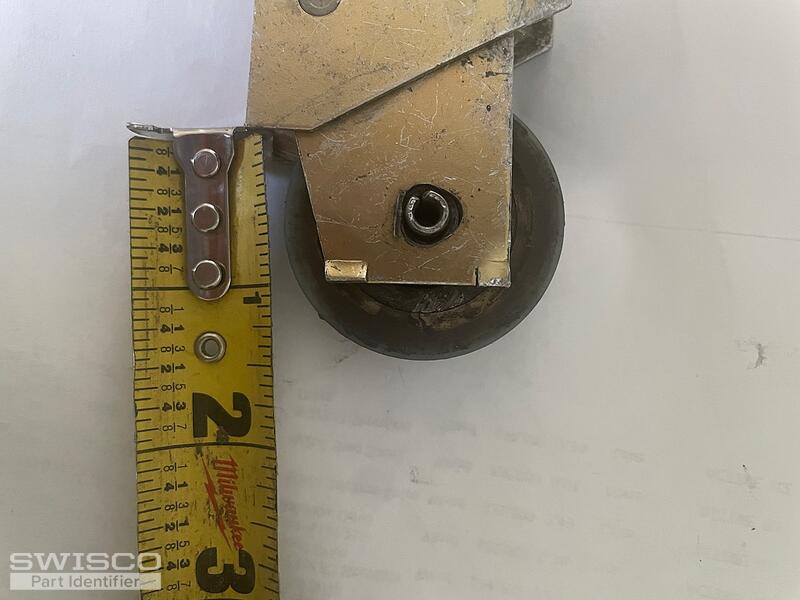

More pics... I see a few that might work. The mounting hole and adjustment hole distance looks to be an issue but I can't tell. None of yours show that dimension.

5 user uploaded images

Emily from SWISCO

May 30, 2024 1:21 pm

Thanks for reaching out to us. I'm afraid I don't recognize this roller assembly. I'm going to consult one of our senior experts on the matter. We will reach out as soon as we have more information.

Dave Sr. from SWISCO

May 31, 2024 10:02 am

I'm sorry to say that we couldn't locate this exact roller. I would suggest using one of the roller kits like the 81-272, but your roller housing location where the axle would be is worn. With that said, have a look at the 81-295 and 81-015N roller assemblies. Review the specifications and see if you think one of them can be adapted to your door.

Alternate image for 81-295

Dimensions for 81-015N

Side view of 81-015N
