Gorell Window Coil Spring replacements

Question

I am looking for replacement coil springs for my window, they were made by gorell

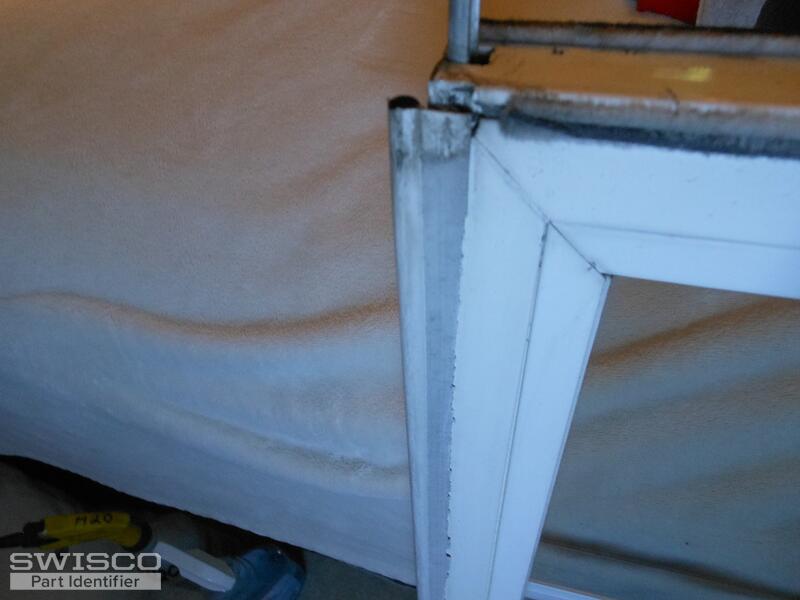

the windows weigh 14 lbs and are 35" wide by 21 1/4" tall. the channel the spring and slide runs in is 1 7/16" wide by 1/2" deep. I am not able to remove the slide without having to cut the channel and i am unable to find any numbers on them. I am also looking for the weather strip for the bottom of the window as pictured, not sur if you carry that king of replacement

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out to us! Your balance housing appears to be the 15-087 Coil Housing Pivot. This is used along with the Series 180 Coil Balance. Since your sash weighs 14lbs, you'll need the S180-07 to complete your assemblies.

Take a look over the dimensions below and compare them. To remove these assemblies, you will be required to cut them from the channel. I am confident these are the replacements you need but you may want to be sure to compare the dimensions to confirm.

Detail of 15-087

In regard to the weatherstripping, based on what I can see, I believe you may be able to use either the 58-171 or the 58-182, which are both foam-filled, T-Slot seals. To determine which of these is the correct replacement, you'll need to carefully compare their dimensions.

Profile diagram of 58-171

Profile of 58-182
