I'm looking for replacement parts for Gorell 5100 series:
1) The latch that holds the bottom sash in place, that you can pull back to tilt back the window.
2) The window lock.
Pictures attached! Thanks!

3 user uploaded images

6 Replies

Casey from SWISCO

Sep 17, 2025 11:41 am

Hello,

I can't be sure with your latch installed, but the 26-243A and 26-244A would be a good place to start. Review the specifications below to confirm if these match your original tilt latches.

Dimensions for 26-243A

As for the sash lock, we may be able to help, but we'll need you to write out the exact distance between the center of the installation holes in your lock to compare to our inventory. Thank you!

Home Owner from Fairfax, VA

Sep 17, 2025 2:00 pm

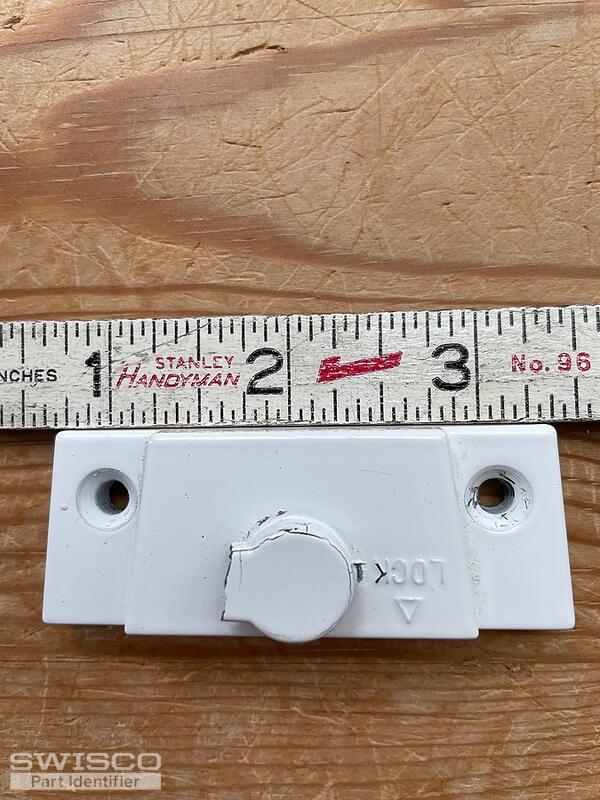

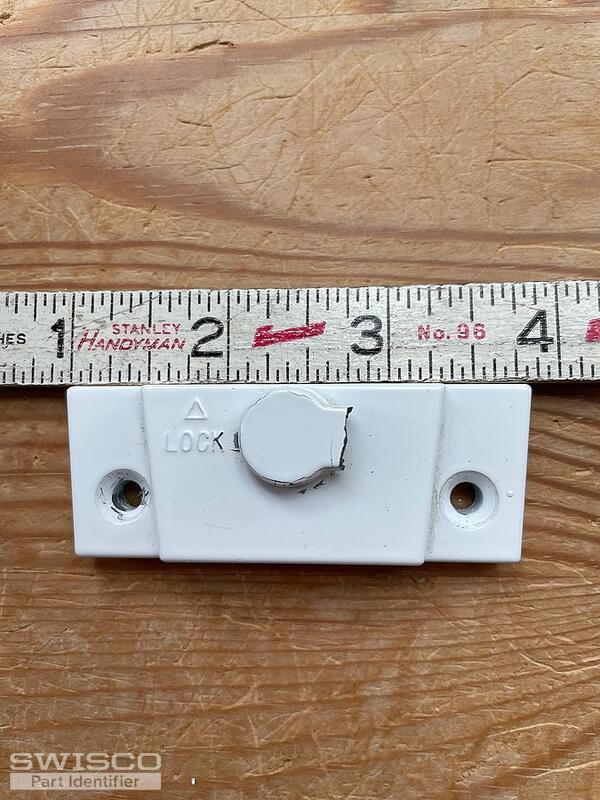

Thanks for the reply. Hole to hole looks to be 2 1/16" on the window lock. The long sides are 2 5/8" and 2 7/8" and the depth is 1 1/16". New photo attached.
As to the latches, they look to be correct. I'll order one of each when I order the window lock you specify.

2 user uploaded images

Casey from SWISCO

Sep 17, 2025 2:29 pm

Thanks for getting back to us! Take a look at the 90-278 lock and confirm the 11/16" backset of the installation holes will work for your application.

Dimensions for 90-278

Home Owner from Fairfax, VA

Sep 17, 2025 4:17 pm

It looks like it will fit. I have ordered one of each to try. Thanks!

Casey from SWISCO

Sep 18, 2025 8:12 am

Great! We'll be here if you need anything else.
