Gorell Window parts

Contractor from Fairview Hieghts, IL 62208

Apr 26, 2018 4:22 pm

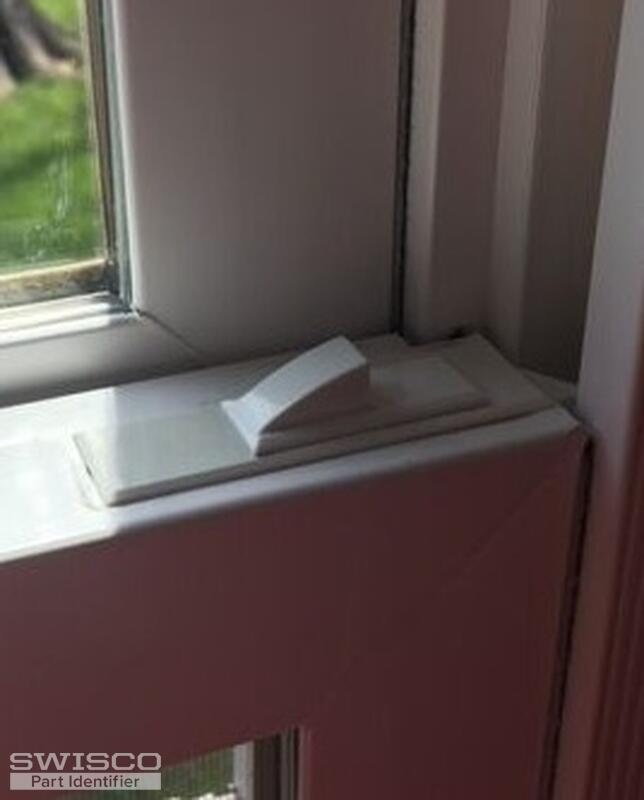

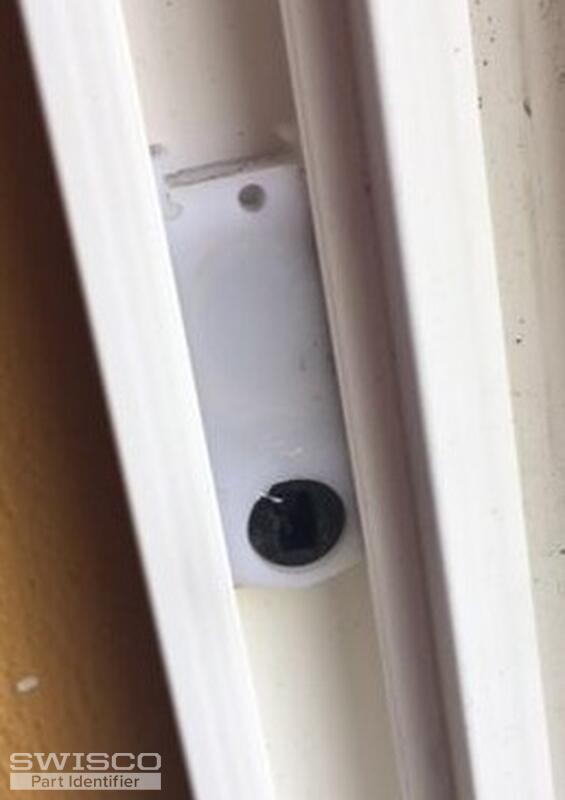

I need a sash lock and balances for some Gorell windows. The Gorell model # is 5155 and measures 23X59. Please see attached photos.

2 user uploaded images

4 Replies

Paul from SWISCO

May 1, 2018 11:33 am

We believe your Gorell model window uses a Series 180 coil spring in your coil housing with a cam. It looks very similar to our 15-087. You will need to remove the housing in order to see what number is stamped on your Series 180 coil spring.

Looking at your finger lever, we do not offer the same one as you have, however, our 26-243 and 26-244 tilt latches should match. You want to compare measurements just to make sure. We also placed some additional guides on this page for further help.

Quick Learner from Florence Massachusetts

Sep 7, 2022 12:32 pm

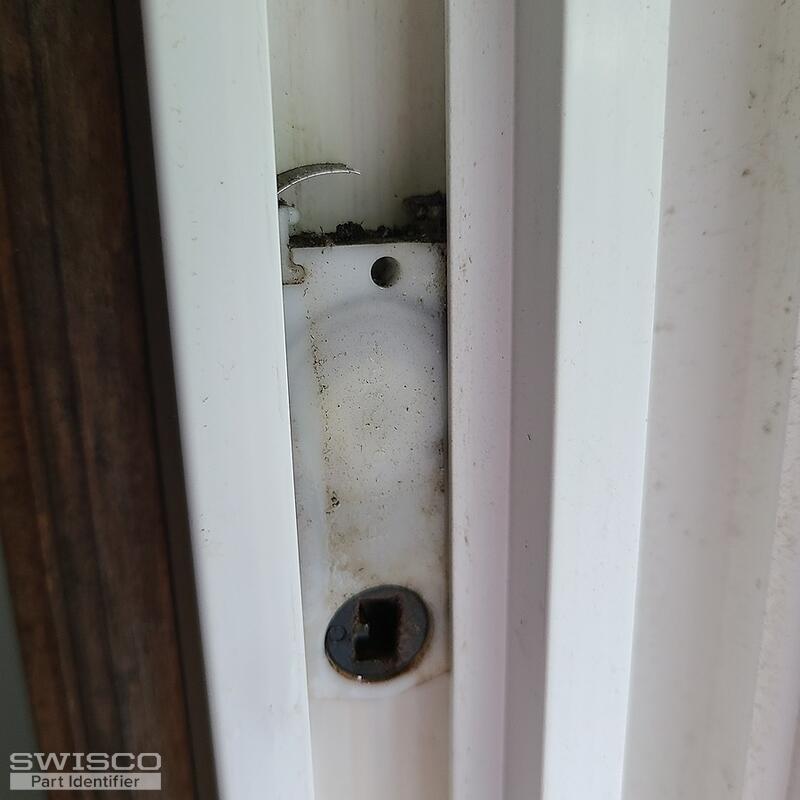

Hi I need two pivot coils for my Gorell windows. Both metal bands have broke off inside the pivot coil plastic case. I added a picture. Can you tell me which parts I need . Thank You, Paul.

1 user uploaded image

Tom from SWISCO

Sep 9, 2022 9:45 am

Your coil balance assembly appears to be the same as the assembly shown by the customer who created this thread back in 2018. Is there any reason why you don't think that the products Paul recommended will work for you? They appear to match very well to me, but let me know if you had any concerns.
