Grass drawer rail and back rail guide bracket

Handy Person from Ohio
Do you have a replacement bracket that will fit this Grass rail?
2 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! This looks very similar to our 32-014. I think this may just work for you, but look over its dimensions just to confirm they're in alignment. Note that the size of the opening that accepts the track is the most important detail; in this case, 7/8" x 5/16".

Alternate image for 32-014
Alternate image for 32-014
Handy Person from Ohio

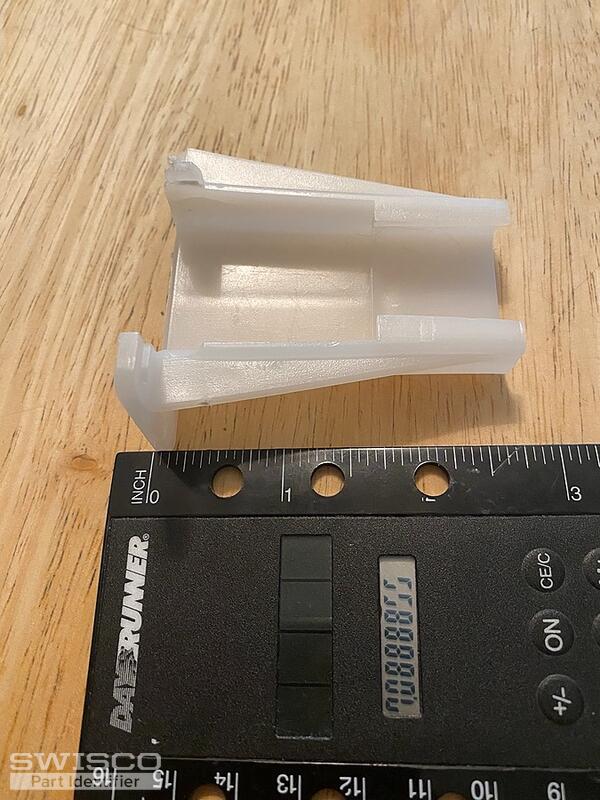

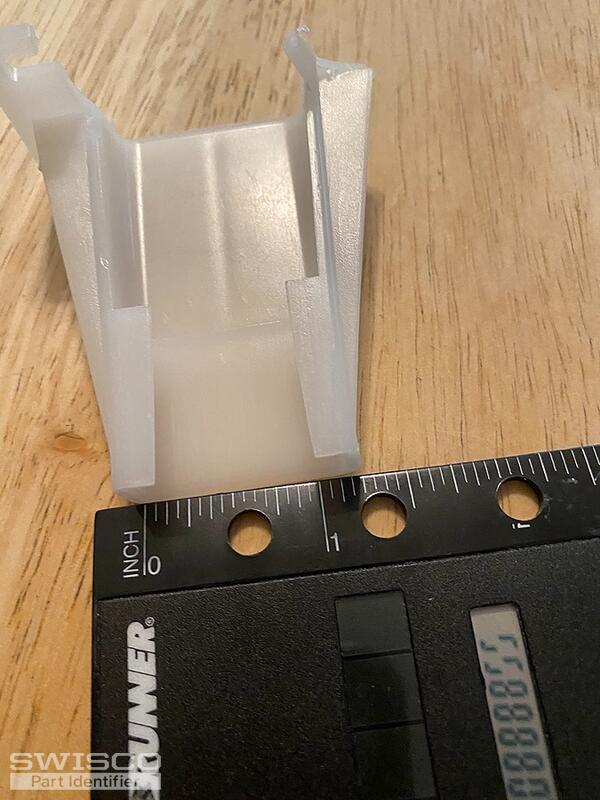

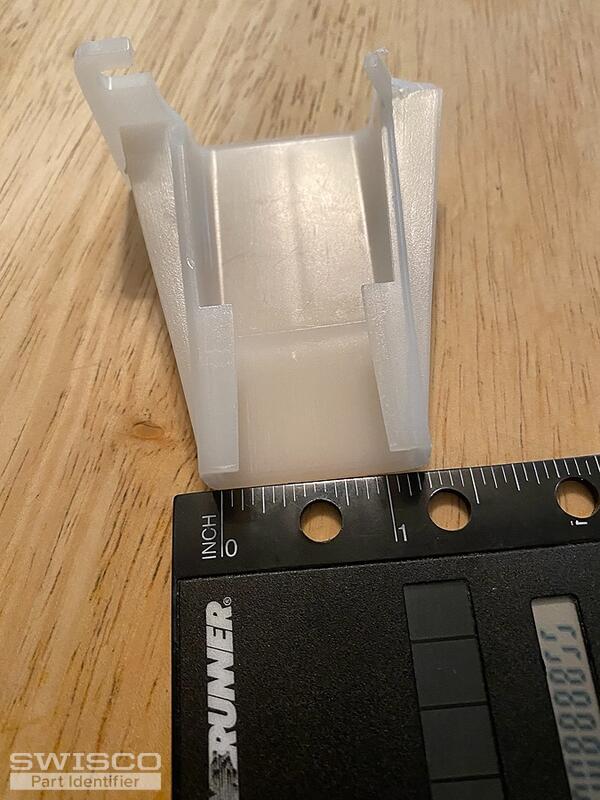

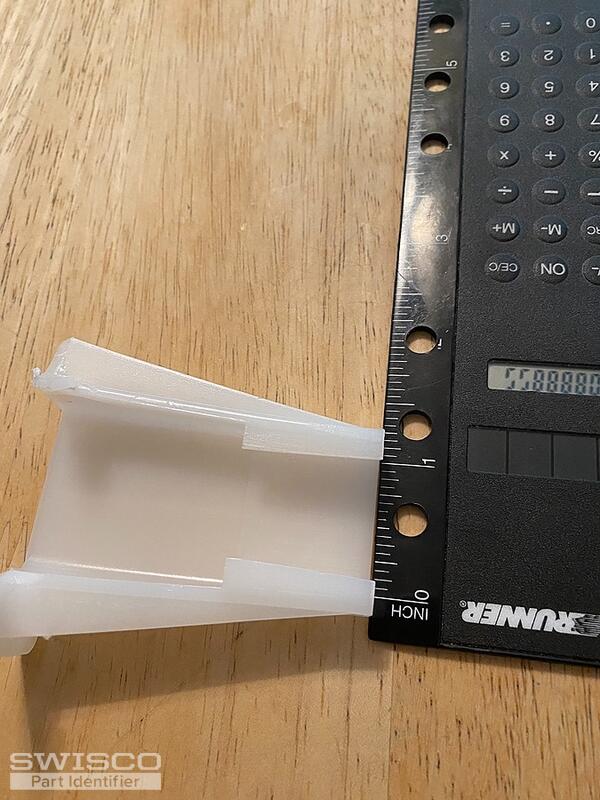

It's a bit bigger than that. Do these photos help?
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Ah, I see what you mean. That is definitely way bigger. I'm afraid we don't have a drawer socket in this style that is larger than 1".

That said, the track itself looks like it's under 1", perhaps even closer to our 7/8" measurement. Is there a reason why you need the wider socket mouth? Is it because of the way the end of your track bends up?
