Great Lake bow window left side casement window operator

A home owner from Toms River, NJ 08753 says:
Hi,

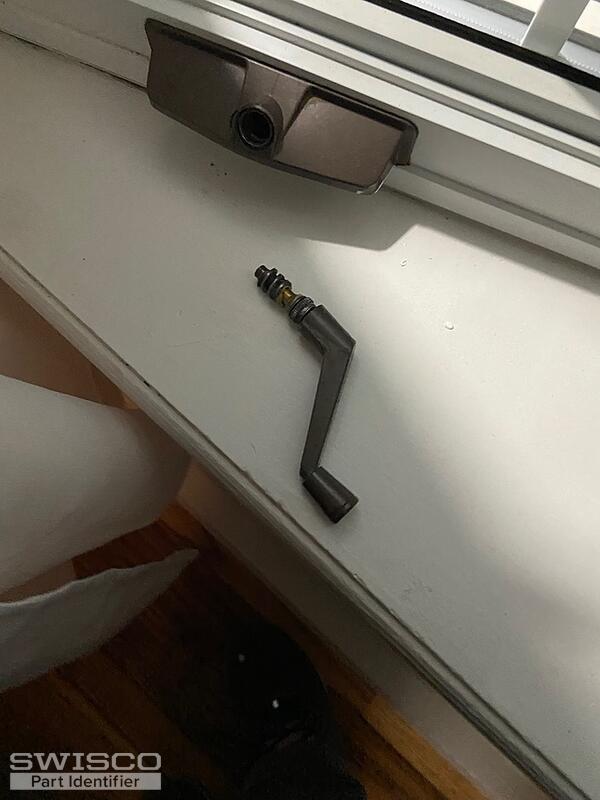

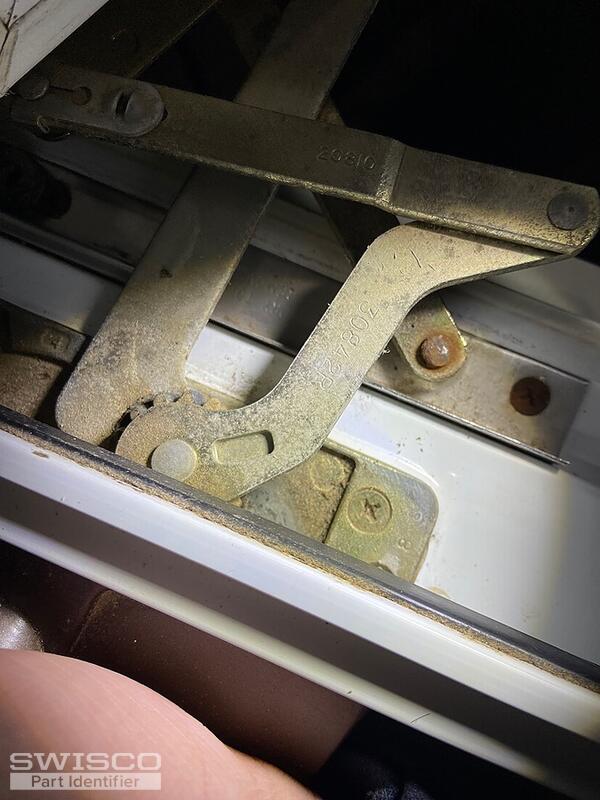

I have an installed 1989 Great Lakes Window (bow) with two casement window on each end. The left casement window, the window can open with the handle but won't close it with the handle. It looks like the operator part that connects to the handle is stripped. I found serial numbers on operator parts 30842R and 20810. Also the long bar from the operator has Entry Guard Truth on it. Hope you can help.

Trish
Thumbnail of the uploaded file named 3EBD9DC9-D32D-45E9-93E0-FAF1F802A023.jpeg
Thumbnail of the uploaded file named 36BB4F7D-2A1B-4A7E-9F95-44862925A2F8.jpeg
Thumbnail of the uploaded file named 442E4C4E-C70B-4279-8833-1B013441D9A3.jpeg
Thumbnail of the uploaded file named BBAFFFD9-065A-4D0F-9E02-70B01357B076.jpeg
Thumbnail of the uploaded file named FD57E3AA-B75F-4181-808A-9F8F95006A5F.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Trish. Your analysis is dead on: your worm gear has stripped out. This is a common failure point on older operators.

The good news is that we sell the operators that will replace this. See our 39-031 and 39-032. I am fairly confident that these are what you want but review our specs and see what you think.

Dimensions for 39-032
Dimensions for 39-032

Watch How To Repair A Casement Window Crank Operator
Watch How To Repair A Casement Window Crank Operator
VIDEO
WATCH >
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
How to Orient a Dual-Arm Operator
How to Orient a Dual-Arm Operator
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
