Great Lakes Windows/Plygem - pivot lock shoe

A handy person from Madison, CT says:
August 27, 2019
I need help in identifying a pivot lock shoe for a Plygem window by Great Lakes Window - pictures enclosed. It's approximately 2 1/8 inches high, 1 1/4 inches wide, and 5/8 inches deep. It has a metal cam which accepts a circular pivot bar. Thank you in advance for your assistance.
Thumbnail of the uploaded file named EC7D1A0A-765E-444F-B931-23CAF2D5A9C0.jpeg
Thumbnail of the uploaded file named 9F6EA79E-7E65-4301-8A71-46C85E0BE77E.jpeg
Thumbnail of the uploaded file named 7A78F6E9-FDF0-4ADB-8565-F59AE9CFFCB2.jpeg

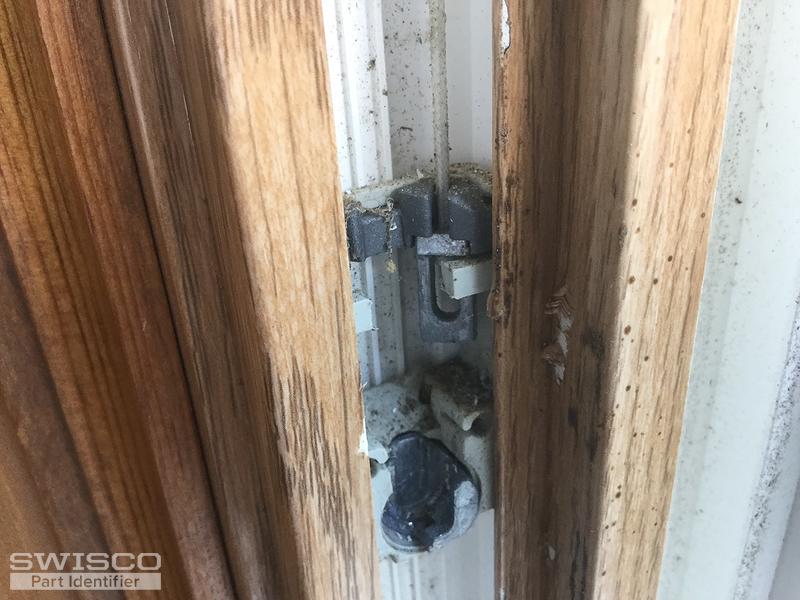

Thumbnail of the uploaded file named 0E9267DA-D181-472C-B76D-D78B56985B81.jpeg

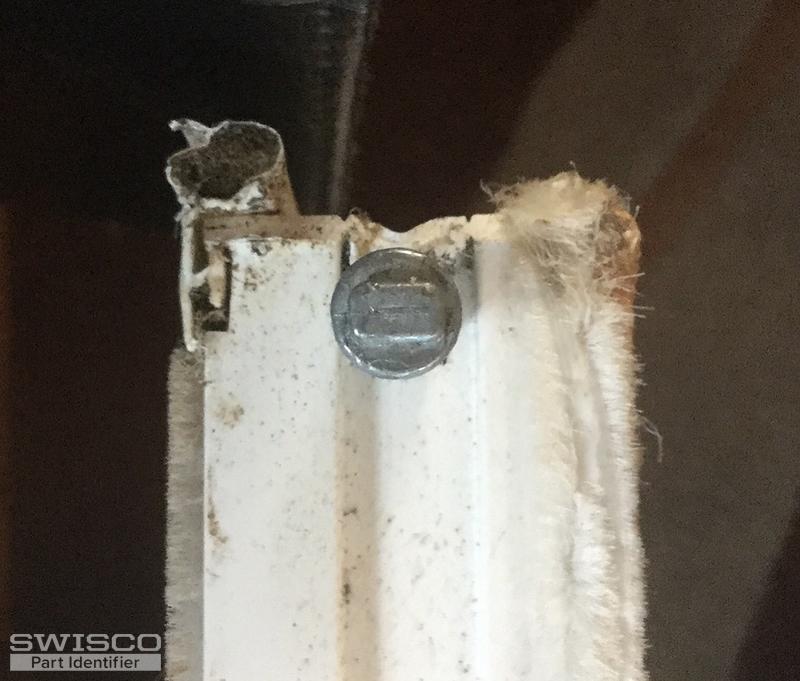

Thumbnail of the uploaded file named 3BA90A04-135C-4FC8-A750-D3A33085B5AD.jpeg
Profile picture of Tom
Tom from SWISCO responded:
September 3, 2019

Thanks for your patience in this matter. We don't have a pivot shoe in this style as thick as 5/8". Can you confirm that dimension? Otherwise, I think it would be a match for either our 15-178 or 15-188. Look these over and let me know what you think.
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
