Great Lakes sliding patio door. Made in 1997.Great Lakes was bought later by ply gem.

Start a new Discussion

Quick Learner

Nov 10, 2023 10:46 am

2 user uploaded images

6 Replies

Lauren from SWISCO

Nov 10, 2023 12:44 pm

Hello, thank you for posting,

To further review, we will need to see the assembly removed from the frame of the door. From there we can view the overall style to confirm if we can supply a suitable replacement option. Thank you!

Quick Learner

Nov 10, 2023 1:55 pm

Lauren is there any possible way you can identify the right roller without taking the door out of track? It's a lenthty thing to remove this door.You have 2 pictures. Thank you.

Lauren from SWISCO

Nov 10, 2023 2:07 pm

Unfortunately not, replacements come down to the exact dimensions and style. We will need to see the full assembly removed with clear pictures along with written out dimensions of the height and width of the metal housing and the diameter of the wheel.

Quick Learner

Oct 4, 2024 2:29 pm

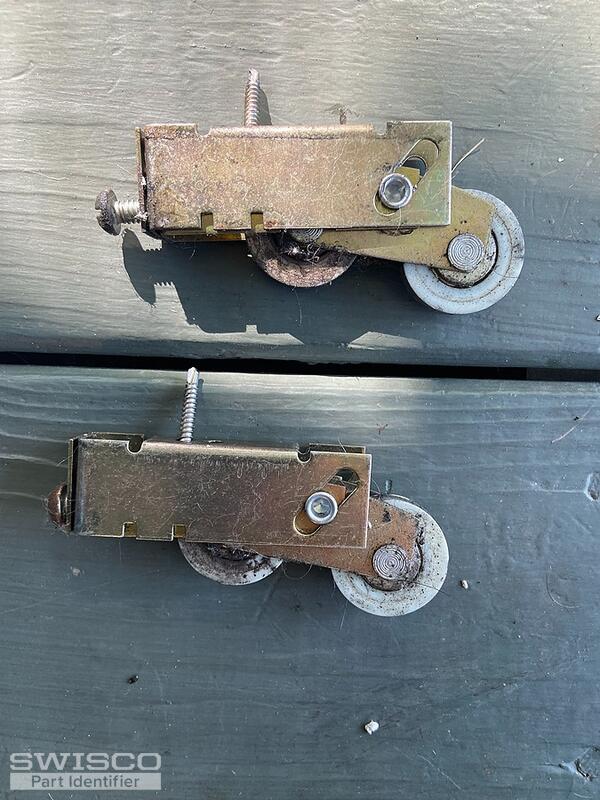

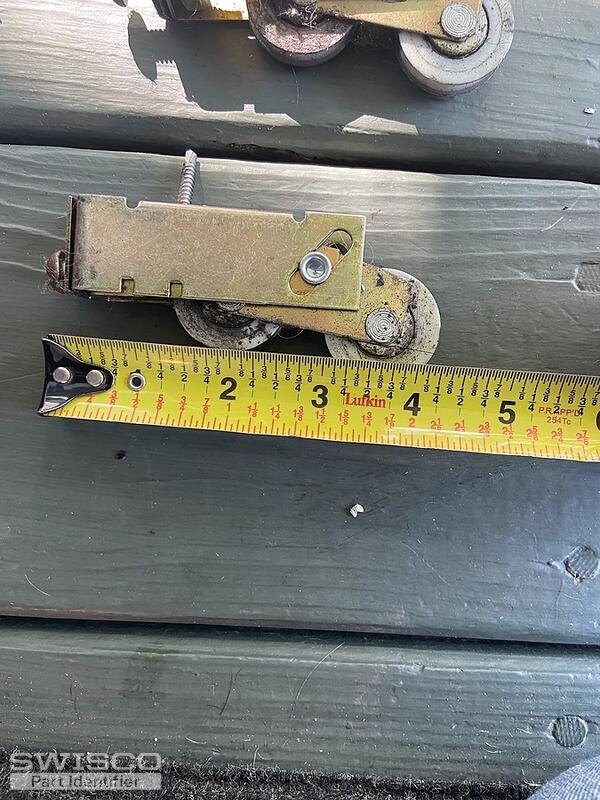

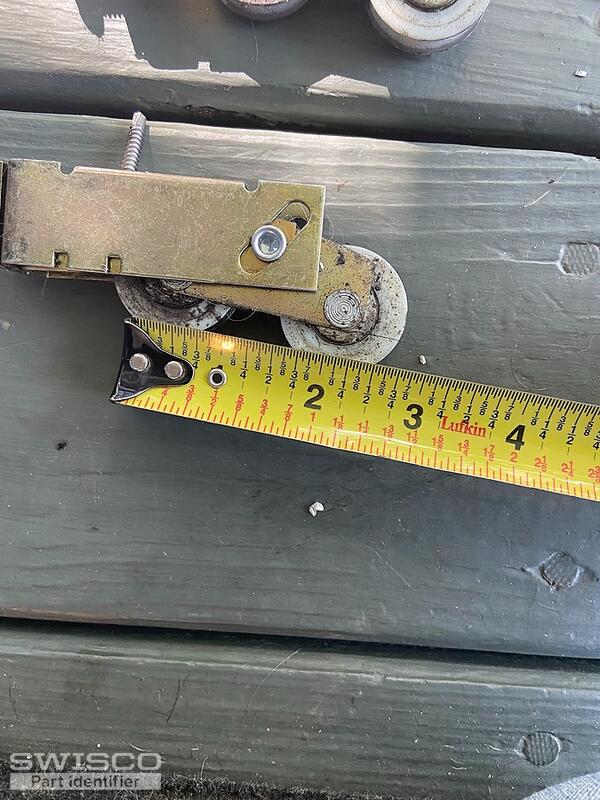

Photos of wheel removed

4 user uploaded images

Lauren from SWISCO

Oct 7, 2024 11:42 am

Thank you for the pictures,

The closest we carry to your original is the 81-030, 81-095, 81-138 or 81-189 roller assemblies. You will need to compare the width, height and diameter of the wheel of your original to confirm the best fit! Let us know if you have any additional questions.
