Guide pins

A quick learner from America! says:

May 20, 2020

I need about 6 of these guide pins so I want to make sure I get it right. Can you help identify the correct pin? As you can see from one of the photos, the current pins (or the broken pins) were 4 1/2 inches long. These are metal doors, fairly old in my estimation. I'm sorry that some of the photos are uploading sideways, hopefully you can see them right-side-up after download.

Thumbnail of the uploaded file named IMG_8058.jpg

Thumbnail of the uploaded file named IMG_8057.jpg

Thumbnail of the uploaded file named IMG_8056.jpg

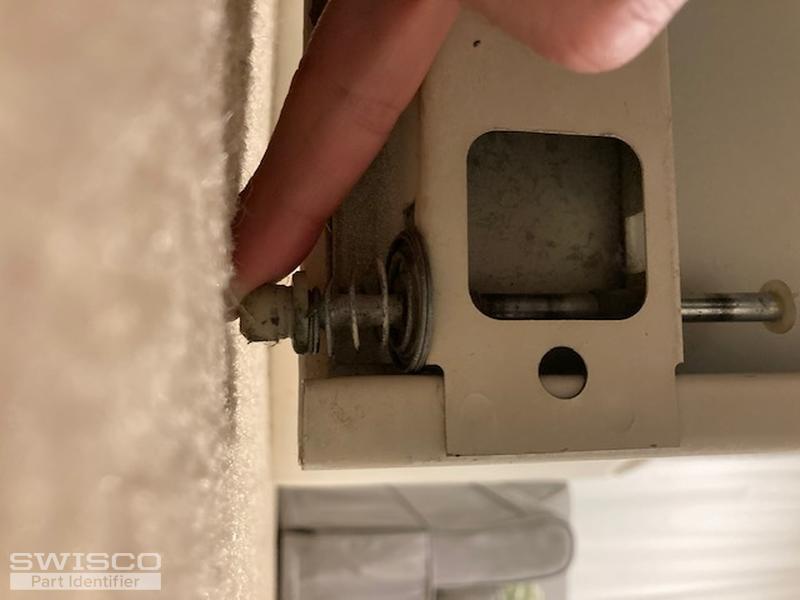

Thumbnail of the uploaded file named IMG_8055.jpg

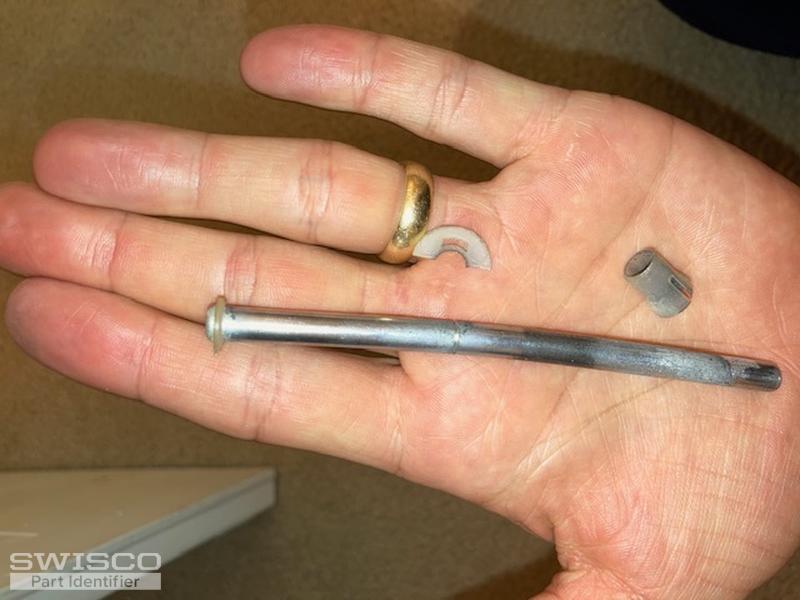

Thumbnail of the uploaded file named IMG_8052.jpg

Paul from SWISCO responded:

May 25, 2020

Hello,

The length is not vital when identifying a bi-fold door pin but knowing the thickness of the pin and getting a better look at the nylon cap, along with its diameter, will give us a much better idea of what could work for you. Also, we'd like to see the threaded adjusting pin and the pivot block in the track to determine which of our replacement parts would be compatible with your hardware. Thank you!

A quick learner from America says:

May 25, 2020

Thanks, Paul. The pin is 6mm in diameter. The part of the nylon cap that sits in the track is 1cm in diameter, the wider brim that holds the spring back is 1.5cm. The track that the cap slides on is 1.2cm wide. I hope this helps, I'm not super familiar with all of the terms but please let me know if there is other information that I can provide to you.

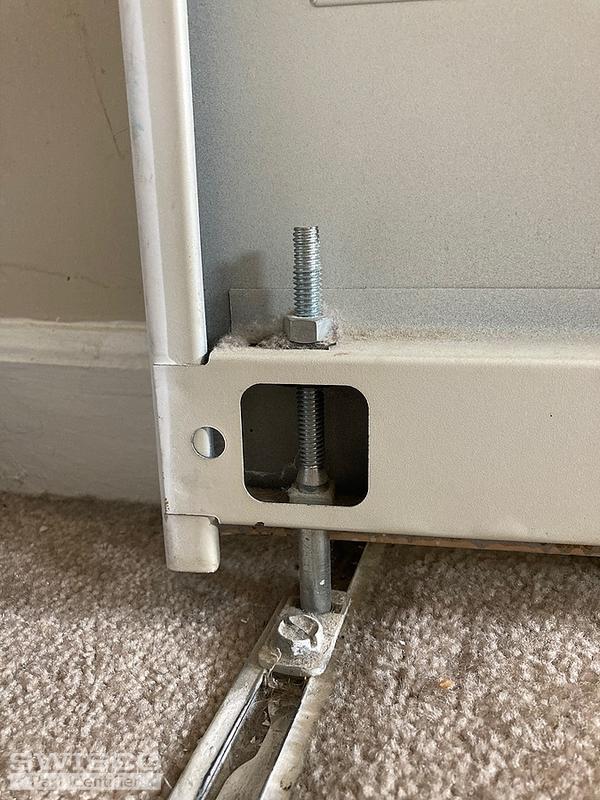

Thumbnail of the uploaded file named 7C94D48E-CA03-478D-A51A-AEA9F757D6E0.jpeg

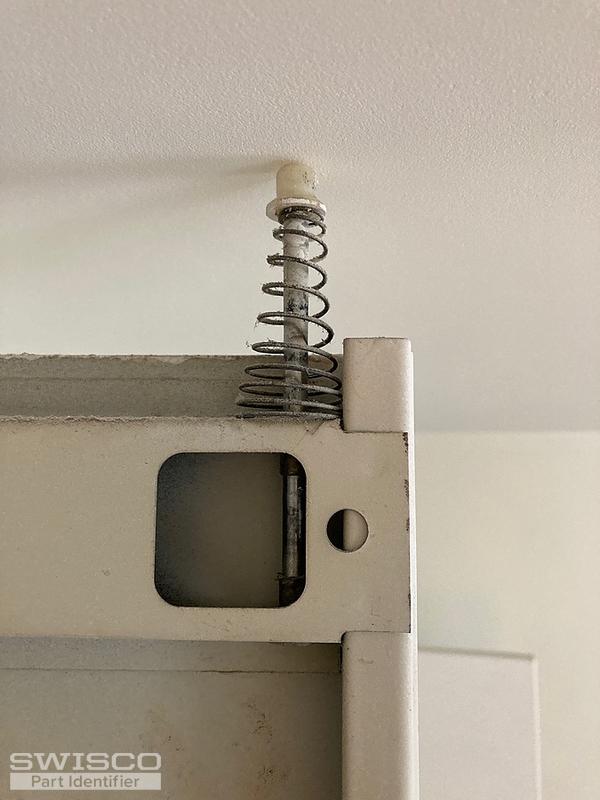

Thumbnail of the uploaded file named C75537A8-6E25-4183-9D69-EAAD6DC16F36.jpeg

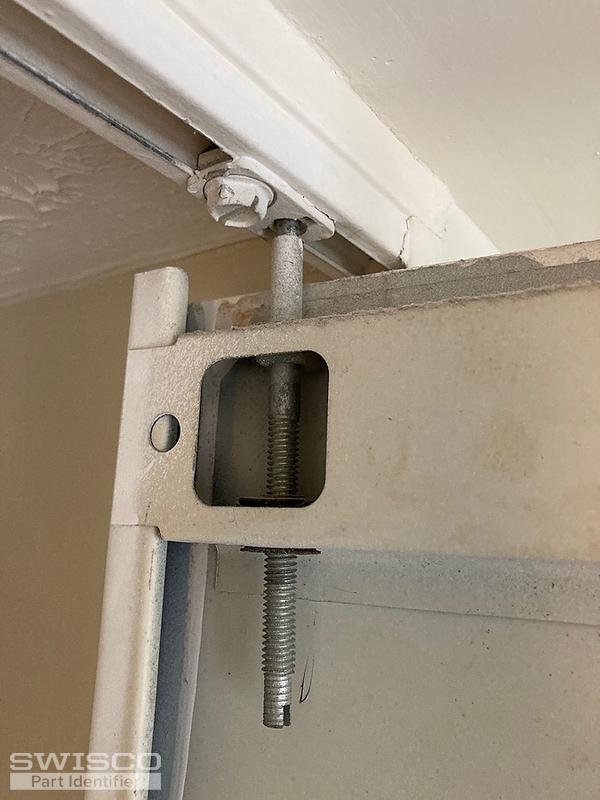

Thumbnail of the uploaded file named 49AA1389-AB8D-4124-9149-17C2131D741E.jpeg

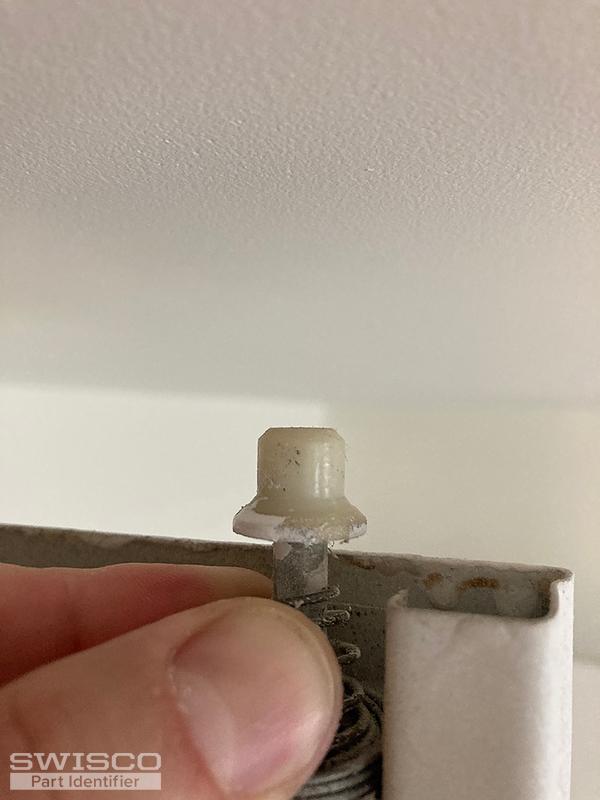

Thumbnail of the uploaded file named 519BF5F9-0A27-4367-B2BF-65E77FFC60FE.jpeg

Paul from SWISCO responded:

May 27, 2020

Thanks for including the additional information. If the pins are okay and you need just the nylon caps, take a look at our 21-117 pin cap. They are used with a 5/16" pin. We also have the pin with the spring; see our 21-071 pin and the 5/16" 21-152 grommet.

Bifold Door Top Pivot and Guide Pin, Peachtree

Floating Grommet, Float-A-Way

Bifold Door Pin Cap, Cromwell
