Guide shoe for tilt window

A home owner from Matthew's, North Carolina says:
Looking for these parts, pictures attached. I do not know what make of windows these are. The house was built in 1993.
Thumbnail of the uploaded file named 20190523_102207.jpg
Thumbnail of the uploaded file named 20190523_102141.jpg
Thumbnail of the uploaded file named 20190523_102154.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. For your tilt latches, start by reviewing our 26-193 and 26-194 Tilt Latch pair. Carefully review all the dimensions to ensure that they line up. For your sweep lock, take a look at our 90-072. Again, go over all the dimensions and let us know if it's a match. For your pivot shoe, there's a few possible options; we really need to know the width and thickness of the shoe to be certain. If you can remove the shoe from the window and measure those two dimensions, it should match one of our options on the pivot shoe shop page here. For removal and replacement help, see the video below.

A home owner from Matthew's, North Carolina says:
Hi Bob, received your email, I have removed the part. The measurements are: width is 1 inch, thick is 5/8, length is 2 inches

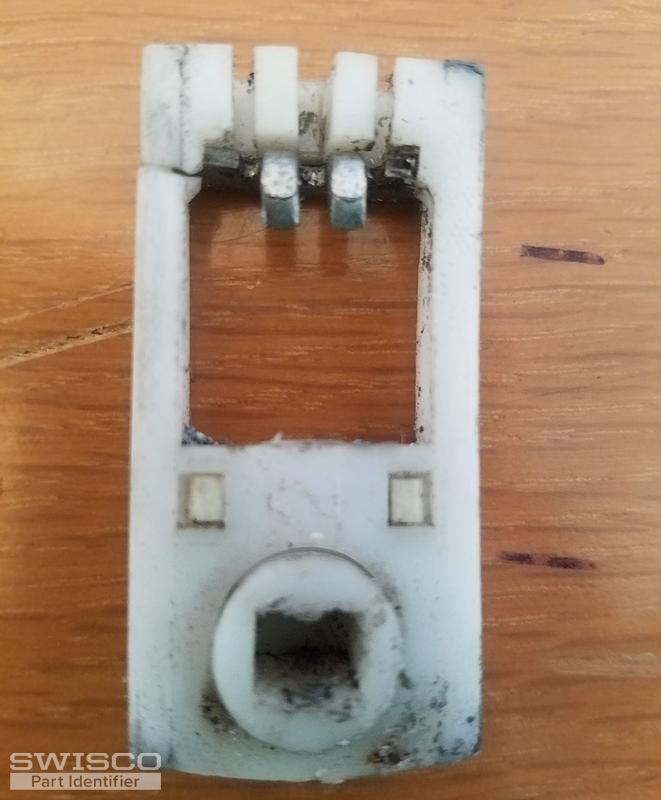

Thumbnail of the uploaded file named 20190524_093950.jpg

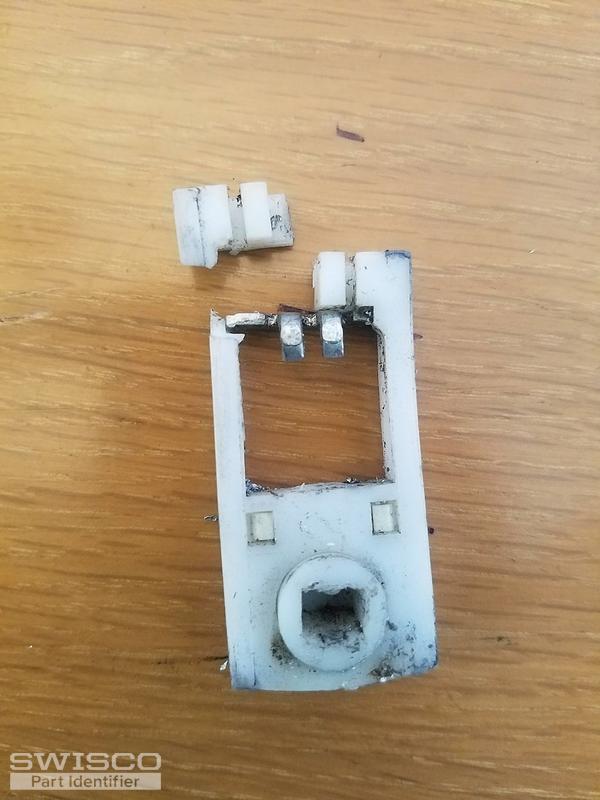

Thumbnail of the uploaded file named 20190524_094024.jpg

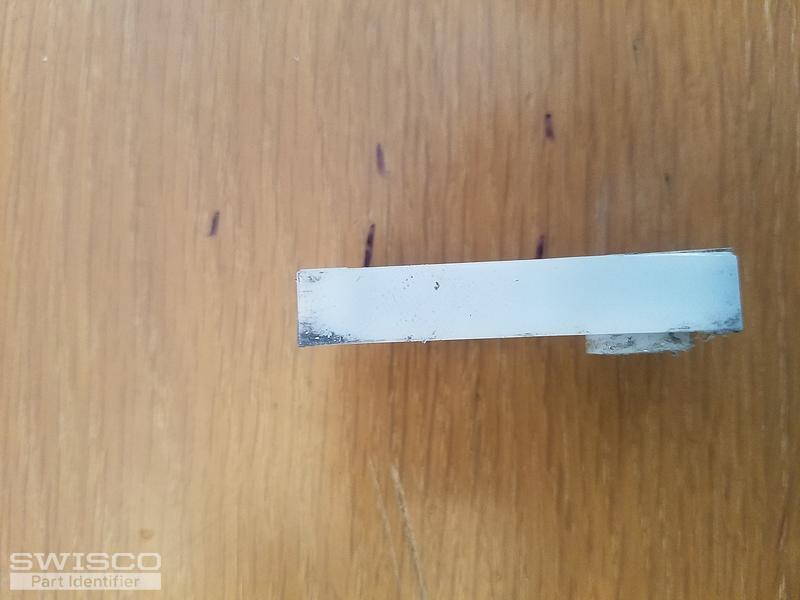

Thumbnail of the uploaded file named 20190524_094007.jpg
A home owner from Matthew's, North Carolina says:
Hi Bob, the thickness is 3/8 not 5/8
Profile picture of Michael
Michael from SWISCO responded:

In that case, we believe you can use our 15-212

Take a look at this part, compare the dimensions, and see if this will work for you.
