Guide and Pivot Pins and Pivot Brackets

A quick learner from maryland says:
I need to restore a total of 4 doors. Need all hardware: Guide Pins, Pivot Pins, Pivot brackets etc. Door manufacturer unknown. Help.
Thumbnail of the uploaded file named Screenshot_20220410-192554_Gallery.jpg
Thumbnail of the uploaded file named Screenshot_20220410-192514_Gallery.jpg
Thumbnail of the uploaded file named Screenshot_20220410-192344_Gallery.jpg
Thumbnail of the uploaded file named Screenshot_20220410-192325_Gallery.jpg
Thumbnail of the uploaded file named Screenshot_20220410-192442_Gallery.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hello, thank you for posting,

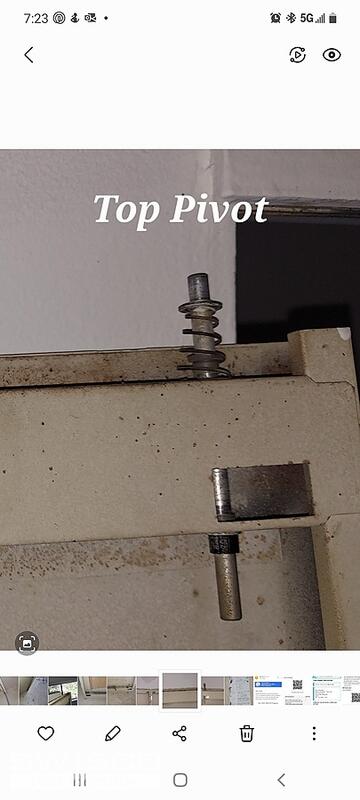

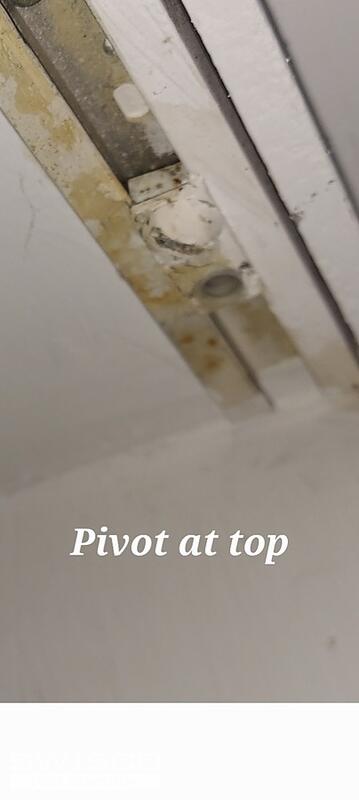

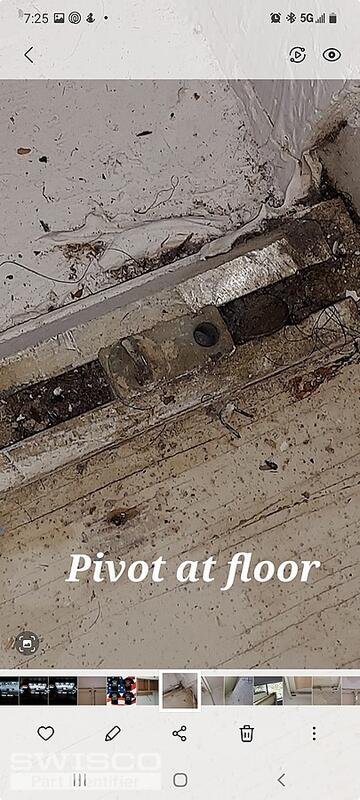

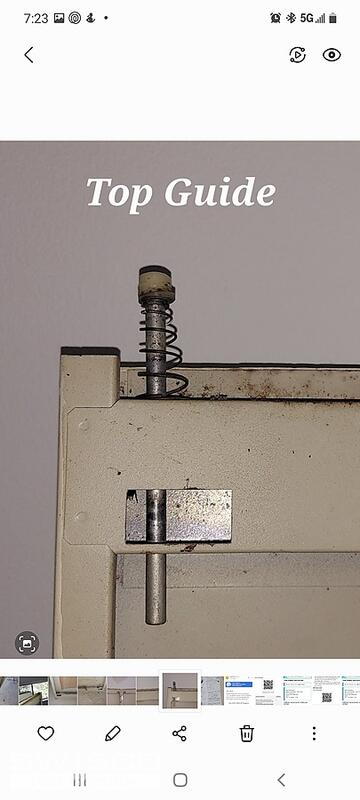

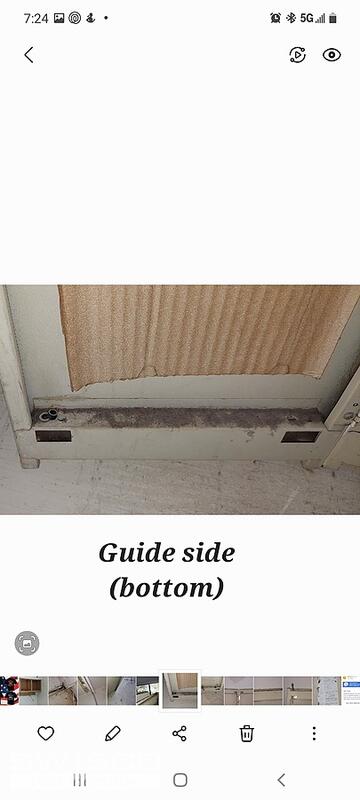

You have a very old Strato Bi-fold door. For your top & bottom spring loaded guide pins, you can use 21-091. For the top spring loaded pivot pin, you will need to combine the 21-026B plain 1/4" pin with the 21-250 spring and two 21-155 push nuts, one for the top and the other to lock in the pin to the door. For the bottom threaded adjusting pin, you can use the 21-003 pivot.
