A home owner says:
April 11, 2021
Both Guide pieces are worn so they came off the guide bar when closing the crank. Is it possible to replace the guides alone? If so, not sure how to put onto guide bar since each end of the bar is flat at each end where it screws to window frame. Or, do I have to replace the bar with guides already attached? Thanks
Thumbnail of the uploaded file named 20210408_171520.jpg
Thumbnail of the uploaded file named 20210408_171440.jpg
Thumbnail of the uploaded file named 20210408_171424.jpg

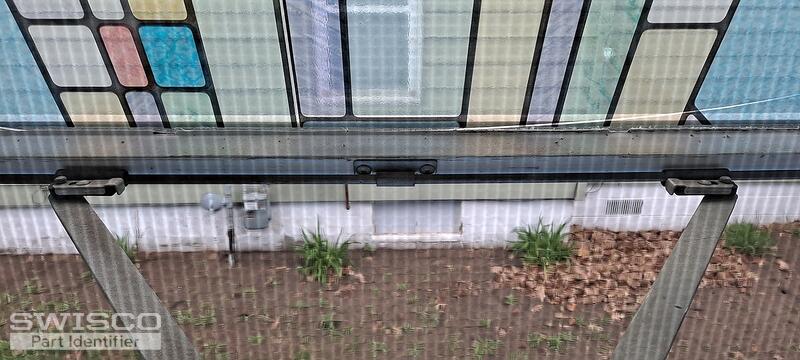

Thumbnail of the uploaded file named 20210411_181925.jpg

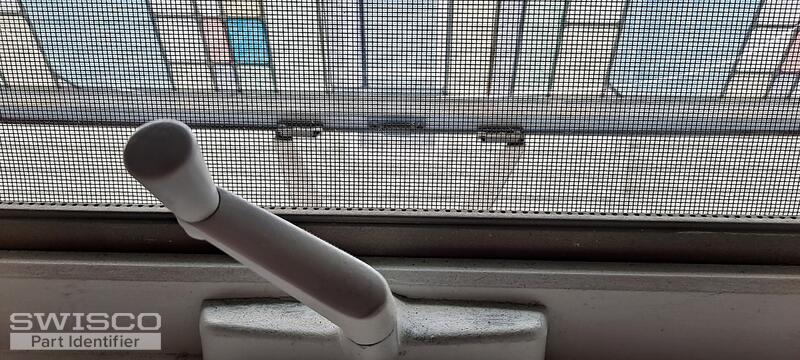

Thumbnail of the uploaded file named 20210411_181942.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 15, 2021

Behind that center bracket you show in one of your photos is where the two bar guides meet up in the middle. I recommend that you remove the two screws holding the bracket to the window so you can install the new shoes. That should do it.
Roto-Lock Operator Shoe Pair
Roto-Lock Operator Shoe Pair
36-030
$24.45
