H-LC25 replacement parts ID help

Quick Learner from Denver

Nov 2, 2019 6:23 pm

I have multiple guillotine tilt upper windows that do not stay in the up position and slam down.
The spring mechanism looks good but as you can see in the picture, the plastic part has broken on each window I have inspected.
What part # is it that I would need to order?
Thanks

2 user uploaded images

6 Replies

Paul from SWISCO

Nov 5, 2019 12:05 pm

If you're needing just the clip, our 15-181 would make a good fit, as well as, the 15-180 coil balance shoe. Take a look and let us know if you need any further help with your coil balance system.

Quick Learner from Denver

Nov 5, 2019 5:00 pm

Excellent!
Just what I needed.
Ordered what I needed and should be good to go.
Much appreciated!

Victor

Paul from SWISCO

Nov 6, 2019 8:34 am

Great! We are happy to help!

Home Owner from New Jersey

Aug 30, 2023 2:29 pm

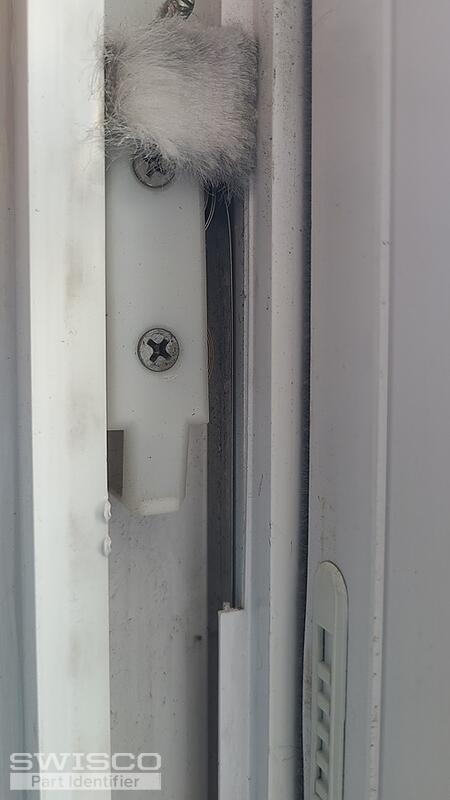

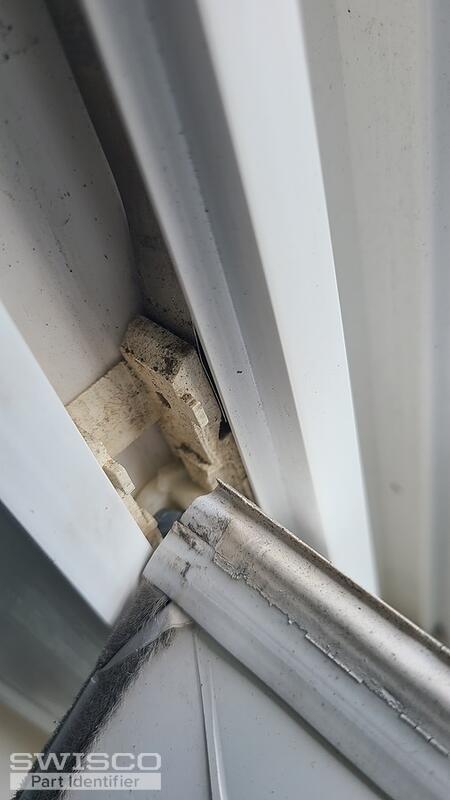

I have a H-LC25-47-x80 tilt window in white. The window slams down. So, I believe it's broken coil balance shoes. Do you think this is the problem? If so, how much are the replacement parts delivered to NJ?
Jim

3 user uploaded images

Tom from SWISCO

Aug 31, 2023 10:41 am

If your windows are slamming down, odds are it's a problem with the coil spring itself. Your shoe doesn't appear to be damaged based on this photo, but you should triple check before you buy anything just to be sure. If you don't see any obvious signs of damage then you probably just need new springs.

With that in mind, I suggest our Series 190. I'm very confident that this will be compatible with all your existing hardware. Your next step will be to check the stamp printed on the old spring to confirm the best weight option. That will require removing the original.
