H-R30 48x80 series 40-17 P.L.# 063-038 Code: Sim 2 Balance Assembly

A home owner from Degraff, Ohio says:
Looking to identify what parts these are to order replacements. No stamping on the plastic cover but coil spring shows a stamp of 407. Looking for the entire assembly.

7/8"W x 1 1/4"D x 3 1/8"H.

Thumbnail of the uploaded file named 20210312_111652.jpg
Thumbnail of the uploaded file named 20210312_111703.jpg
Thumbnail of the uploaded file named 20210312_111641.jpg
Profile picture of Tom
Tom from SWISCO responded:

Looks like you might just need a new pivot shoe. If so, see our 15-192. If you also need the springs then I recommend the Series 170 and Series 171. The video below will show you how these parts work together.

A home owner from Degraff, Ohio says:
Thank you, those are exactly what I needed
A home owner from Degraff, Ohio says:

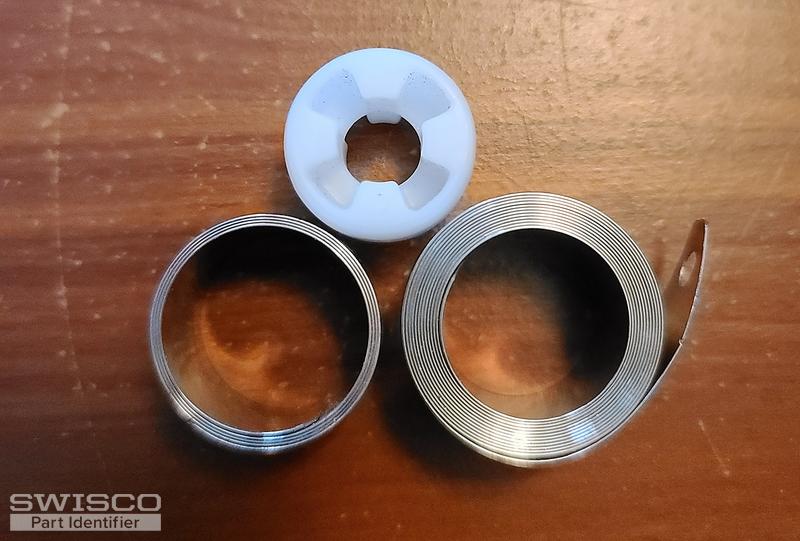

Are there different size wheels that fit inside the coils? I tried to use the old ones and they are too big to fit inside the new coils. The old is about 7/8" but the opening of the new coil is only 3/4". Unfortunately there is too much resistance in the coil to try and pull it all the way open and wrap around it.
Thumbnail of the uploaded file named 20210326_181226.jpg
Profile picture of Tom
Tom from SWISCO responded:

There aren't different sized wheels to my knowledge, but that is evidently the case. You must have a version I'm not familiar with, perhaps an older type used by another window manufacturer.

You could always replace the whole setup with the hardware we showed in that video I posted above. The covers and drums we sell are the 15-156 and 15-157, respectively. Each of these work with one spring.

A home owner from Degraff, Ohio says:
Thank you Tom, I went ahead and ordered these parts.
