HD awning hinge

A quick learner from New Jersey says:
October 22, 2019
5 1/2" upper & lower mounting hole 2" bottom plate with 2 screws 5/8" between screws Length of arms: Top 4" Middle 10" Bottom 4" That's the best I can do

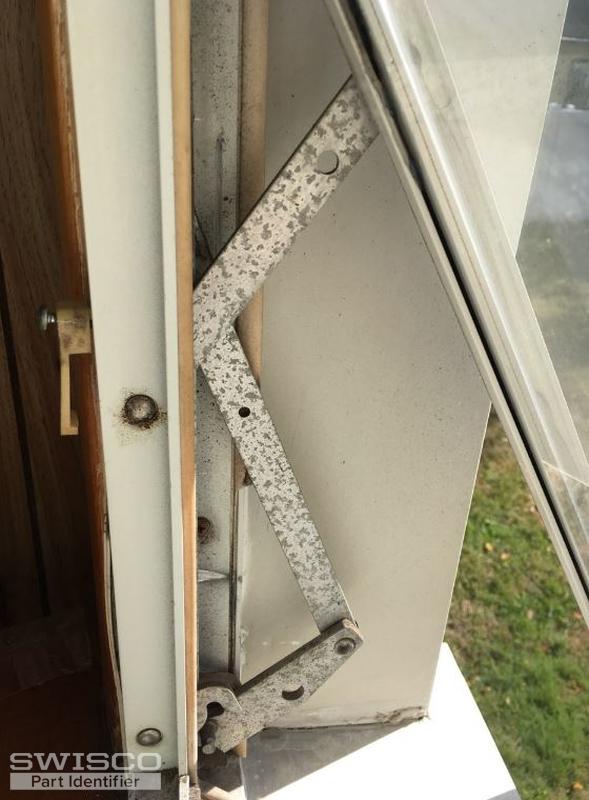

Thumbnail of the uploaded file named Doris 1.JPG
Thumbnail of the uploaded file named Doris 2.JPG
Thumbnail of the uploaded file named Doris 3.JPG
Thumbnail of the uploaded file named Doris 4.JPG

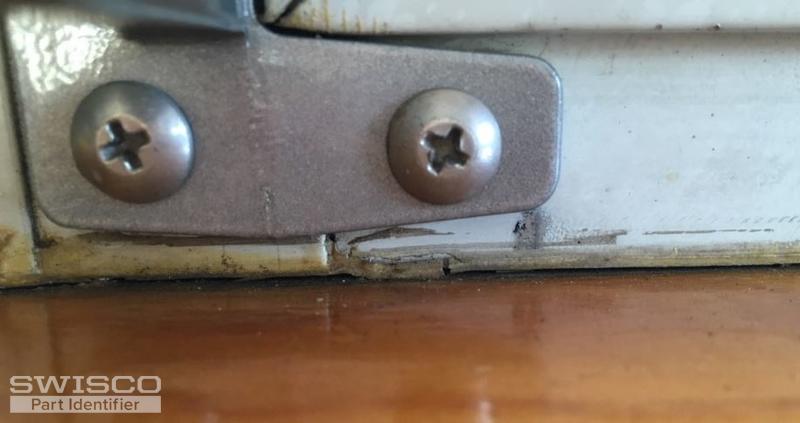

Thumbnail of the uploaded file named Doris 5.JPG
Profile picture of Bob
Bob from SWISCO responded:
October 28, 2019

Thanks for writing in. I'm afraid I still can't entirely narrow down the right replacement awning operators without seeing the link arm, particularly the hole at the end. I have listed a selection of possible replacements on this page; but seeing the link arm will be necessary to narrow things down more. If you need help removing your operator, see the video below.
LH Superior Window Crank
LH Superior Window Crank
39-011
$20.45
RH Superior Window Crank
RH Superior Window Crank
39-012
$20.45
Awning Window Crank Operator
Awning Window Crank Operator
39-025
$27.10
Awning Window Crank Operator
Awning Window Crank Operator
39-026
$27.10
Keller Window Crank
Keller Window Crank
39-060
$19.10
Keller Window Crank
Keller Window Crank
39-061
$19.10
How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
