HG04 2004U

A contractor from Fairview Heights, IL says:
December 7, 2021

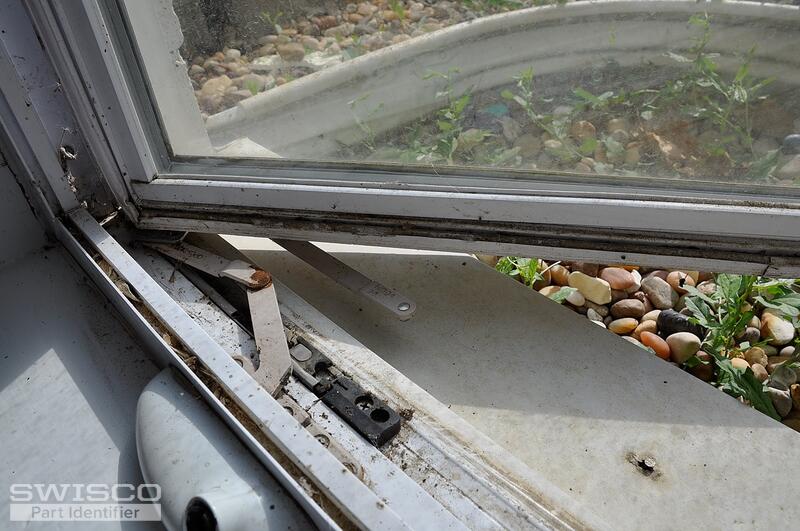

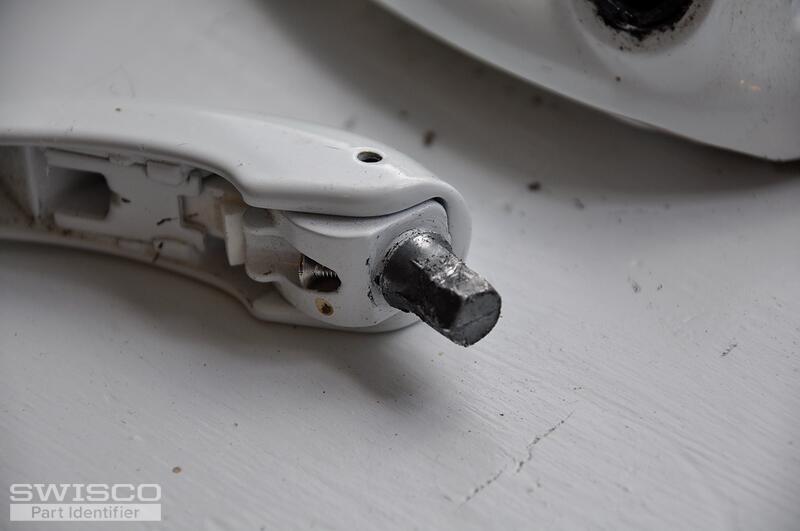

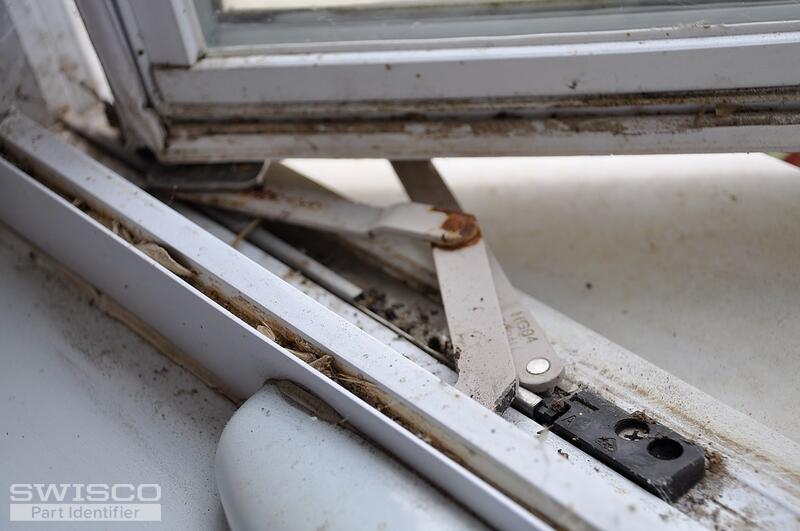

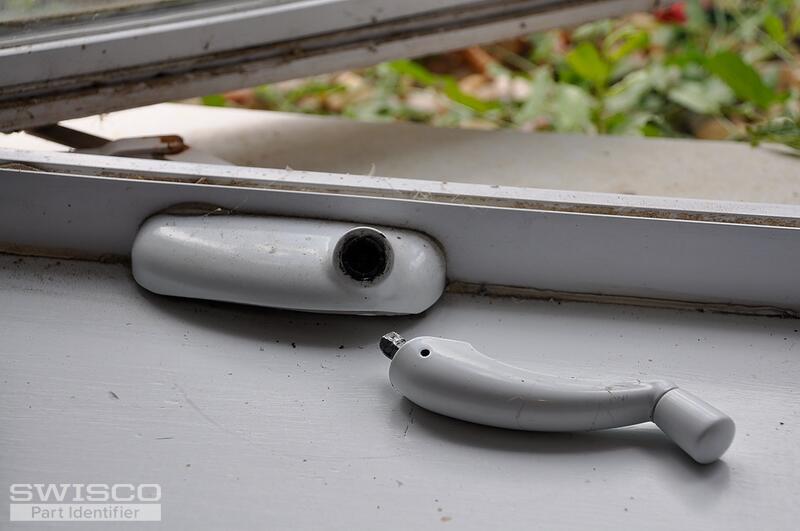

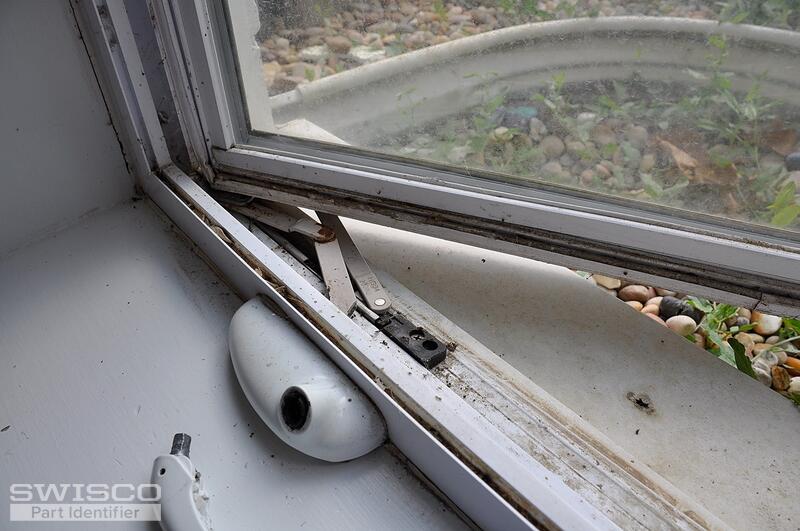

Handle and operator arm broke off casement window. We have no record of the manufacturer of this window, only that we installed it. Without a PO, we can't go back through our vendor to get the parts. The one sticker on the window is illegible/faded.
Thumbnail of the uploaded file named Egre #2ow Windss 193.JPG
Thumbnail of the uploaded file named Egre #2ow Windss 194.JPG
Thumbnail of the uploaded file named Egre #2ow Windss 198.JPG
Thumbnail of the uploaded file named Egre #2ow Windss 199.JPG
Thumbnail of the uploaded file named Egre #2ow Windss 200.JPG
Profile picture of Emily
Emily from SWISCO responded:
December 9, 2021

Hello!

Start by comparing your dimensions to our 39-329 and 39-330 operators, which use the 39-232 handle, to see if this matches up to your original assembly.
A contractor from Fairview Heights, IL says:
April 14, 2022

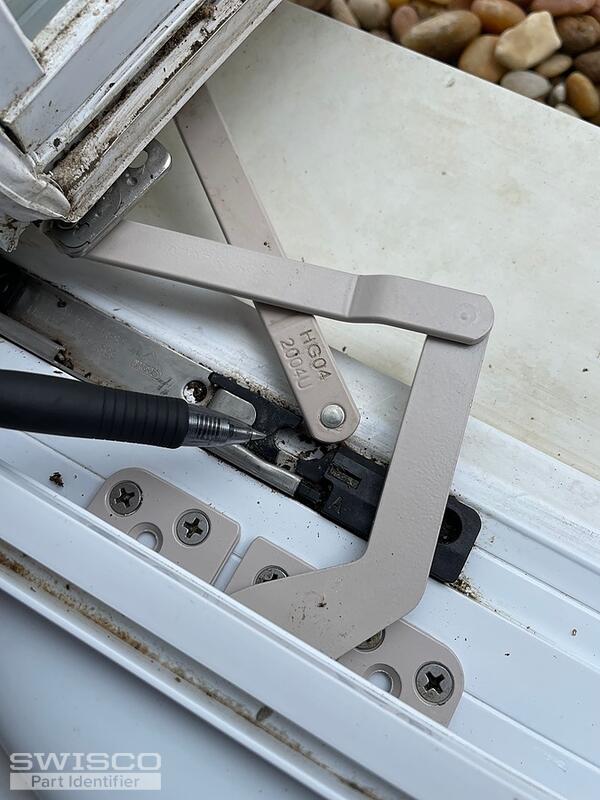

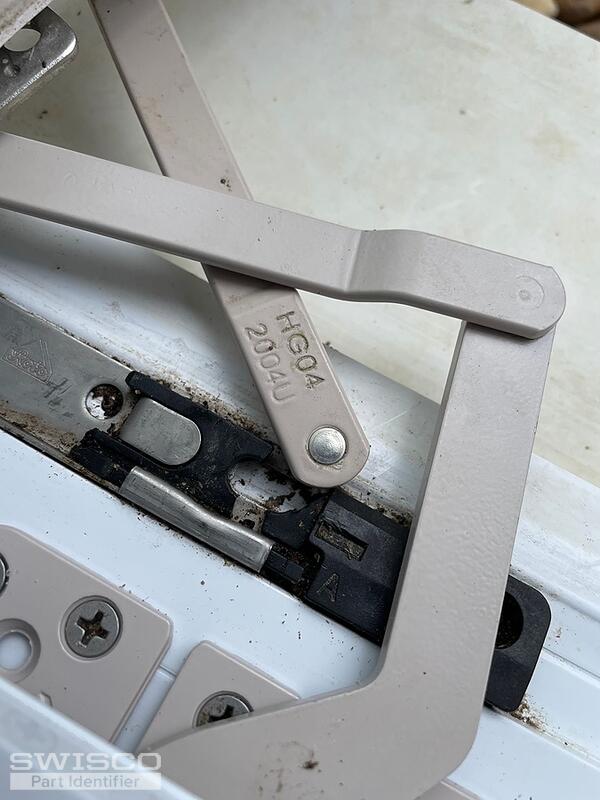

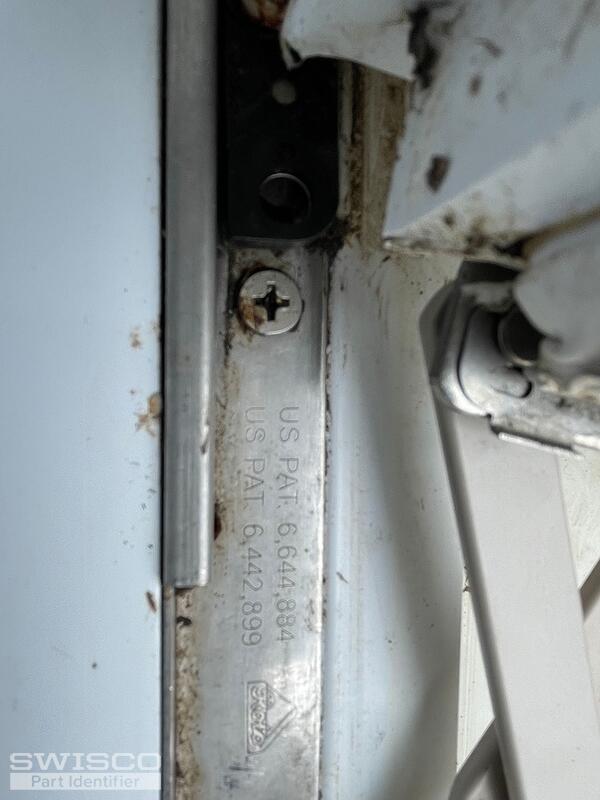

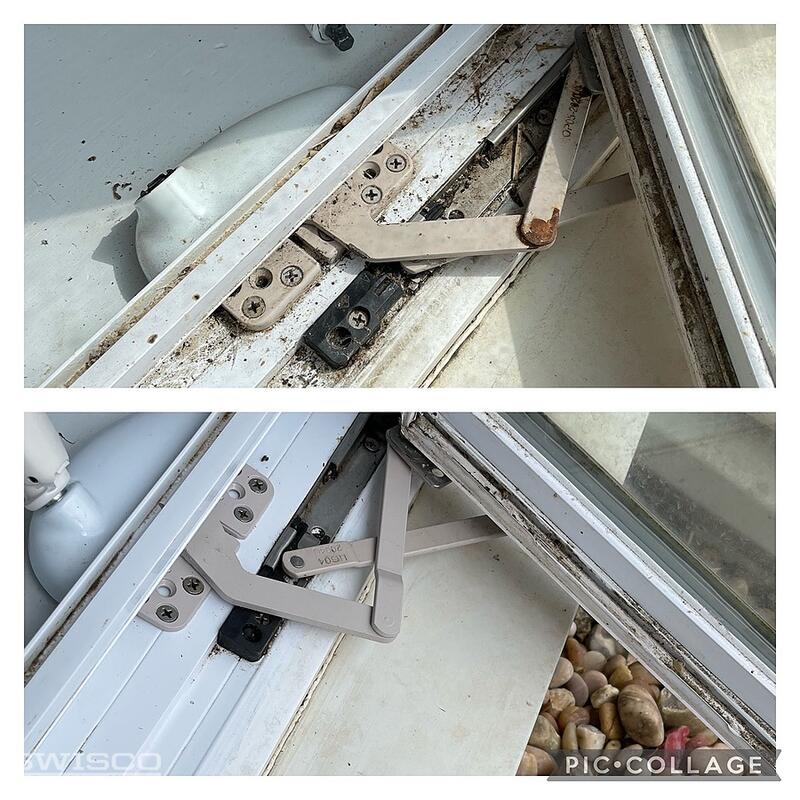

Hello! We were able to replace the ROTO operator, but found at the time the black piece that part of the arm connects to was cracked. Please see attached pictures to see if we can get just the black piece.
Thumbnail of the uploaded file named Casement Window 2.jpeg
Thumbnail of the uploaded file named Casement Window 3.jpeg
Thumbnail of the uploaded file named Casement Window 4.jpeg
Thumbnail of the uploaded file named Casement Window.jpeg
Profile picture of Emily
Emily from SWISCO responded:
April 14, 2022

Hi there!

I'm afraid we don't sell that black piece separately so you'll need an all new hinge. Yours is similar to our 36-048 but compare the dimensions to see what you think. Just make sure to replace the top and bottom hinges at the same time.
