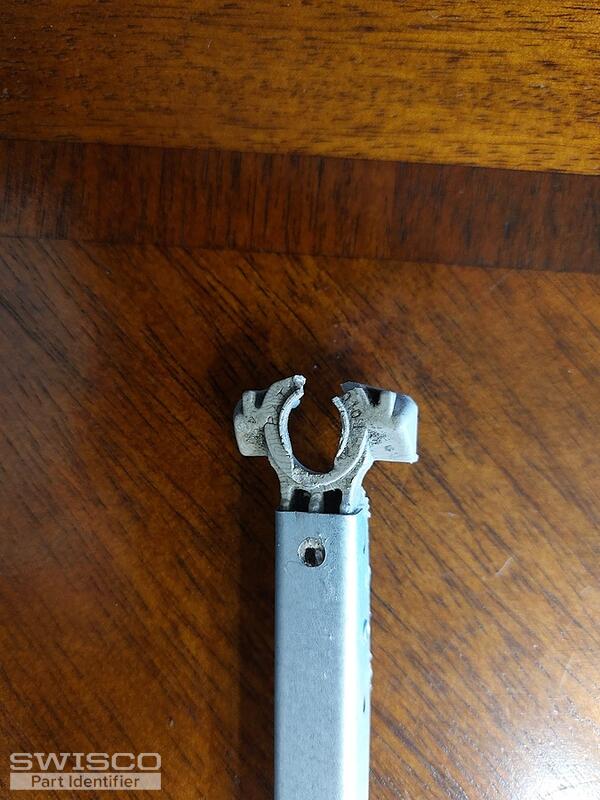

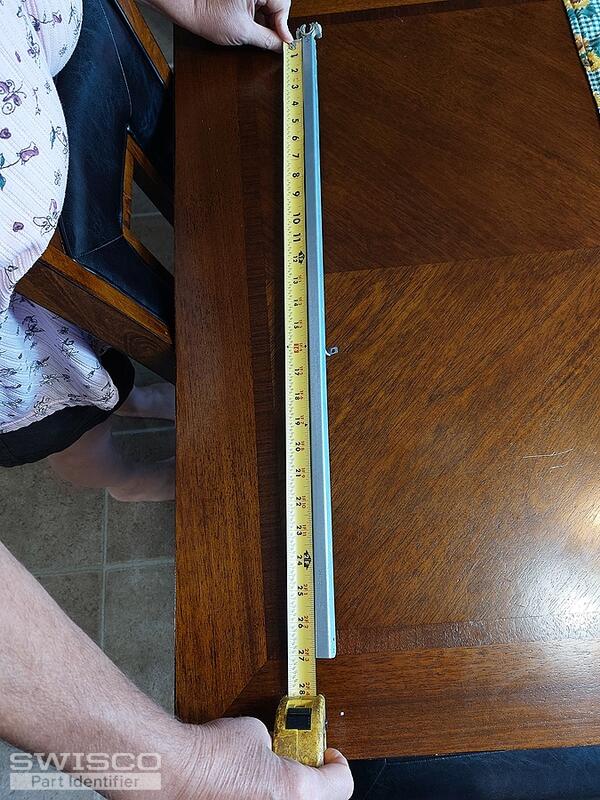

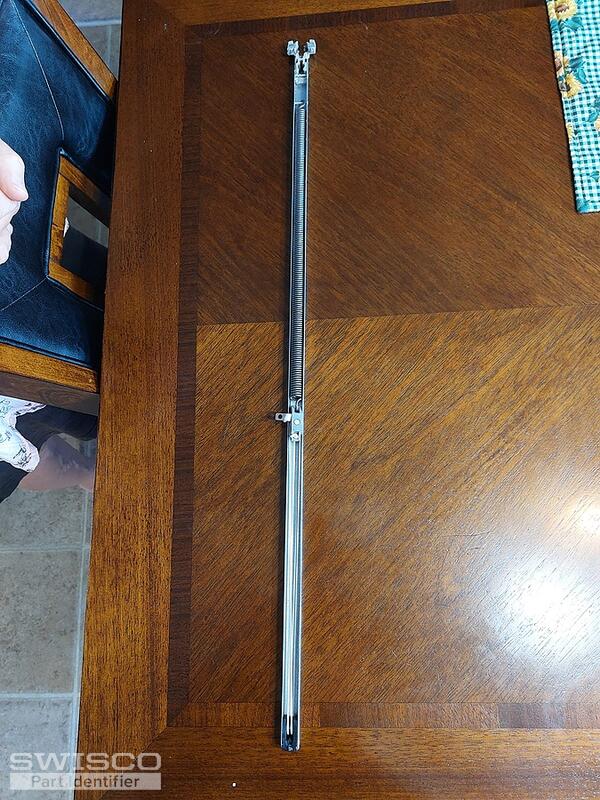

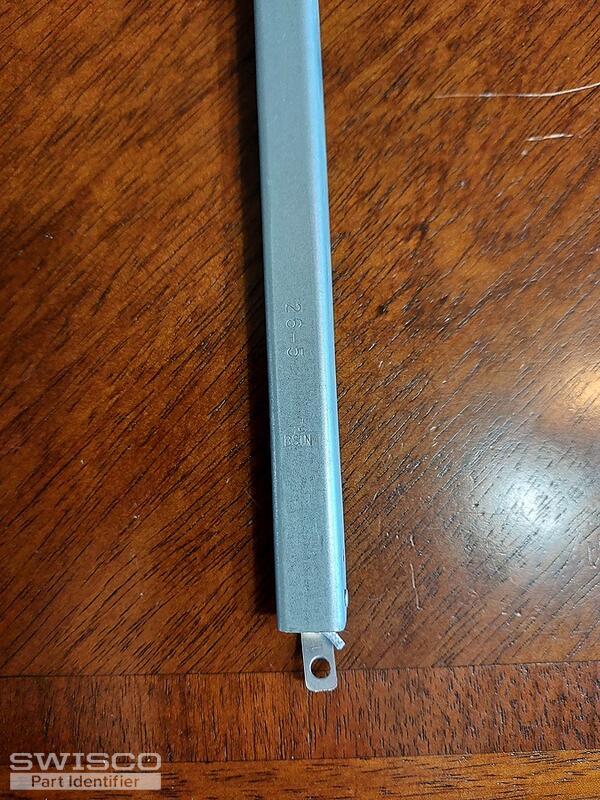

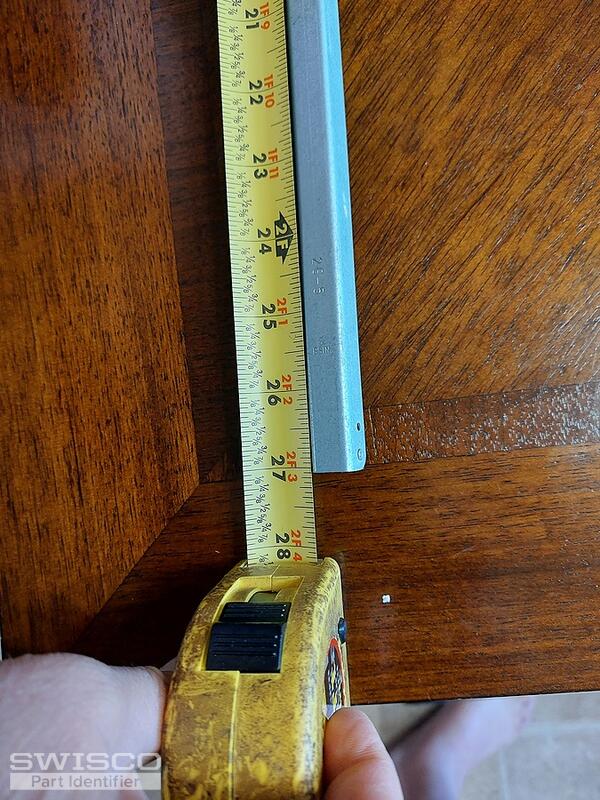

Found the following identifying numbers on the balancer.
26-5
TH
BSIN
Home was built in 2008 by Maronda Home in Franklin Ohio. White vinyl windows and sash weighed 24 pounds.
Thank you for helping identify this part.
Randel
Hall Window Balancer
Quick Learner from Franklin Ohio
Jun 12, 2023 10:18 am
5 user uploaded images
4 Replies
Tom from SWISCO
Jun 12, 2023 1:44 pm
Hello, Randel. Your balance appears to be a close match to our S795-27. The only thing I'm not sure about is the stamp. Our balances use a slightly different rating system compared to yours. The old "26-5" stamp may match our modern "27E," but I suggest that you weigh your sash on a scale to verify. You can see a chart on the S795-27 store page that tells you exactly how much weight each option carries.
Quick Learner from Franklin Ohio
Jun 12, 2023 6:33 pm
Thank you ... the sash weighted 24 pounds so appears that S795-27D would be a good replacement.
Tom from SWISCO
Jun 13, 2023 9:14 am
Perfect! I'm glad you checked. The installers must have only had the stronger spring option on hand and installed that anyway. If you ever noticed that your windows were a little too tight to close, that's the reason why. 27D should be perfect for a 24 pound sash.
