Hand crank for 60+ year old house

Start a new Discussion

Quick Learner from USA

Apr 24, 2025 10:19 am

Hand crank for 60+ year old house.
Thank you.

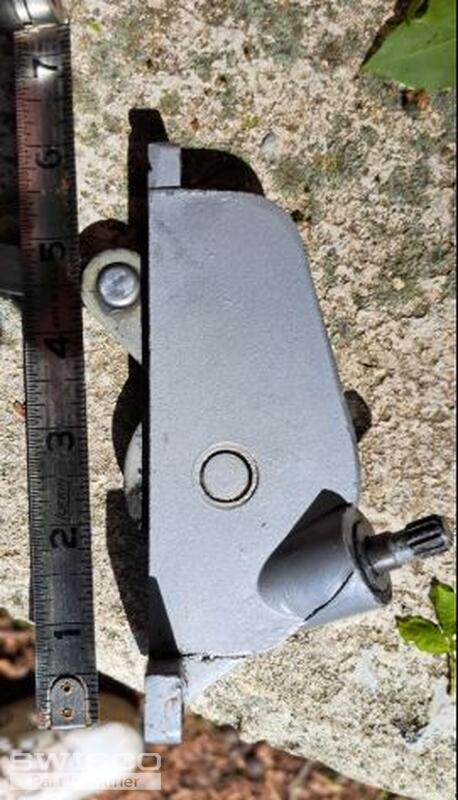

4 user uploaded images

8 Replies

Casey from SWISCO

Apr 28, 2025 4:12 pm

Hello,

We'd be happy to help but it's tough to make out the details of your crank arms. If you could show us an unobstructed view of the arms extended from the base, as well as write out the exact diameter of the hole at the end of the link arm, that would help us narrow down your options. Thank you!

Quick Learner

Apr 30, 2025 4:05 pm

60+year old window

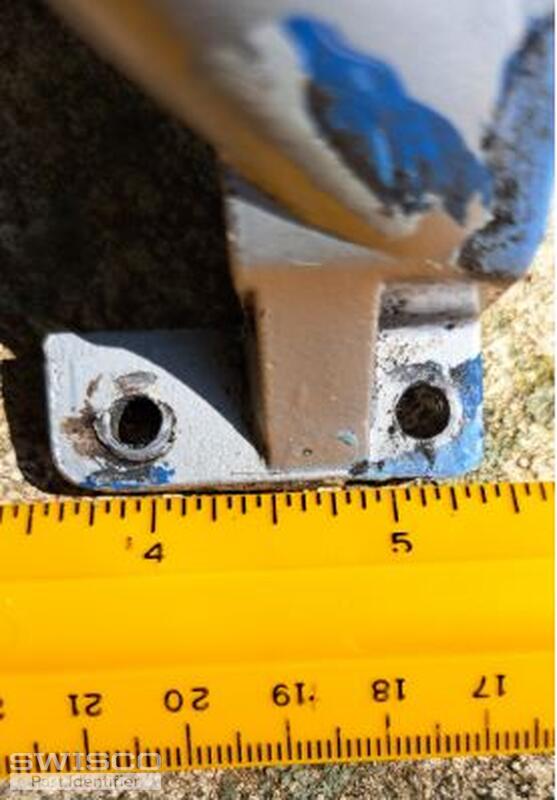

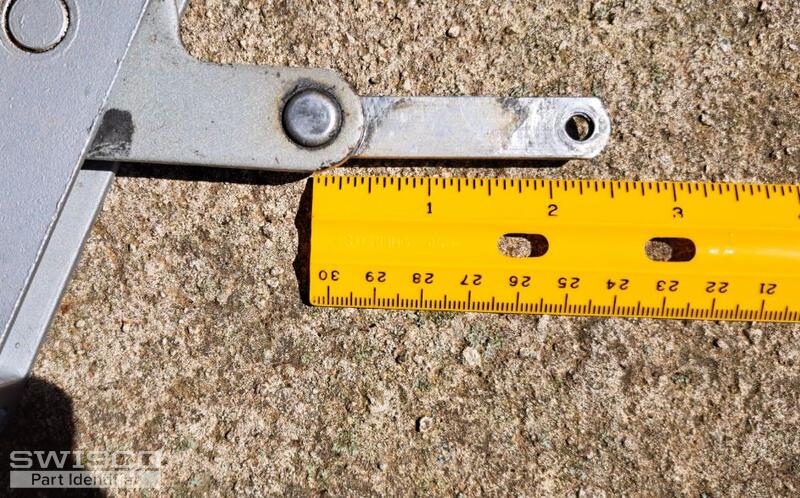

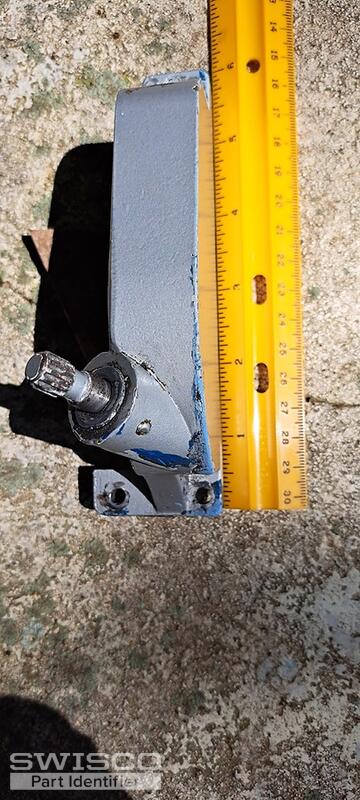

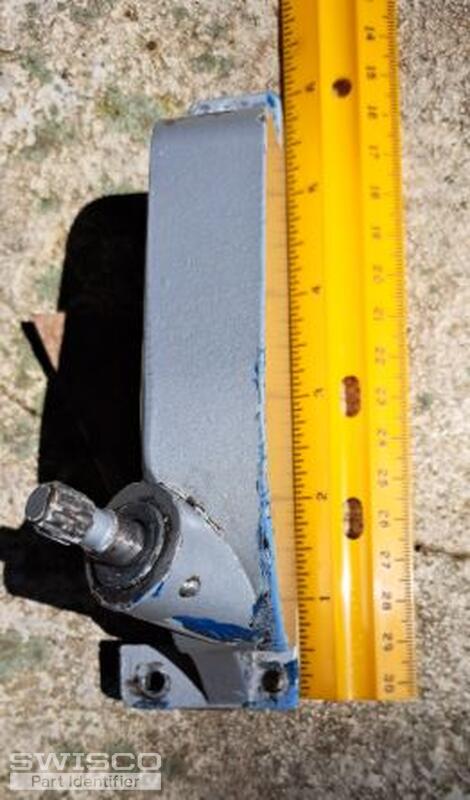

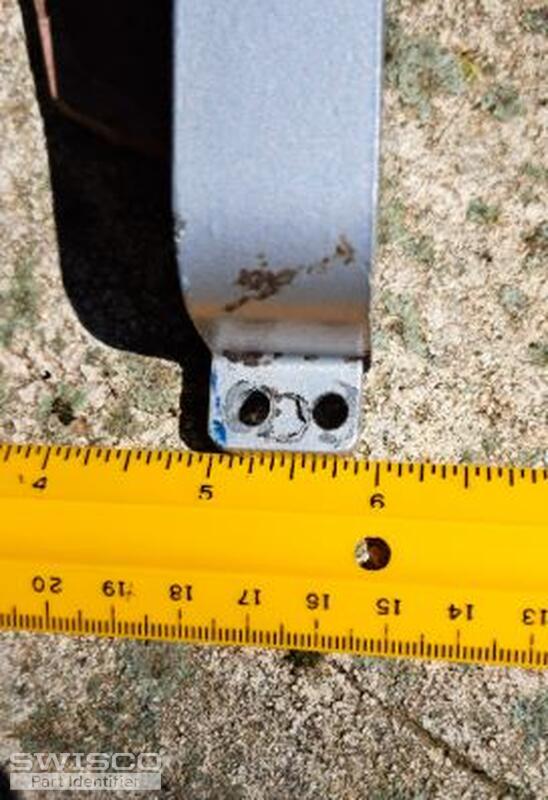

5 user uploaded images

Quick Learner

Apr 30, 2025 4:23 pm

Here is the screw

Quick Learner from GA

May 2, 2025 11:22 am

I thought that I had sent some other pictures. I may be wrong though. Do you still need some more pictures? Have these requests been fulfilled? " If you could show us an unobstructed view of the arms extended from the base, as well as write out the exact diameter of the hole at the end of the link arm"
Shawn

Casey from SWISCO

May 2, 2025 4:01 pm

Hello,

We've related a few similar box-style awning operators on this page for you to review. Take a look and compare the specifications shown on our product pages to your assembly. The installation hole spacing and diameter of the hole at the end of the link arm are key factors. If none are an exact match, please get back to us with your dimensions written out and we can go from there. Thank you!

Quick Learner from GA

May 14, 2025 3:15 pm

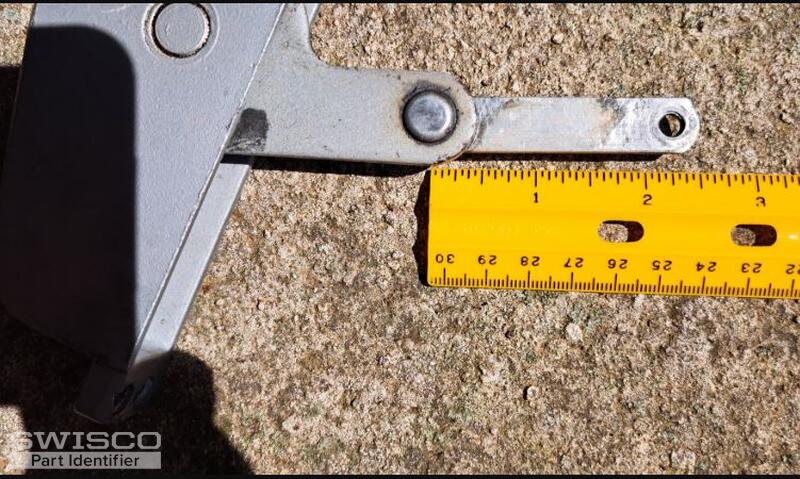

The diameter of the hole is is 1/4".

1 user uploaded image

Casey from SWISCO

May 14, 2025 3:36 pm

Unforutnately, we do not carry an awning operator like yours with a 1/4" diameter hole at the end for the link arm. I'm sorry we won't be able to supply a closer match but please let us know if you have any other hardware questions.
