Handle change - Simonton Screen Doors

Contractor from North Carolina
During a replacement of the existing Simonton sliding screen doors, we noticed a significant change in the handle and locking mechanism. The old one - see pics - was easy for children and those with limited dexterity to open and close the door. The new design of door is more slender and the handles are now recessed flush inside the frame. It's difficult to open and close as well as putting pressure on the screen with your hand. Is there a retrofit for this door, or replacement handles that are no more than 9/16" deep (at the "L") to pass between the doors? The holes are 5" O.C. for the new latch.

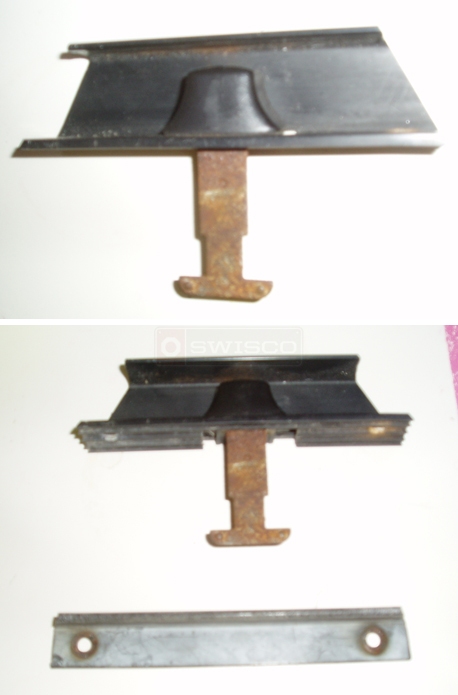

User submitted photo of their latch.
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert
The closest match we have is our 83-034, though the hole spacing is 3-1/2". Could you still use this as a replacement? The handle sticks up, allowing you to grip it.
Contractor from North Carolina
Tom, That's a closer match to the old style - the 11/16" depth may be too deep. We are thinking about the retrofit to place something over/under the current screws, so the 5" O.C. becomes important. Maybe it's time to get out the 3D printer :-) One of the great things about Swisco is the detail in the product images - dimensions and all. Makes it easy to find things and judge whether they will work. Thanks, P. p.s. With latches/levers prevailing in door hardware, you have to wonder why they chose to go flush.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert
Hello, hopefully I can help, as well. We also carry another handle that was used by Care Free. It looks closer to your latch, but from what I remember the metal locking part was not as long as the original lock. See our 84-223. We also carry a surface mounted universal type patio screen door lock. Not sure if it will work on your door, it may be worth considering. That would be our 83-006.
Contractor from North Carolina
Dave, Thanks for jumping in on this one. I think I will go with the 84-223. It's close enough to the old design that I may be able to come up with something with a slight mod of your parts.
