Handle for shwinco patio door 9700 series

A home owner from Bunnell, FL 32110 says:

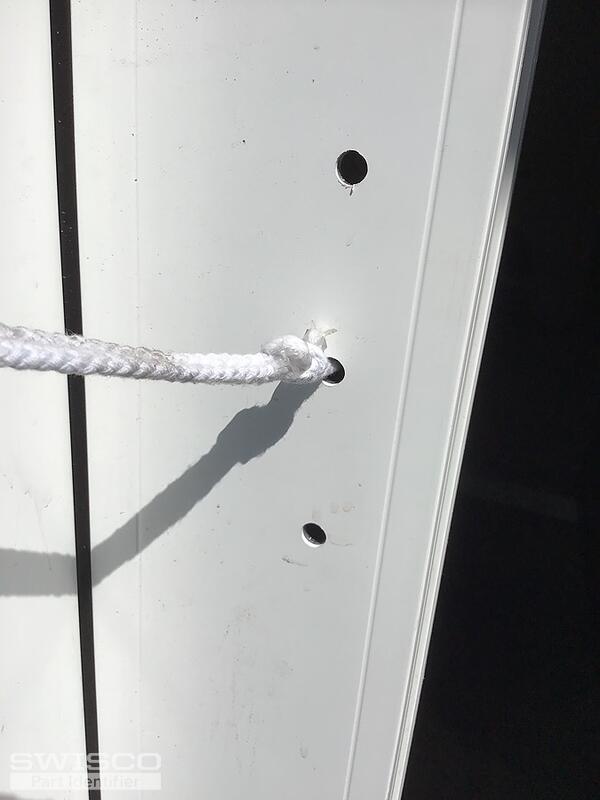

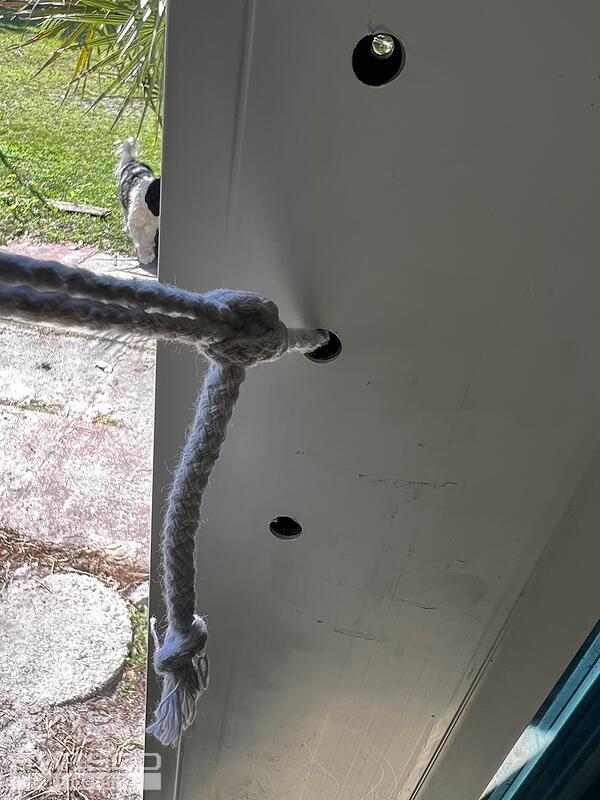

We bought this door without a handle. We would like a keyed handle.

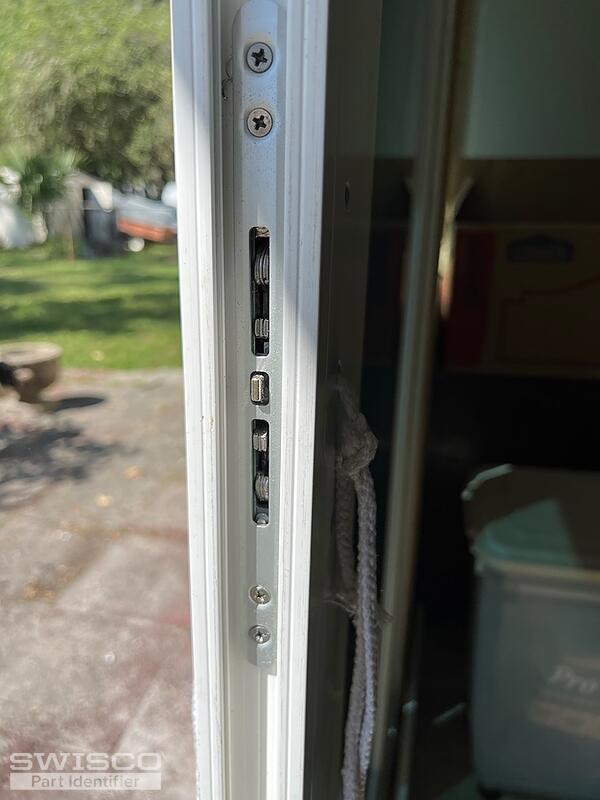

Our door is 1-3/4" thick. It has the latch in the door, but we have no other parts.

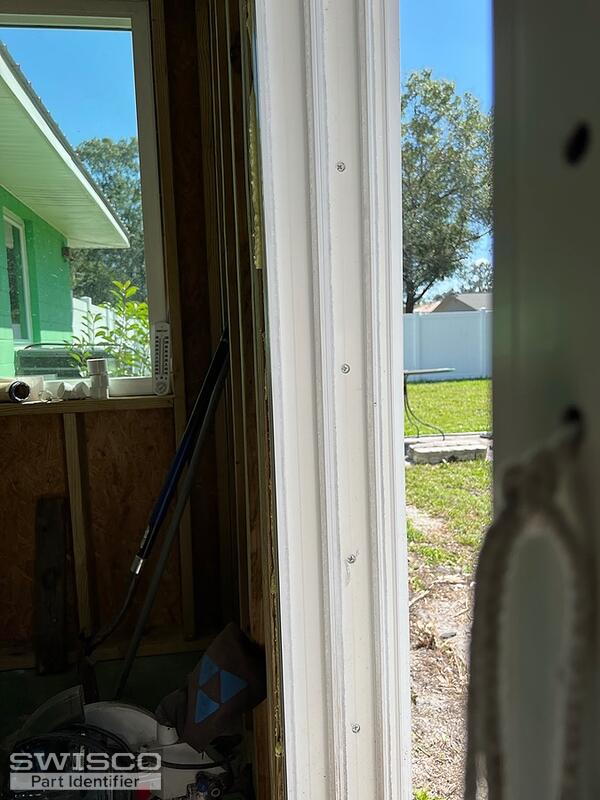

There is nothing to latch the door into.

Please let us know what parts we need to make this door work.

Thank you,

Jim & Sue Ellen

Thumbnail of the uploaded file named 4C3057D8-DCC3-49D1-B6CC-D6742D602335.jpeg
Thumbnail of the uploaded file named A01CD440-EEBB-4462-9846-CA2A95122984.jpeg
Thumbnail of the uploaded file named 0B59B0EA-EE88-49CE-A7CA-6FDB6A5211C6.jpeg
Thumbnail of the uploaded file named 46EB71DD-7057-48B3-BC7F-0C9EA9D5D8ED.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

It appears your mortise lock is a match for our 82-238 which is compatible with the 82-081 keyed handle set with 4-15/16" hole center spacing. For a new keeper, see our 89-030 or 89-036. Review the dimensions for these parts and compare them with the space available in the door to see what you think.
