Handle for sliding glass door replacement

Home Owner from Yea, SD
Jun 24, 2021 8:12 pm

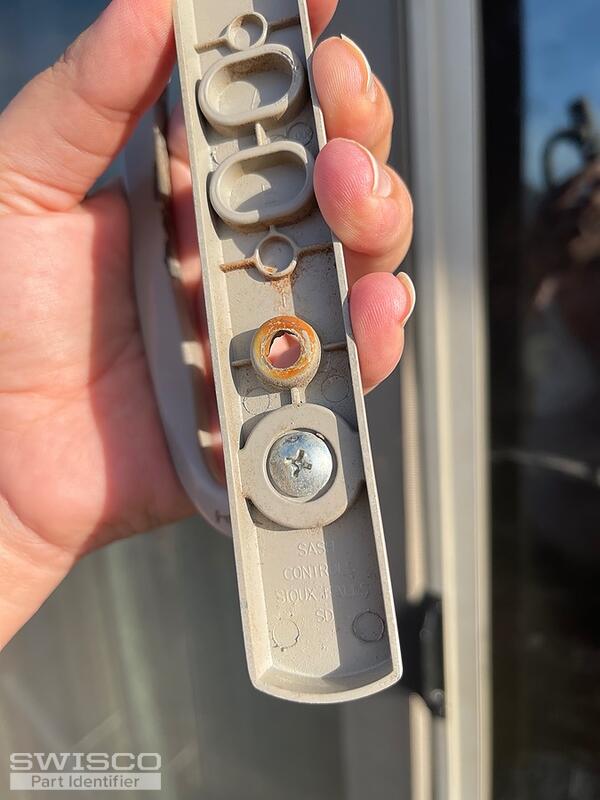

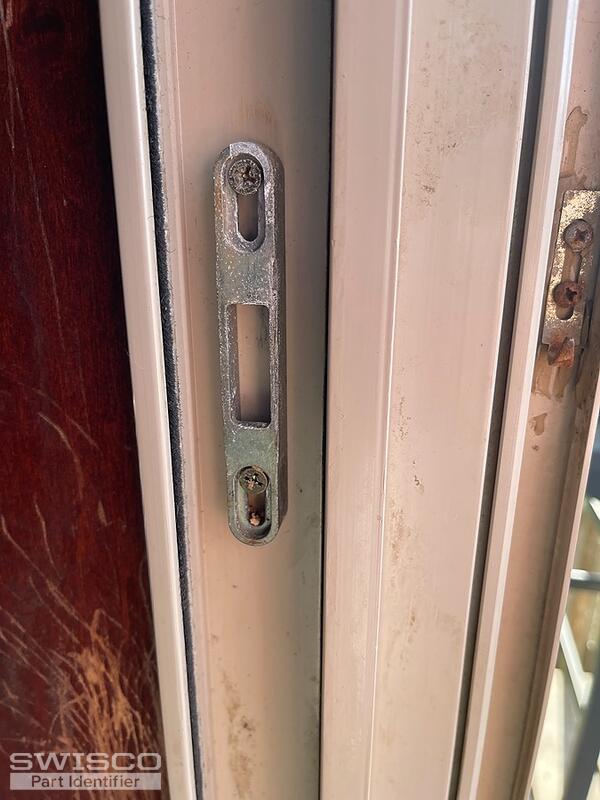

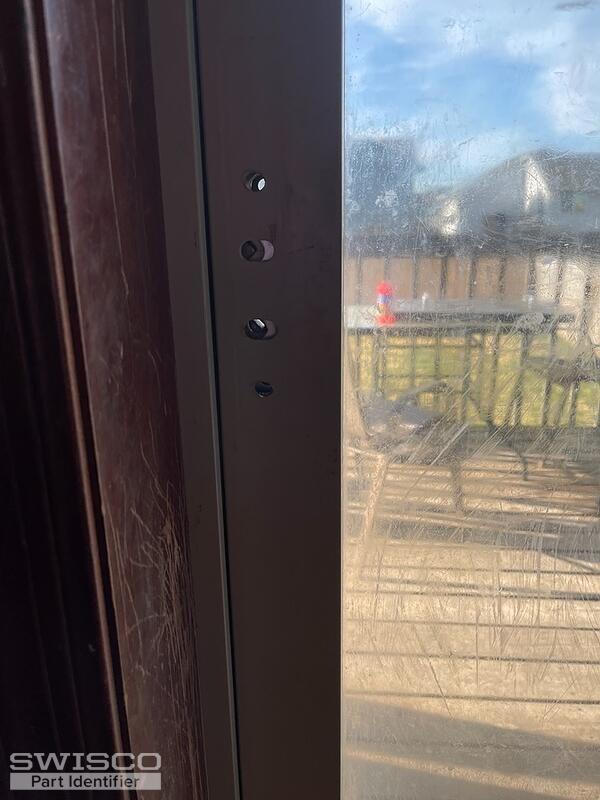

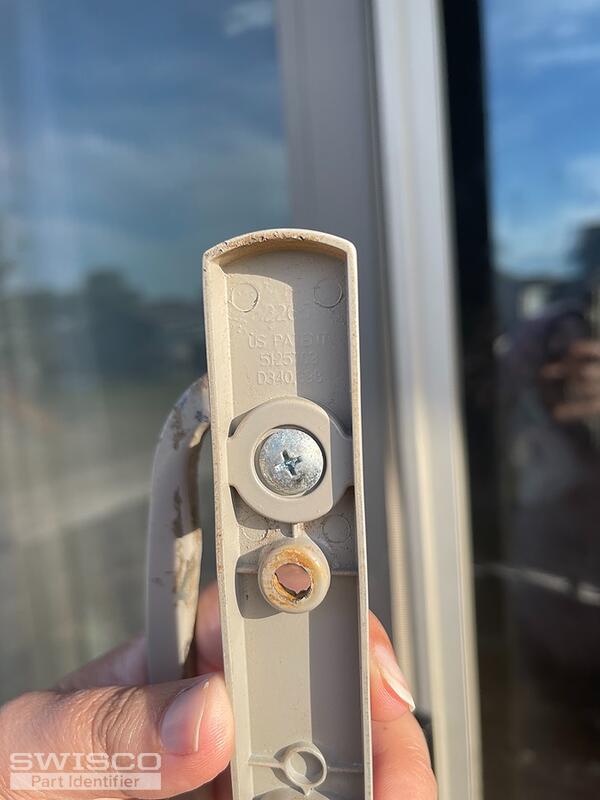

I need to replace my l sliding glass door handle- the lock didn't work and the handle fell off.

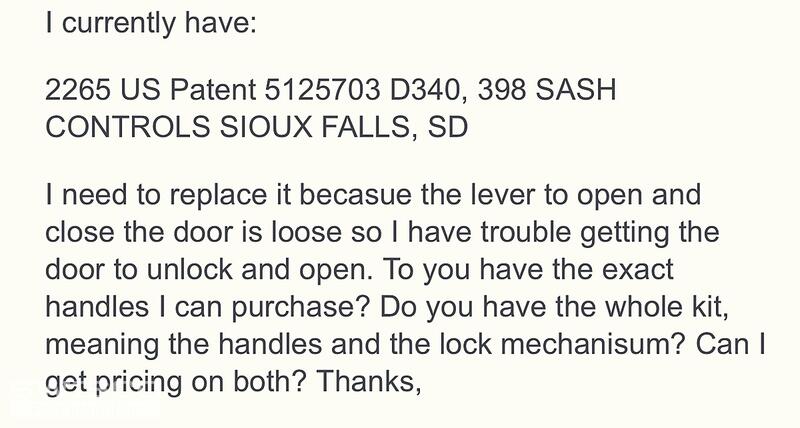

Here is the information:
2265
US Patent
5125703
D340,398
952EE881-044E-4237-8A46-205329F5697D 01198BC0-8682-46B2-A7F1-438906A594FC D722DC37-9543-4364-82F2-B2FCCE318CD6 DC0AB55F-7A1E-4FD6-9D0A-FC0419FCF472 AC74FCFC-531D-498F-A3BF-542A0ECDF1F1
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Jun 28, 2021 11:15 am
SWISCO
EXPERT

Hello!

Take a look at our 82-086 keyed handle set with a 3-15/16" hole spacing. Carefully review our dimensions and compare them to your current hardware to see if this matches up for what you need.

If you need a new mortise lock, we'll need to see some pictures of that as well.

Home Owner from Tea, SD
Jun 28, 2021 4:03 pm

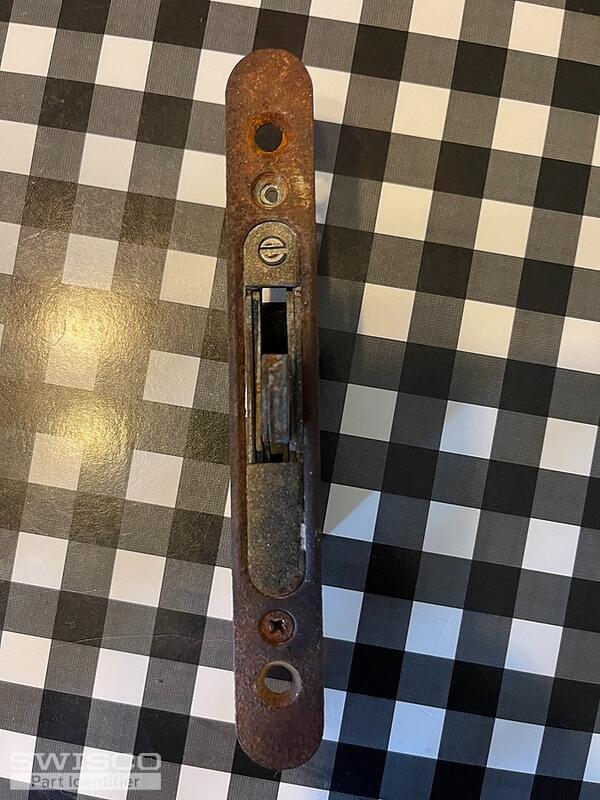

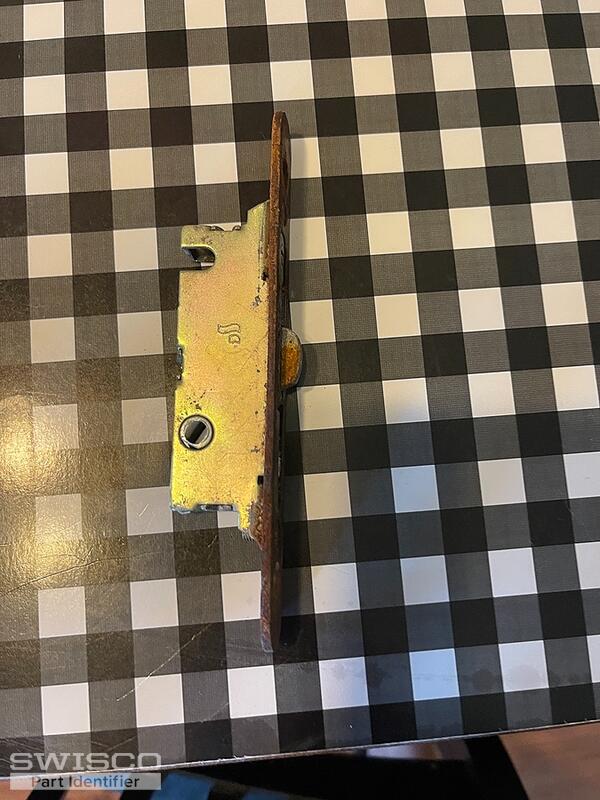

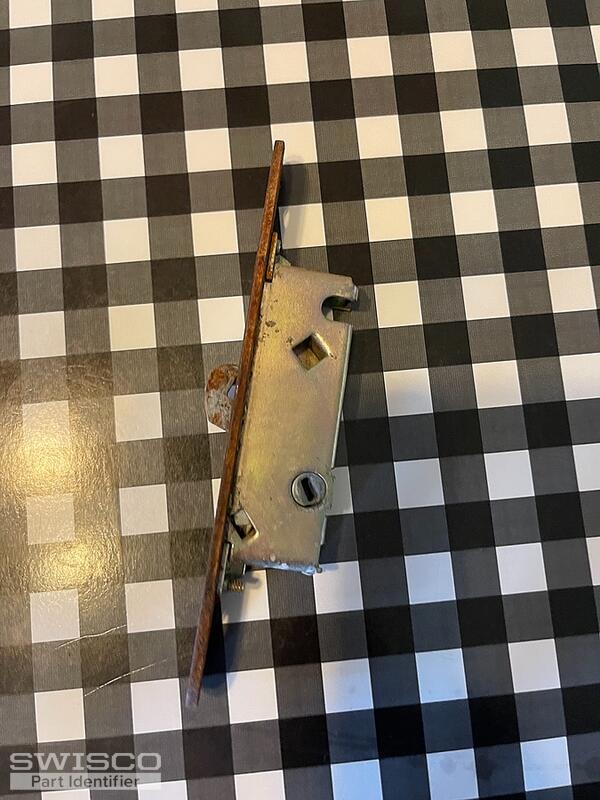

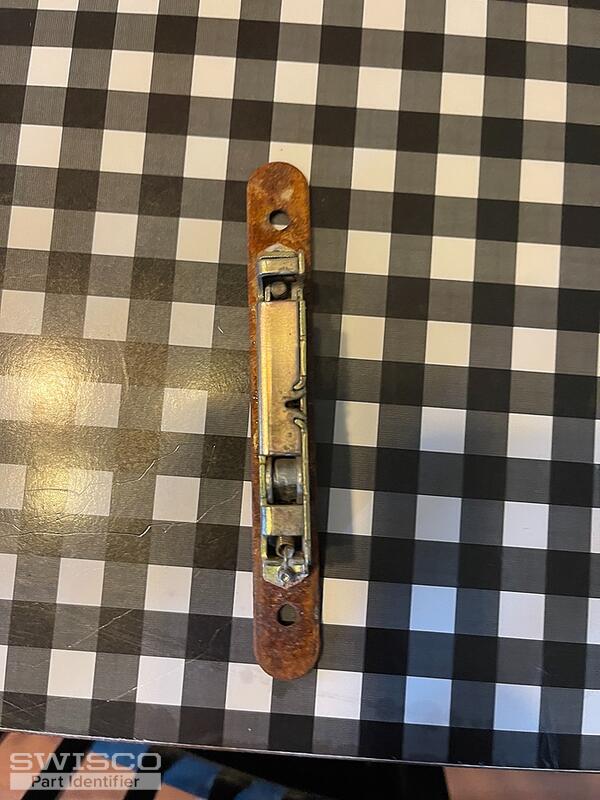

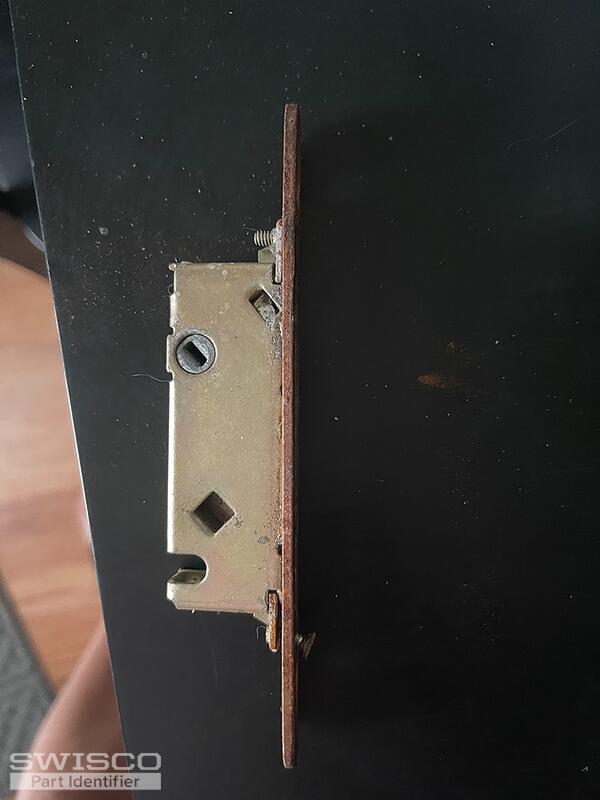

Here are the pictures of the mortise lock.
3DBF72F5-CF1C-42FB-BACB-AE827BB273F5 B62E479A-AB9B-42FE-BD39-75D6619F5036 6ED13C86-3F55-4BCD-9F82-0B3C3FB293FD F5B037B6-673A-4A3B-A215-C00F8B83C1C1 CF82F768-45B5-4CEA-B06D-1308786D551A
5 user uploaded images
Emily
Emily from SWISCO
Jun 29, 2021 8:30 am
SWISCO
EXPERT

Great! Start by comparing your dimensions to our 82-226 mortise lock and see how they match up.

Alternate image for 82-226
Alternate image for 82-226
