Handle replacement by Sash Controls Inc.

Quick Learner from IN

Apr 21, 2020 11:12 am

Handle kit needed. Sash Controls Inc. Number on inside of outside handle.
1963 1
Can't move the door at all. Door is in closed position. Need advice on how to open door in order to replace handles.

3 user uploaded images

6 Replies

Tom from SWISCO

Apr 22, 2020 1:39 pm

Hello! Your handle set closely resembles our 82-035. Please look it over and let me know if you agree.

Quick Learner from IN

Apr 23, 2020 9:29 am

82-035 is good. Still need to be able to open slider to replace handles.

Tom from SWISCO

Apr 23, 2020 10:55 am

Oh, I'm sorry for overlooking that detail. I was so focused on your photos that I just glossed over that.

There could be a lot of reasons why your door is stuck. The most likely culprit is a broken mortise lock. Now that the handle is removed, you could try to see if you can throw it manually with a screwdriver. If that doesn't work, however, then it will make things a lot harder. You'll need to cut the mortise off the door in order to open it again. This is an extremely difficult project and I highly recommend contacting a local professional to come out and do it for you.

Quick Learner from IN

Apr 24, 2020 4:49 pm

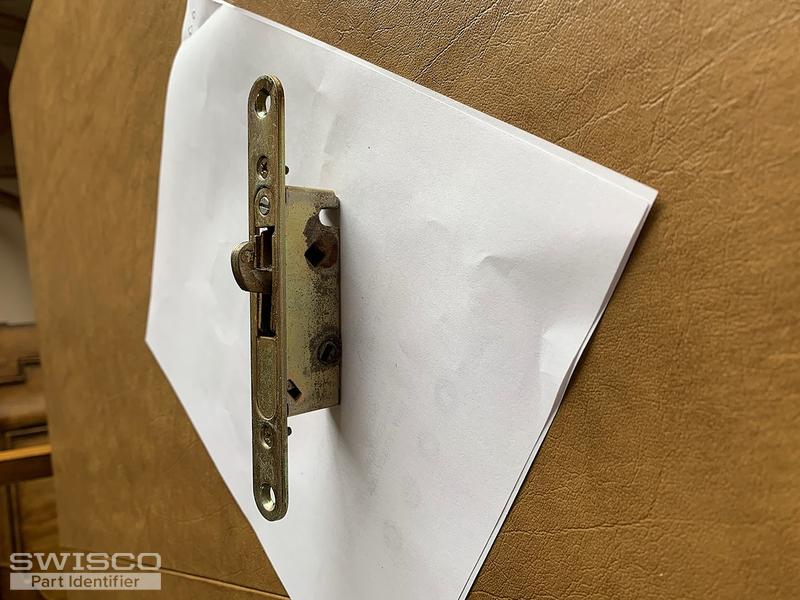

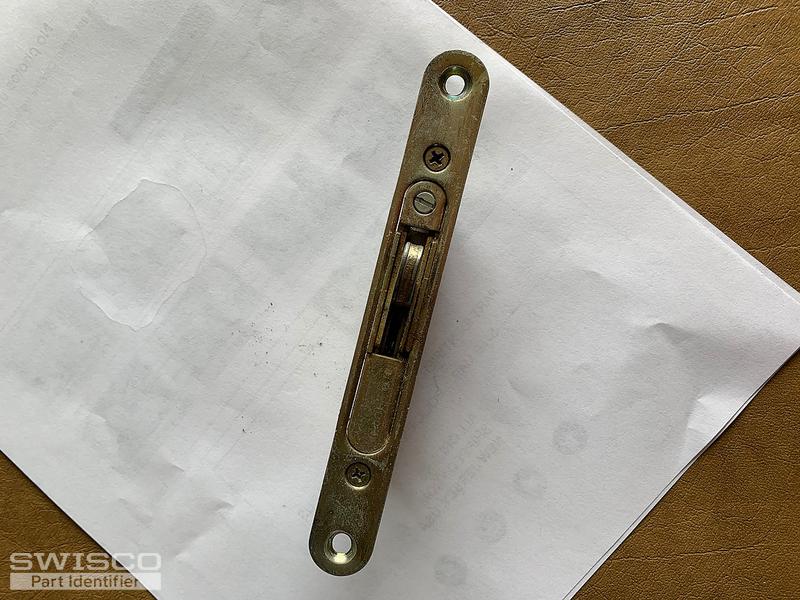

I do believe the handle I need is 82-035 BRONZE. I also need the mortise lock that works with 82-035. I attached pic of the old mortise from lock.
Please advise what to order so all works well together. Thank you.

2 user uploaded images

Tom from SWISCO

Apr 27, 2020 8:35 am

I'm glad that you were able to get the mortise out! Based on these photos, I think our 82-227 is the best option in our inventory. I would just check the installation hole spacing to confirm that it's the same.
