Handle snapped off of door

Home Owner from New York

Sep 16, 2018 8:13 pm

Hi! My handle snapped off and we need to replace it. The pictures don't look exactly like what we have and I don't want to purchase the wrong item. Would you be able to help me? Here is a picture of the product code sticker on my sliding glass doors.

Thank you.
Jaimie

1 user uploaded image

8 Replies

Tom from SWISCO

Sep 17, 2018 8:18 am

I'm afraid I cannot determine what you have from this sticker. Do you have any of the handle left over? If so, seeing a photo of it would be a huge help. At the very least, I'd like to see a picture of where it installs. Please also tell me the distance between the two installation screw holes, center-to-center.

Home Owner from New York

Nov 7, 2018 6:21 pm

Here is a picture of the handle.

1 user uploaded image

Tom from SWISCO

Nov 15, 2018 9:07 am

I can't be 100% sure, but it looks like that lever is a match for our 82-240. This is specifically made to go with our 82-080 handle set. Could this be what you need? Look it over and see what you think.

Please note that the 82-240 comes with the 82-080 set, so you don't need to purchase both if that's what you happen to need.

Home Owner from New York

Dec 2, 2018 10:34 am

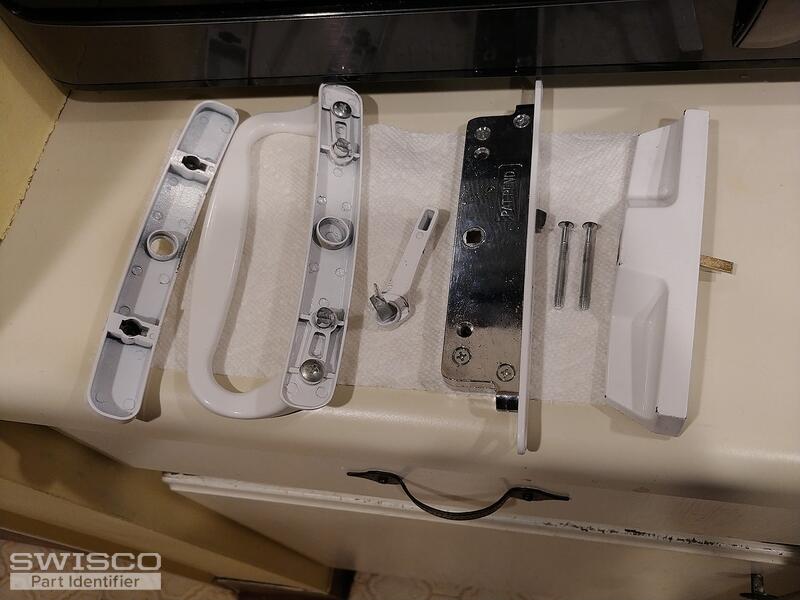

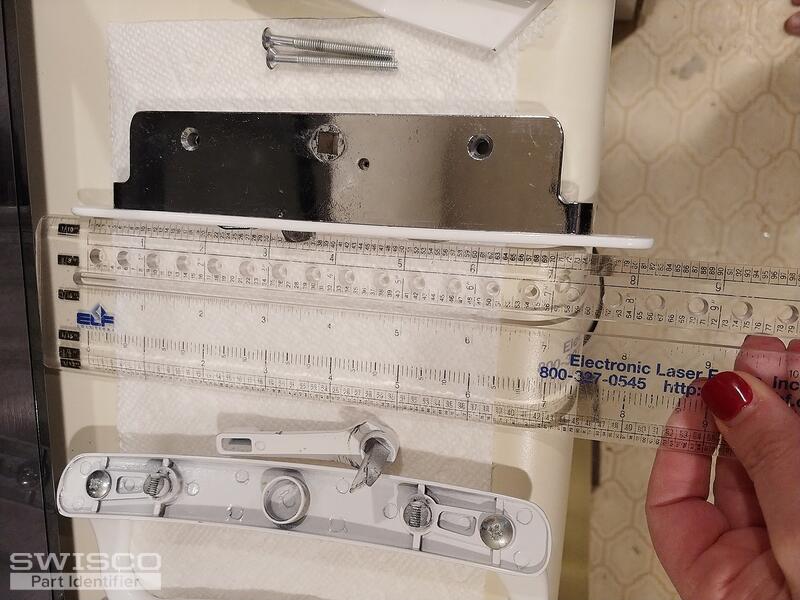

Hi Tom! I think that one is to short. I attached some pictures with a rikee next to it. I really appreciate your help.

Thank you
Jaimie

4 user uploaded images

Tom from SWISCO

Dec 4, 2018 9:52 am

Well, our 82-081 is keyed like yours, but this is pretty much the same as the 82-080 except that it has a key lock. When you say that the 82-080 is too short, can you tell me in what way? Reviewing your pictures, I don't see any reason why it won't work.

Home Owner from New York

Dec 4, 2018 10:04 am

I could be wrong but I believe our lock was around 7 inches and the handle is 4 15/16. Will they work together? I thought they had to be the same size. You have been very helpful and I appreciate it.
Thank you
Jaimie

Tom from SWISCO

Dec 4, 2018 3:36 pm

I'm still not sure what measurement it is you're referring to. Are you talking about the overall length of the handle? If so, that doesn't matter. The hole spacing is more important. Ours is 4-15/16", too, so as long as they're the same then they should match.
