Handle and mortise lock

Question

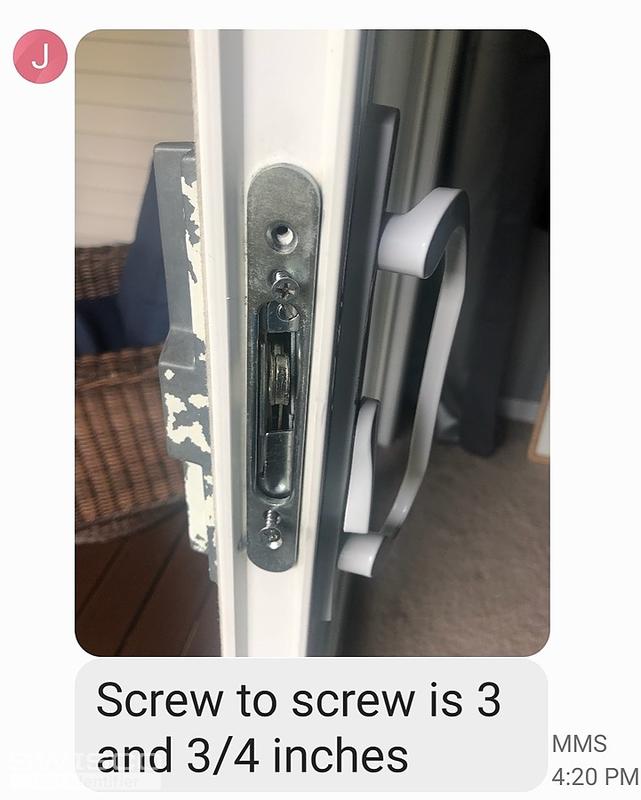

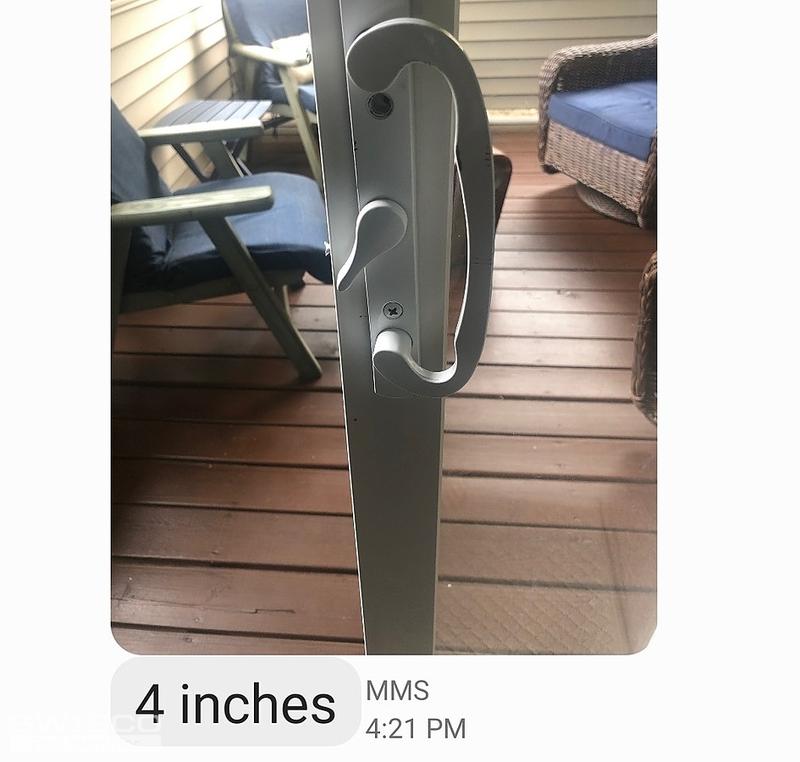

Hi - need some help ordering the correct handle. This is a keyless door. I ordered (1) 82-089 : Legacy Handle Set, 3-15/16" (1-1/8" to 2-1/2"), but the hole do not seems to line up. Also, the mortise lock fell into the patio door. I need the correct handle and lock for the door and any other parts required for this set up. Hopefully these pics are helpful.

Tom · Accepted Answer

It looks like your thumb lever is centered while the thumb lever on the 82-030 is offset. That would explain why it didn't work.

You should consider our 82-030 instead. This is more or less the same kind of handle set but with an adjustable thumb lever that can work in any position.
