Harcar 3X5 horizontal sliding window 50/50

A quick learner from Tampa Florida says:
Need 2 each
Corner connectors
Roller assemblies
Thumbnail of the uploaded file named IMG_20200801_133945446.jpg
Thumbnail of the uploaded file named IMG_20200801_132317339.jpg
Thumbnail of the uploaded file named IMG_20200730_171516145.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I don't recognize either the corner or the roller. I will need detailed dimensions of each. For the corner especially, I need to know the width and thickness of the legs.

A quick learner from Tampa Florida says:
I made the corner from some high density polyethylene.
But I still need the roller or roller and carriage.

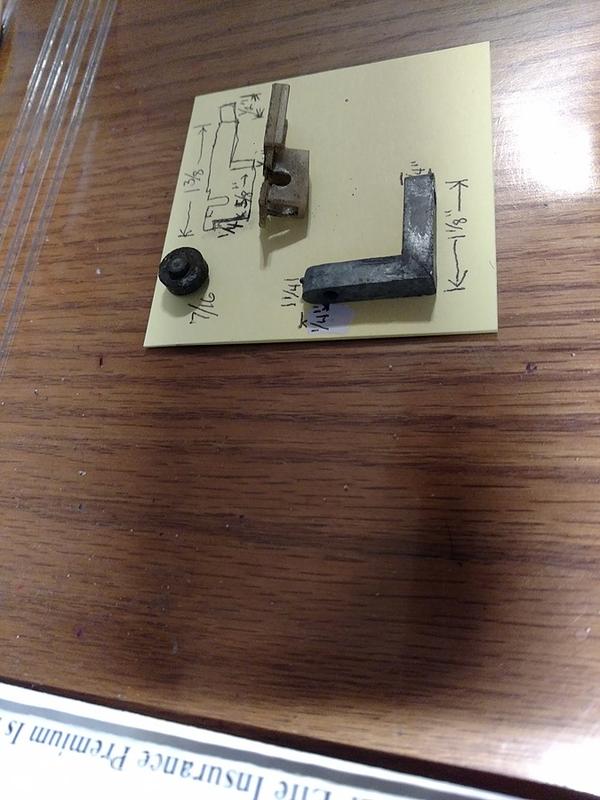

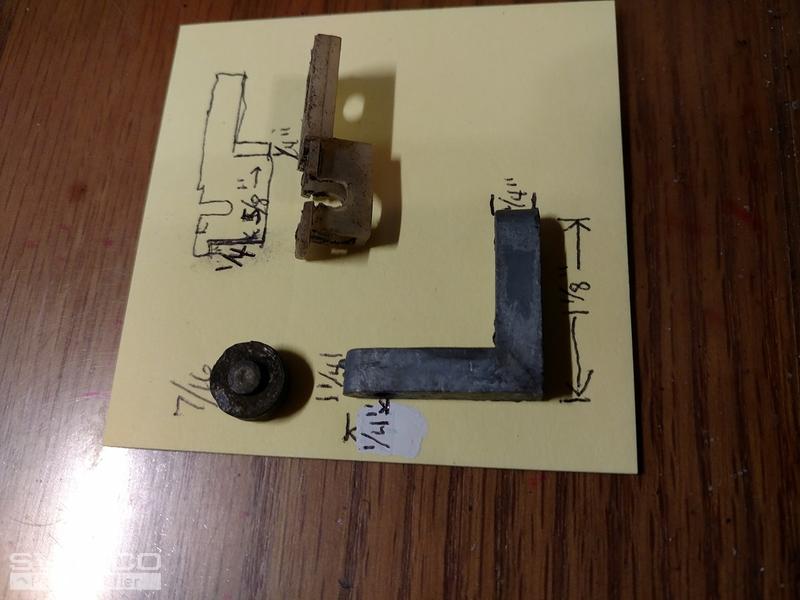

Here are the parts disassembled with their measurements the roller is 1/8 of an inch wide. total overall axle length is one quarter inch .
Roller is flat and made of metal.
Thumbnail of the uploaded file named IMG_20200811_120103878.jpg
Thumbnail of the uploaded file named IMG_20200811_123956532.jpg
A quick learner from Florida says:
The roller itself is 7/16 by 1/8 wide with the axle being 1/4 inch which is the same width as the carriage.
It is a flat, solid metal roller.
Thumbnail of the uploaded file named IMG_20200811_123956532.jpg
Profile picture of Paul
Paul from SWISCO responded:

I'm glad you were able to fabricate the corner, that was a tough one. The roller is a little hard, too, though. These kind of parts are hard to get a hold of these days. The closest match in our inventory is the 87-016 , which has a 1/2" nylon wheel. Would you be able to adapt this to work?
