Harcar window balance Rods

Quick Learner from Leesburg Florida

May 12, 2021 4:38 pm

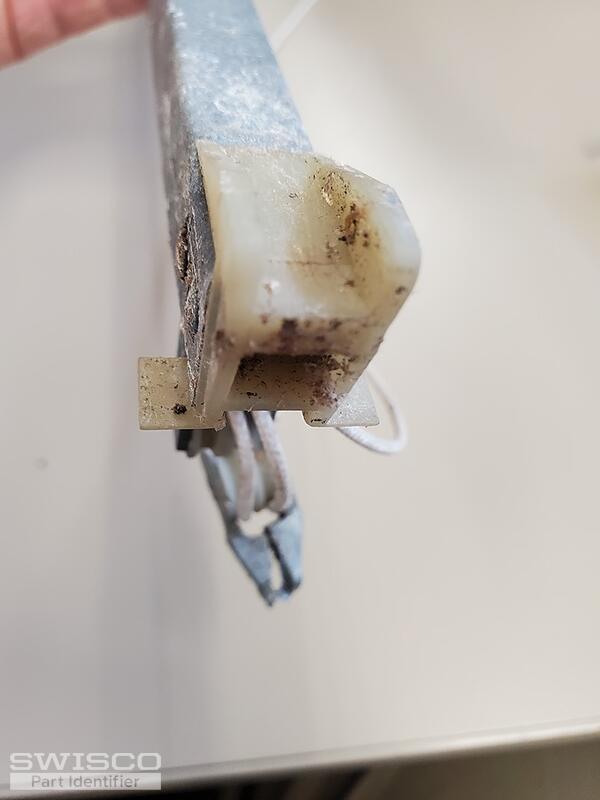

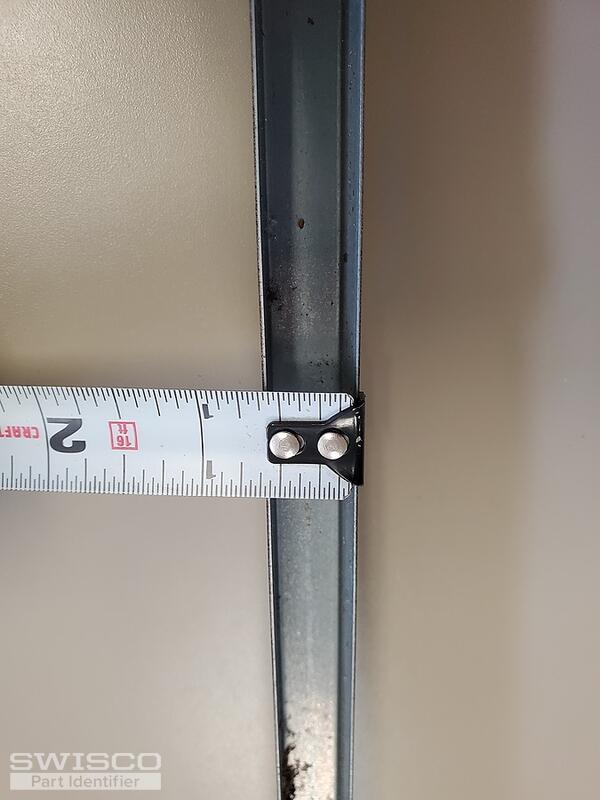

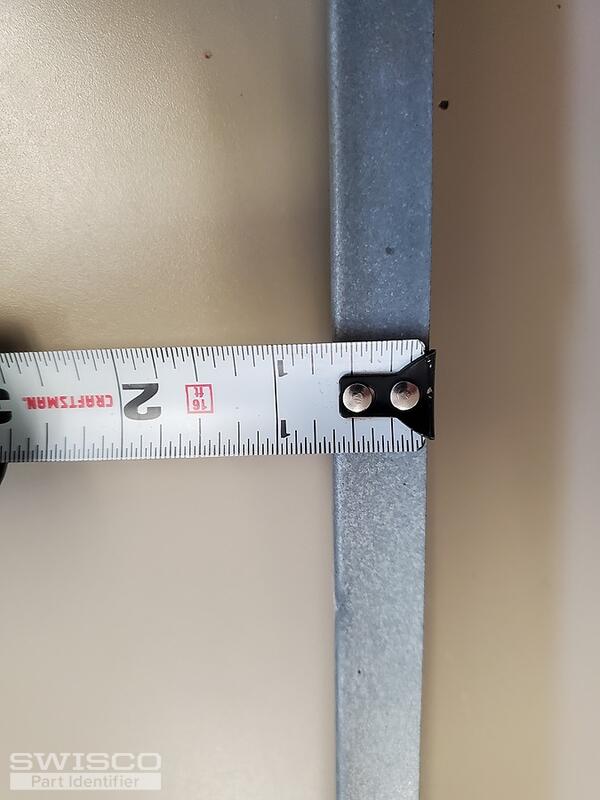

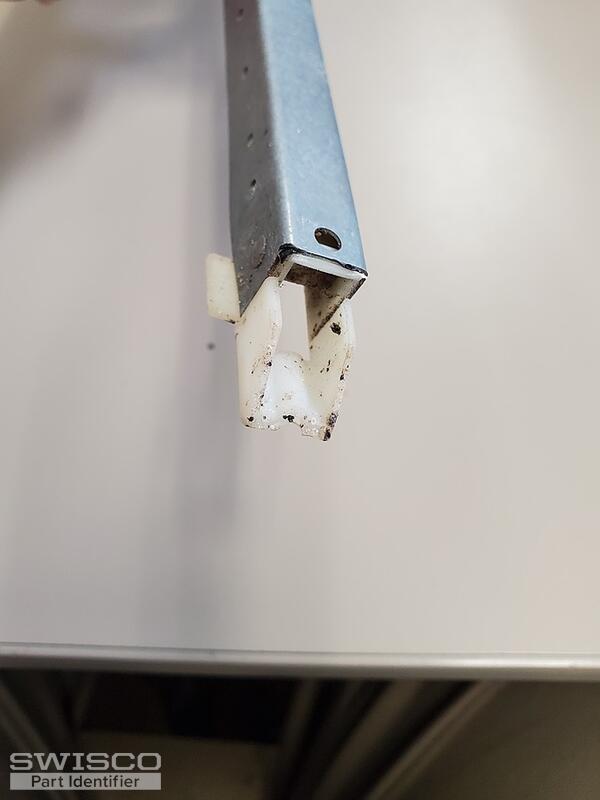

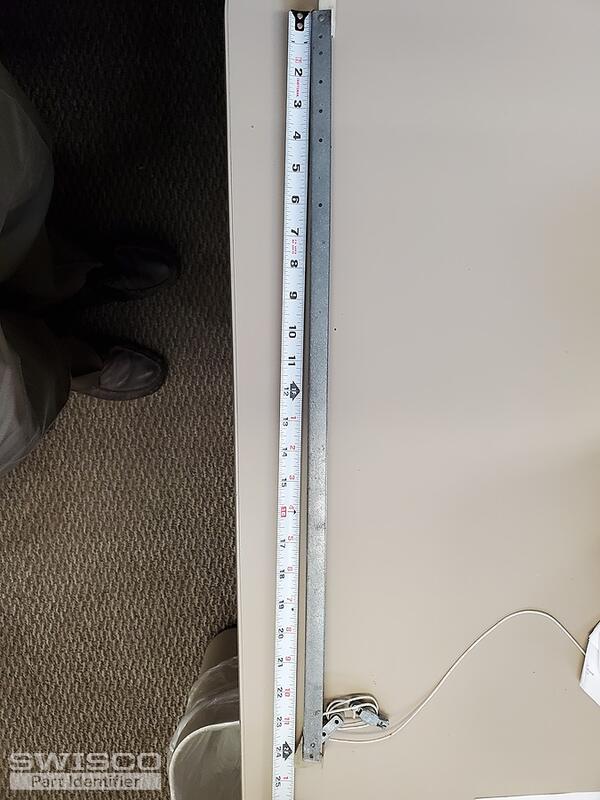

24 inchs along the metal portion only. Width across both channel dimensions is 5/8". Both nylon / plastic ends have wings one end is tapered and other end is more square / blunt in shape.

Looking to purchase 14 balances

Thanks Ed

5 user uploaded images

3 Replies

+ Add a Comment

Casey from SWISCO

May 14, 2021 9:59 am

EXPERT

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp code on the metal balance channel to choose the corresponding strength option.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

Quick Learner from Leesburg Florida

May 17, 2021 5:09 pm

Thanks. The measurement you are referring to is 1". The stamp code I see on the metal balance is 2390d (B.S.I) 29

Does this match anything you have?

Casey from SWISCO

May 18, 2021 8:43 am

EXPERT

It sounds like you need the S380-30 channel balance but your stamp code is from an outdated weight system. I'd recommend weighing your window sash and following the chart under the balance product page description.
