Hard time finding screen frame corners

Handy Person from Western Washington
Jun 7, 2024 2:15 pm
I have done a lot of searching, but can't find screen frame corners that match my frames. When I look, the dimensions are either obviously incorrect, or there isn't a dimension listed.

My corners have legs (that go into the frame) that are 0.4" thick by 0.5" tall. Both legs are the same size. The corner portion is 0.45" thick, and slightly 'L' shaped with each 'leg' being 0.7655" long and 0.5735" tall.

The frames appear to be factory made and go into Milgard windows.

The frames are in good condition, but the corners on the sun facing side of the house have turned brittle and have broken.

I want to buy corners to replace, but can't find ones that fit at Lowe's, Home Depot, etc. The ones found there are too thin and too wide.

Your help would be appreciated.
5 Replies
Emily
Emily from SWISCO
Jun 10, 2024 1:26 pm
SWISCO
EXPERT

Hello there! Thanks for reaching out to us. We'd be happy to see if we can help with this. May we see photos of an undamaged corner removed from the frame? We will also need to know the thickness of the screen frame. Those details should allow us to narrow down some options.

Handy Person from Western Washington
Jun 13, 2024 9:55 am
Hi, to get an undamaged one, I would need to take the screen material out, I'm trying to avoid that until I have replacements, but hopefully the dimensioned photos of a broken one will give you enough. If not, I'll remove a good one.
broken corner leg broken corner leg broken corner leg
3 user uploaded images
Emily
Emily from SWISCO
Jun 13, 2024 3:01 pm
SWISCO
EXPERT

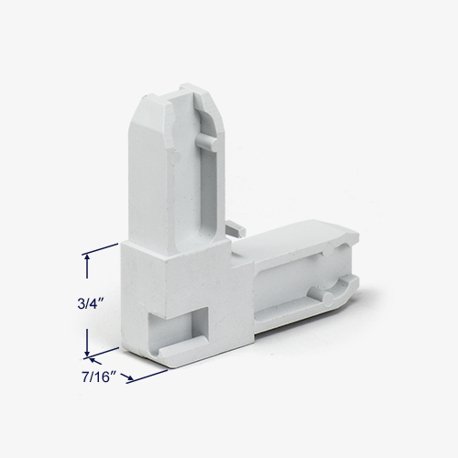

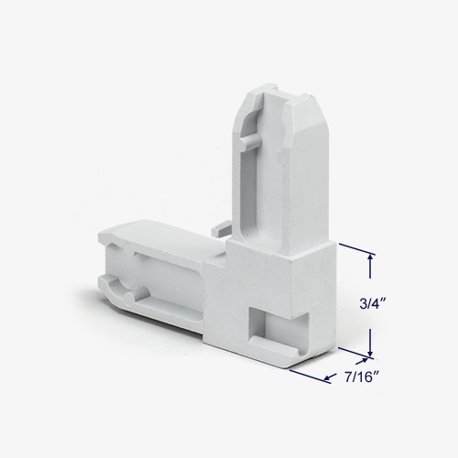

Thank you for the photos. We don't have a corner with these precise specifications. The 95-150 and 95-151 as well as the 95-229 come to mind. These are for 7/16" thick screen frames. Have a look at the specifications below and see what you think.

Alternate image for 95-150
Alternate image for 95-150


Alternate image for 95-151
Alternate image for 95-151

Alternate image of 95-229
Alternate image of 95-229

Handy Person from Western Washington
Jun 13, 2024 11:30 pm
Thank you for looking into it. I think the 95-150 and 95-151 look more like what I have than the 95-229 does. What do I need to do to order some of each?
Emily
Emily from SWISCO
Jun 14, 2024 8:22 am
SWISCO
EXPERT

Great! You can place an order for these parts right on our website at your convenience.
