Hello
I'm having a hard time identifying a replacement for this handle set in my sliding patio door. Everything I see online has a 8.5" length at the minimum on the main handle.
I might find a set where one dimension matches but the others don't so it's quite confusing

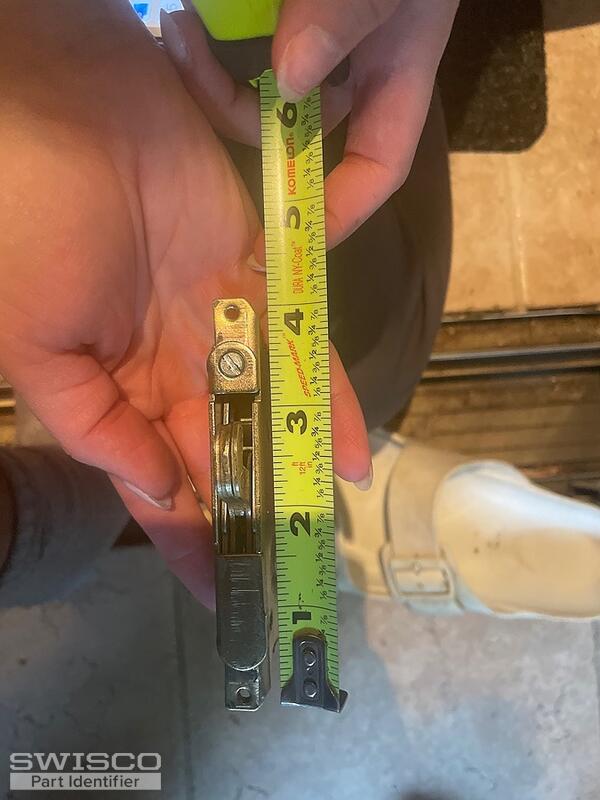

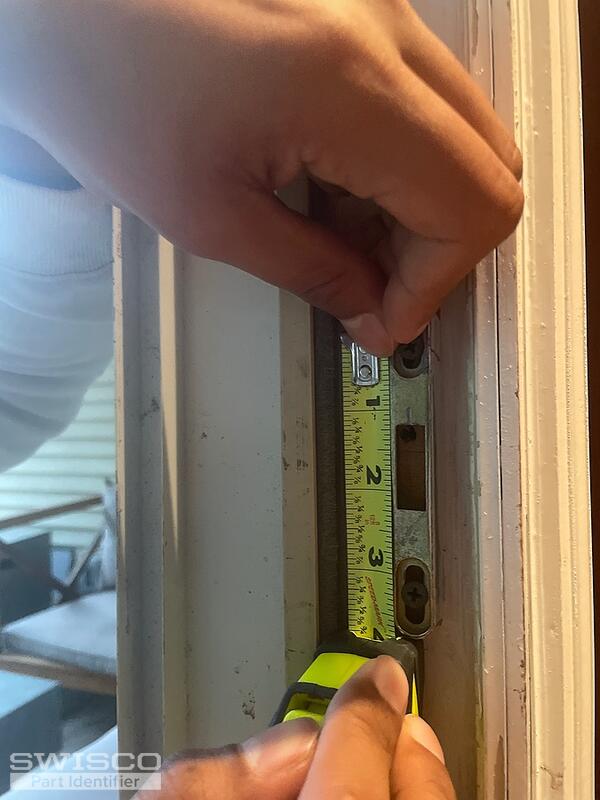

ive attached some pictures with the measurements and would appreciate any help
Hard time identifying parts to replace this handle and lock set
Home Owner from Columbus
Apr 25, 2025 7:17 pm
5 user uploaded images
4 Replies
Emily from SWISCO
Apr 30, 2025 11:39 am
Hi there!
Thank you for reaching out to us. We're happy to look into this. Can you confirm if the thumb lever for the handle is centered or in an offset position? If you're not sure, we'd like you to remove the handle from the door and show us the installation holes in the door.
As for the mortise lock, the 82-229 comes to mind. We recommend you compare our specifications with the complete assembly to confirm they match what you need.
Alternate image for 82-229
Alternate view of 82-229
Home Owner from Columbus
Apr 30, 2025 1:49 pm
Thanks for the info. I can't fully remove the handle at this point (therefore looking for a replacement solution!) as one of the handle screws is stripped pretty bad.

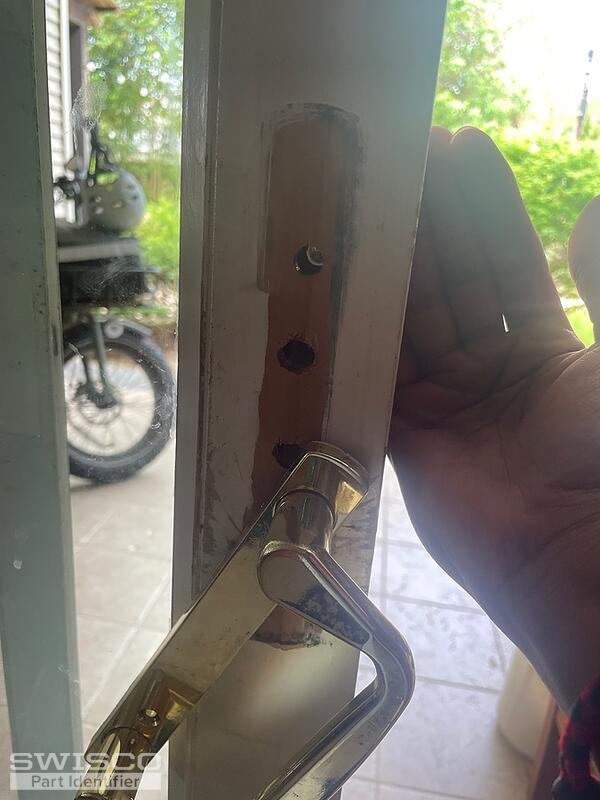

but I've attached some more images of the installation holes. There are basically 4 that are stacked right on top of each other.

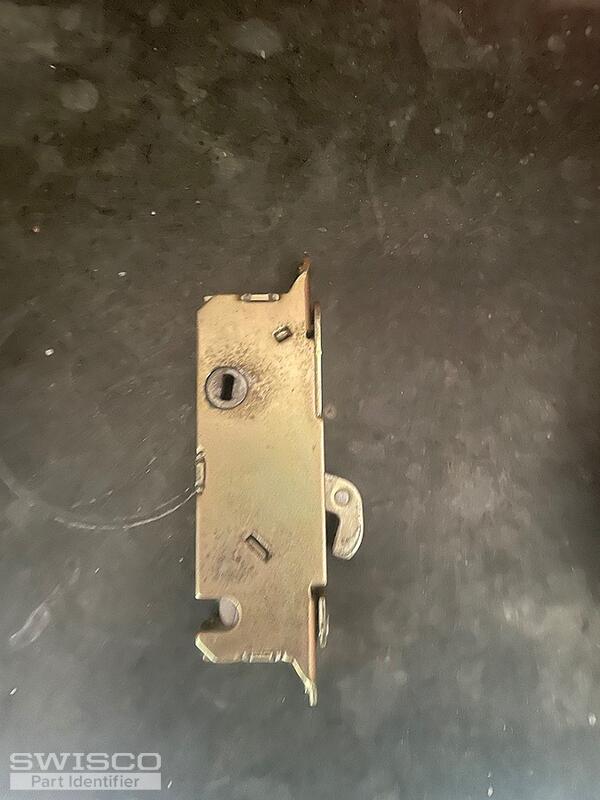

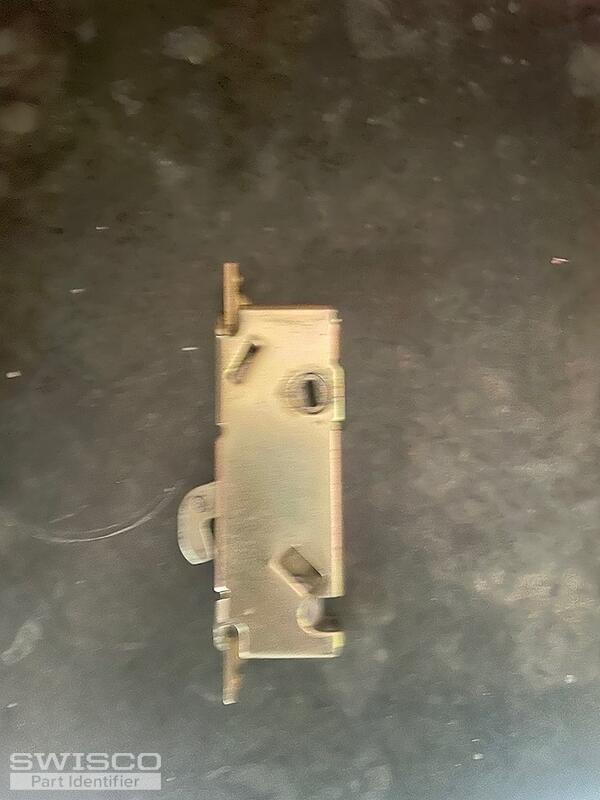

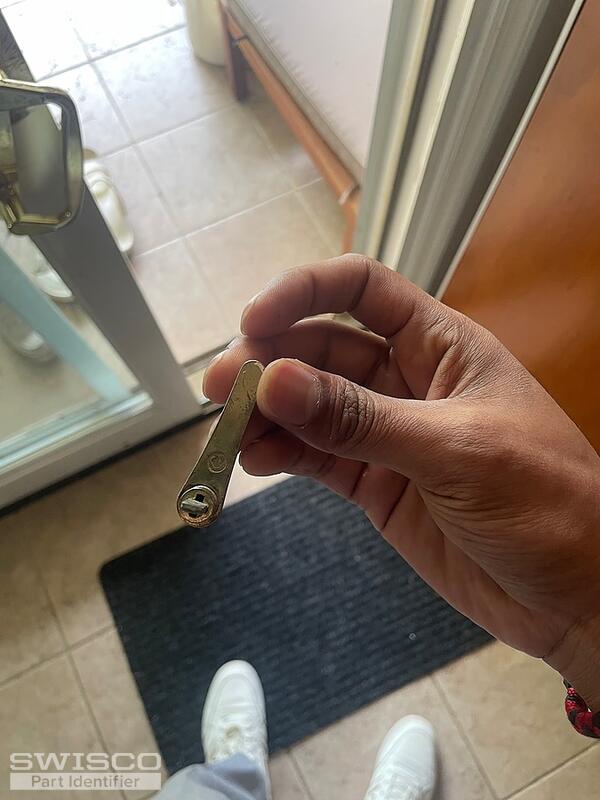

Ive attached a picture of the lever and current lock as well. I believe its offset based on the picture but don't know enough to know for sure
but I've attached some more images of the installation holes. There are basically 4 that are stacked right on top of each other.
Ive attached a picture of the lever and current lock as well. I believe its offset based on the picture but don't know enough to know for sure
4 user uploaded images
