Hardware

Home Owner from Grove City PA.

Jul 9, 2023 4:09 pm

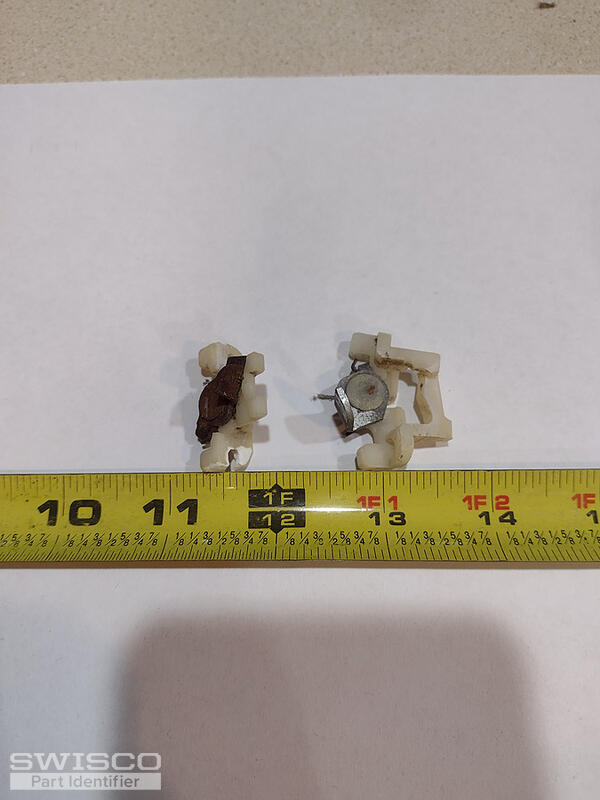

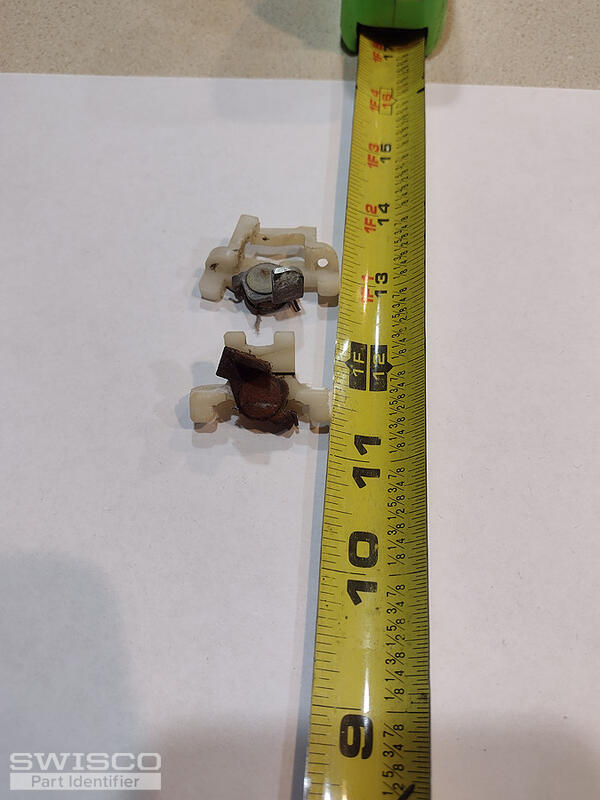

These are from a double hung window in a modular home that was built in the late 1970's.
They attach to a spring balance and then latch into a slot on the window, there are 4 on each window and it appears all for are different, left and right side are different and inner and outer windows are different. There are 9 windows in the home and almost all the balances are non functioning. Thank you

2 user uploaded images

4 Replies

Bob from SWISCO

Jul 9, 2023 5:07 pm

I am afraid I don't recognize this shoe at first glance. Can you show me the balance spring it attaches to in the window? I have a feeling of what it may be, but I'd like to see it first to be certain. We'll do our best to narrow this down from there. Many thanks.

Home Owner from Grove City PA.

Jul 10, 2023 2:46 pm

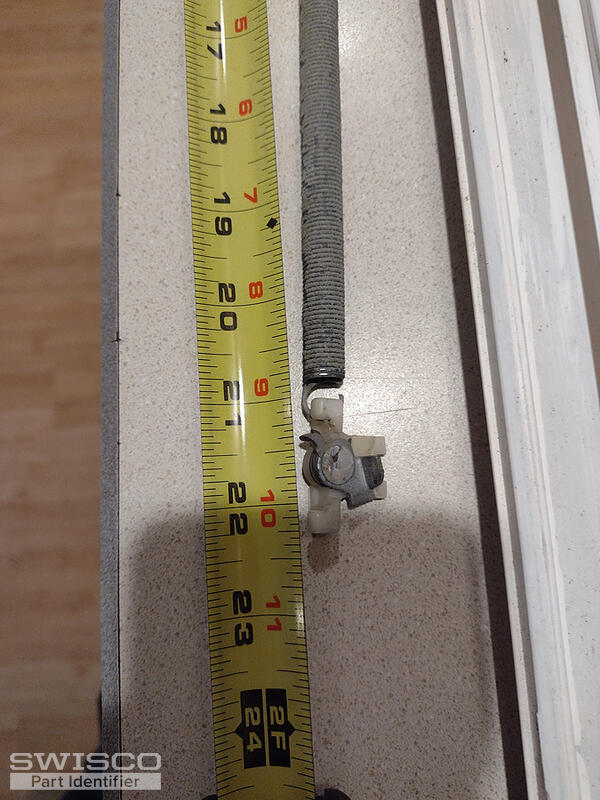

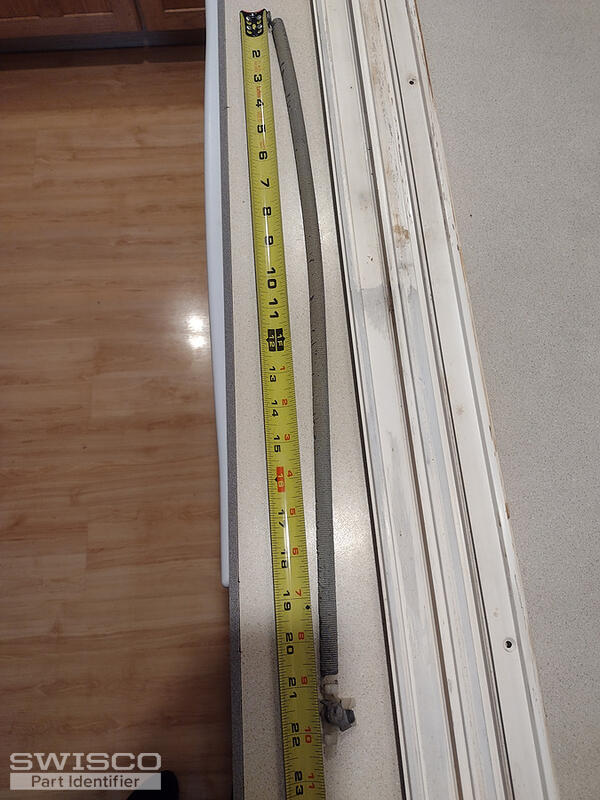

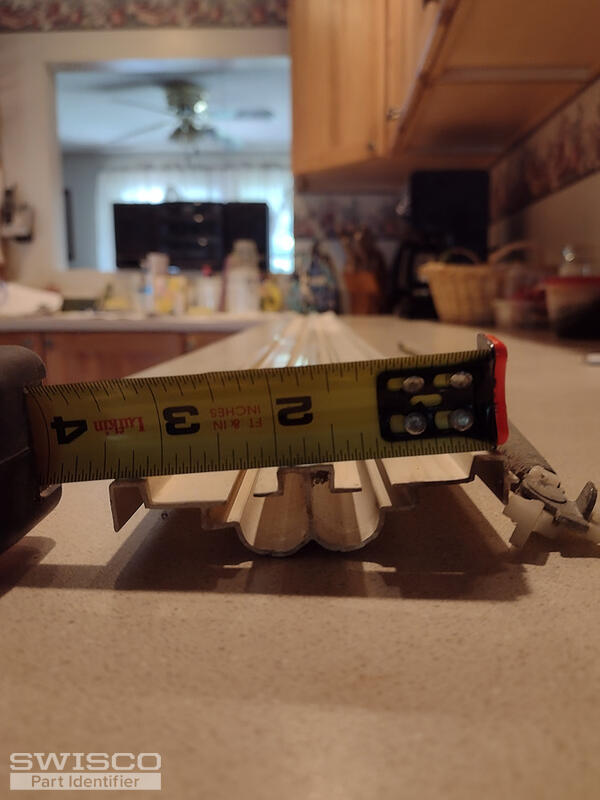

The springs are about 21" eye to eye and 9/16 diameter. First photo is profile of window track. Second photo is of one of few unbroken shoes, it is from the outer window track and right side. Thank you for the response.

3 user uploaded images

Tom from SWISCO

Jul 11, 2023 2:12 pm

Hello! I recognize this hardware. What you show in your first photo is similar to our 20-006 clutch set, which is used on very old Crestline windows (though I've seen it on other brand wood windows, too). The springs and jamb liners are unfortunately not something we can supply, but hopefully they can be reused.
