Hardware Identifacation & Replacements

Quick Learner

Jul 3, 2025 12:46 pm

Hi,

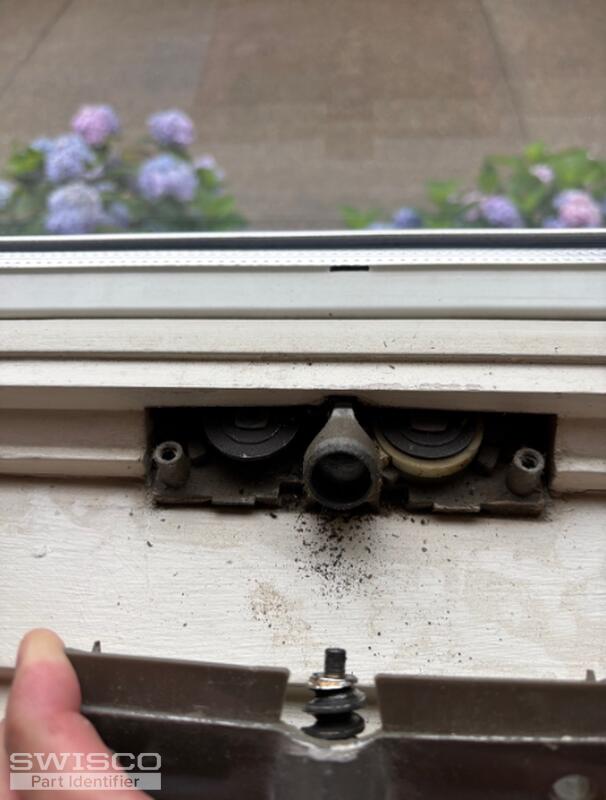

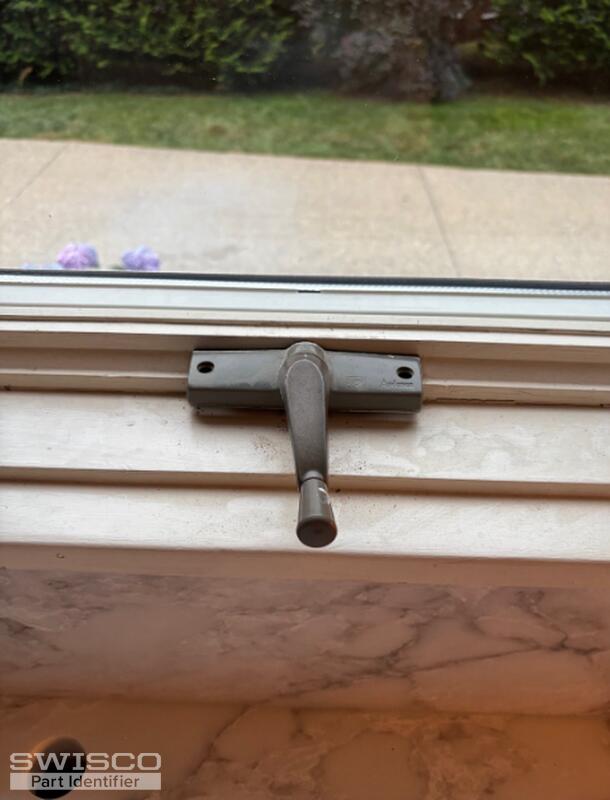

I'm looking to identify the hardware in the attached photos and find out if there are replacement options available (preferably in white). The handle in the photo is approximatley 4.5" across, and the lock plate is approximately 2.75" high.

Please let me know if you have any questions, and I look forward to hearing from you soon.

5 user uploaded images

7 Replies

Tom from SWISCO

Jul 8, 2025 2:27 pm

Hello! This operator appears to be a match for our 39-147. Look it over and please let me know if you had any additional questions.

Dimensions for 39-147

Quick Learner

Jul 8, 2025 3:05 pm

Hi Tom -
Thanks for your message. Do you happen to know if there is an alternative to this option that comes in white?
Thanks - Mick

Tom from SWISCO

Jul 8, 2025 4:04 pm

Sure, we sell the 39-154 cover and 39-286 handle separately. These are both white and fully compatible with this operator.

Quick Learner

Jul 9, 2025 9:58 am

Thanks, Tom!
Do you also have a matching white lock plate and latch that we can replace the existing ones with?

Tom from SWISCO

Jul 9, 2025 1:11 pm

Sure! Take a look at our 38-057, this may be what you want. We also sell the 38-056 for the opposite side. Note that these are older style locks only meant to be used on Andersen's Perma-Shield windows, made from 1979 through 1995.

Quick Learner

Jul 9, 2025 1:37 pm

Thanks for your help, Tom!
I've ordered the parts, and hopefully everything works out.
