Hardware for my bi-fold doors

A home owner from Louisville ky says:
Hello:
I need help identifying new hardware for my bifold doors. I need as well new tracks.

The old tracks measure 30 inches per one bifold door (4 tracks top and bottom) and 2 feet per bifold doors (4 tracks top and bottom)

Thank you for taking the time to help me.
Thumbnail of the uploaded file named 20190325_100811.jpg
Thumbnail of the uploaded file named 20190325_100510.jpg
Thumbnail of the uploaded file named 20190325_100455.jpg

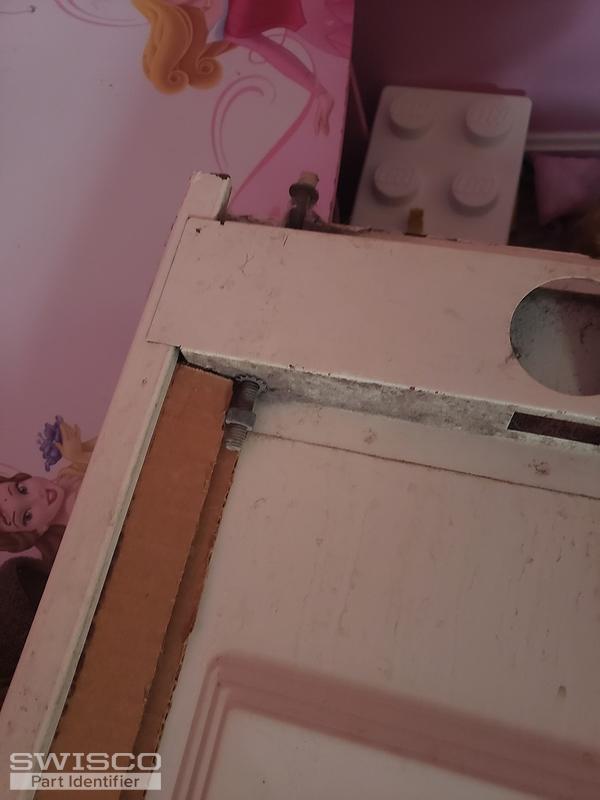

Thumbnail of the uploaded file named 15535232593396770952133761303757.jpg
Profile picture of Tom
Tom from SWISCO responded:

It's difficult to tell what you have from these photos. Much of the pin is obscured while it's installed, and I do not know its dimensions. I recommend looking through our entire selection of metal bifold door hardware here to get started.

In the meantime, can you tell me the manufacturer of this door? That would be a huge help. Would it also be possible to see the pivot pins out of the door? I would also like to know their dimensions, specifically diameter and length, and the diameter of the nylon caps. Thank you!

A home owner from Louisville ky says:

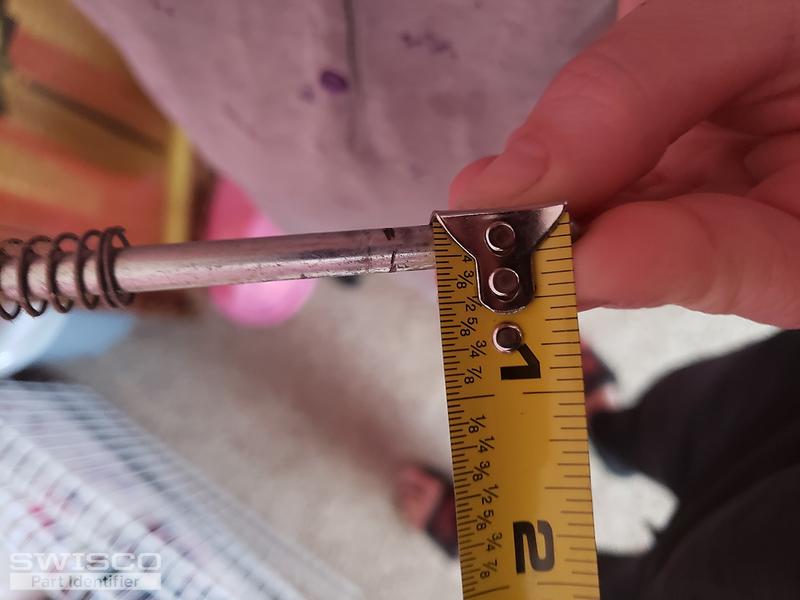

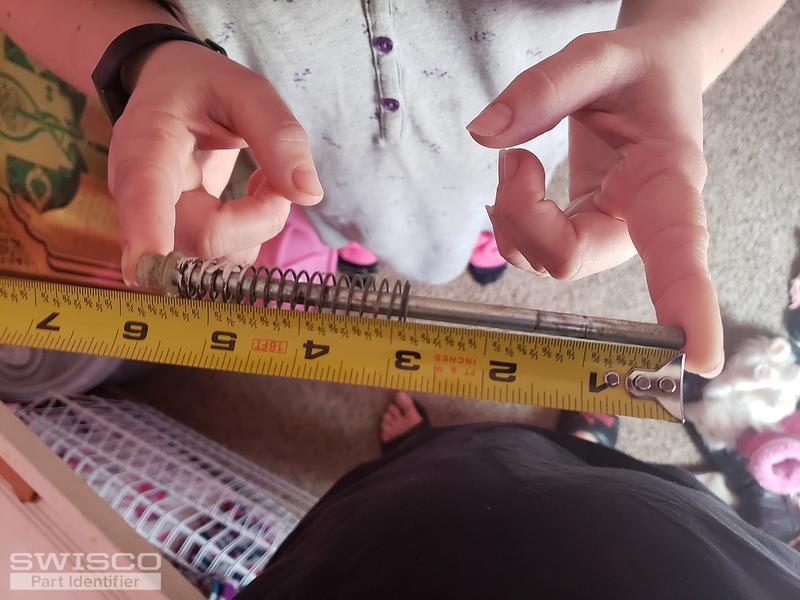

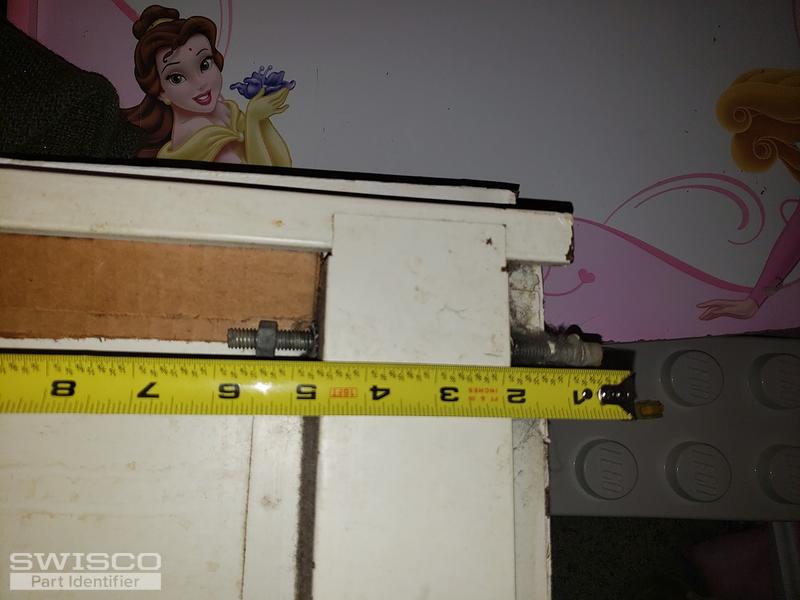

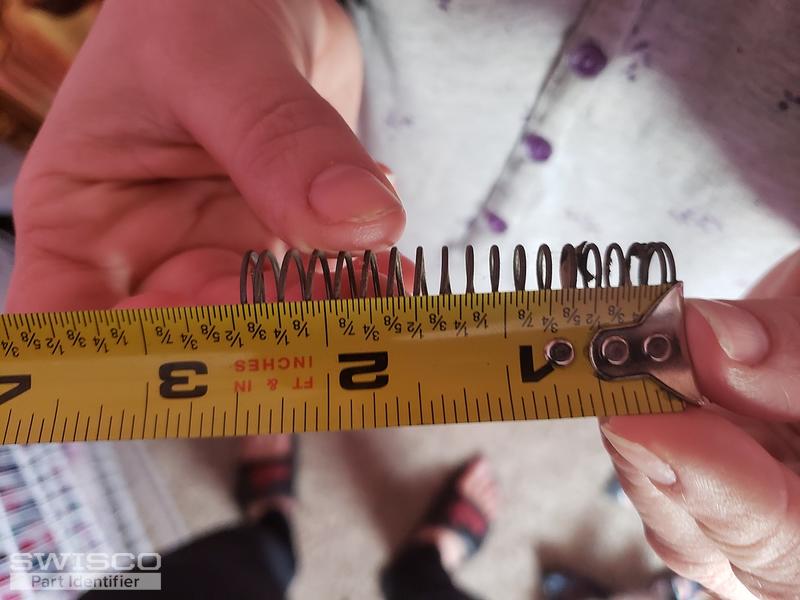

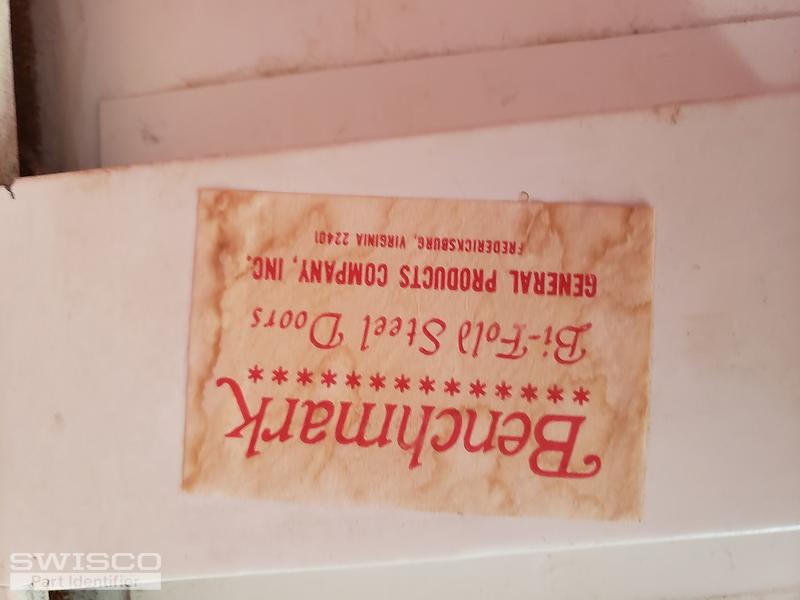

I apologize. I thought I put the door maker's brand on my original post. The pivot pin held is the top one while the other one is the bottom.

Thank you
Thumbnail of the uploaded file named 15537055338734651798824493651397.jpg
Thumbnail of the uploaded file named 15537055767637532126287672357698.jpg
Thumbnail of the uploaded file named 155370562269967623526659274901.jpg
Thumbnail of the uploaded file named 15537056580953003058179965347974.jpg
Thumbnail of the uploaded file named 15537057163095146410167725103603.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for the additional photos and information. For the Benchmark doors, you can use the 21-044 for the spring loaded guide pins and the 21-002 bottom threaded pivot pin. For the 30" track you can use 21-402 and cut it down to two pieces. They will come out to 29-1/2". You would just center the track and they will work fine. For the 24", use the 21-404 and again cut it in half. We also recommend the 21-277 rubber bumpers to help keep the doors from slamming the wall and help keep the door closed.
