Hardware replacement

A quick learner from Petaluma says:
July 5, 2022

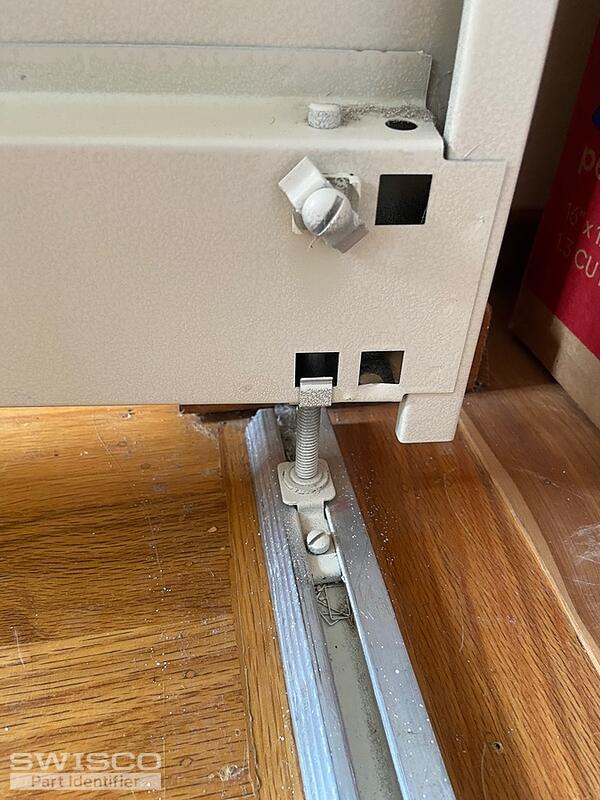

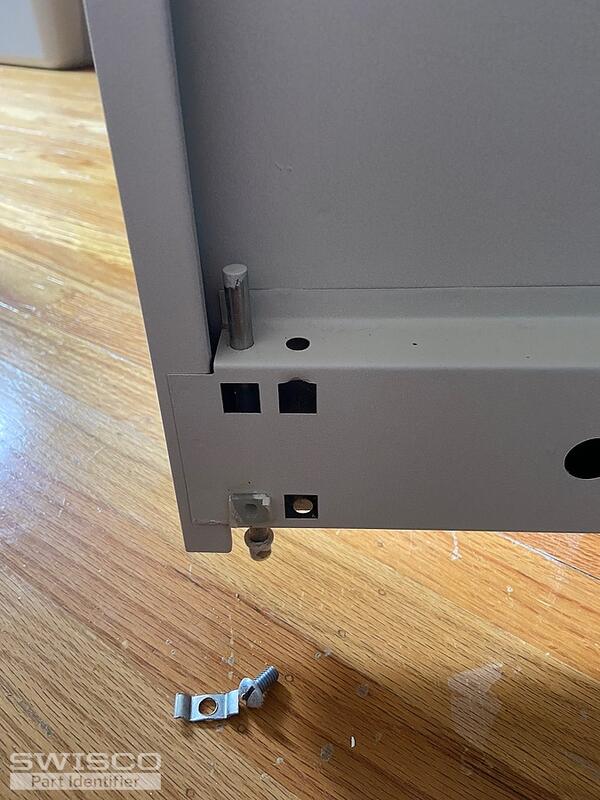

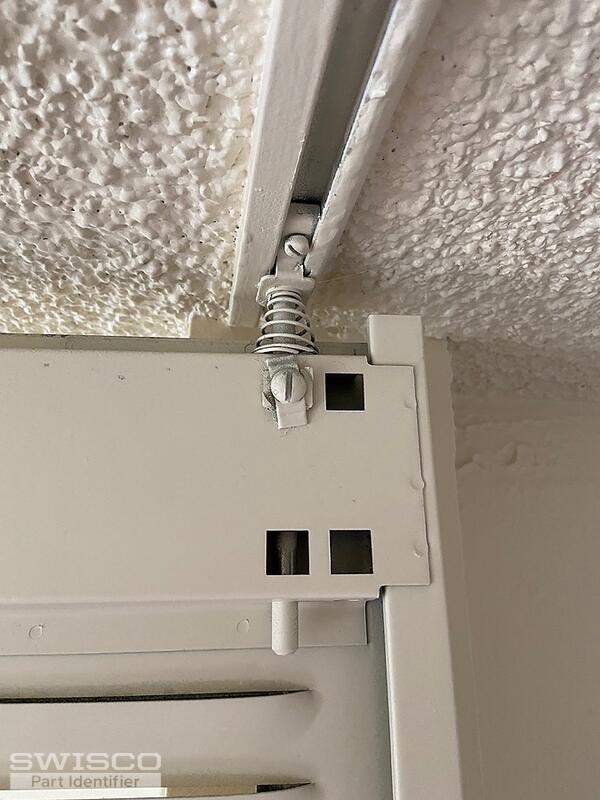

Looking to replace the hardware and tracks to the bifold doors at our new house. All of the tags are worn out so I can't find any information. Any help would be great. Thanks!
Thumbnail of the uploaded file named AB1F9657-C89E-453E-8EE9-AE9C41D6CD2B.jpeg
Thumbnail of the uploaded file named 286D79B2-7F51-4D86-9B4F-FD53E6C98D08.jpeg
Thumbnail of the uploaded file named 49657D07-D205-45DC-AC9D-34F3B281141A.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
July 8, 2022

Hello, thank you for posting,

To further review, we will need to see the pins removed from the door with written out dimensions of the length of the pin and diameter of the pin cap. Thank you!
A quick learner from Petaluma says:
July 11, 2022

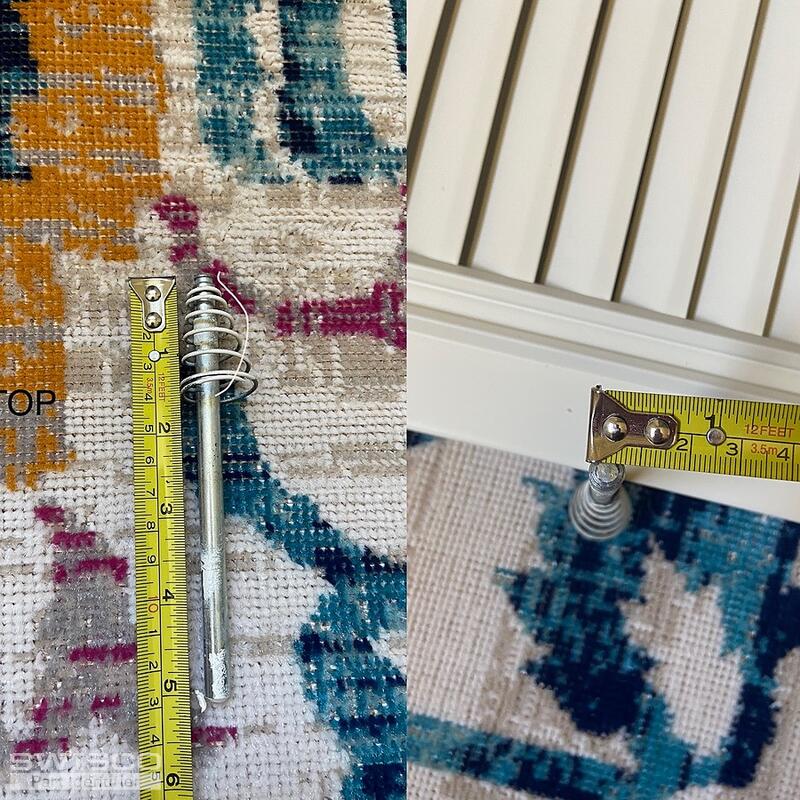

Sorry for not providing this information originally. Please see new photos!
Thumbnail of the uploaded file named 1C0099E5-DBAE-4C43-A08C-DBD63F518B69.jpeg
Thumbnail of the uploaded file named 46532257-59D7-4CBC-818D-F18E8D93D08D.jpeg
A quick learner from Petaluma says:
July 11, 2022

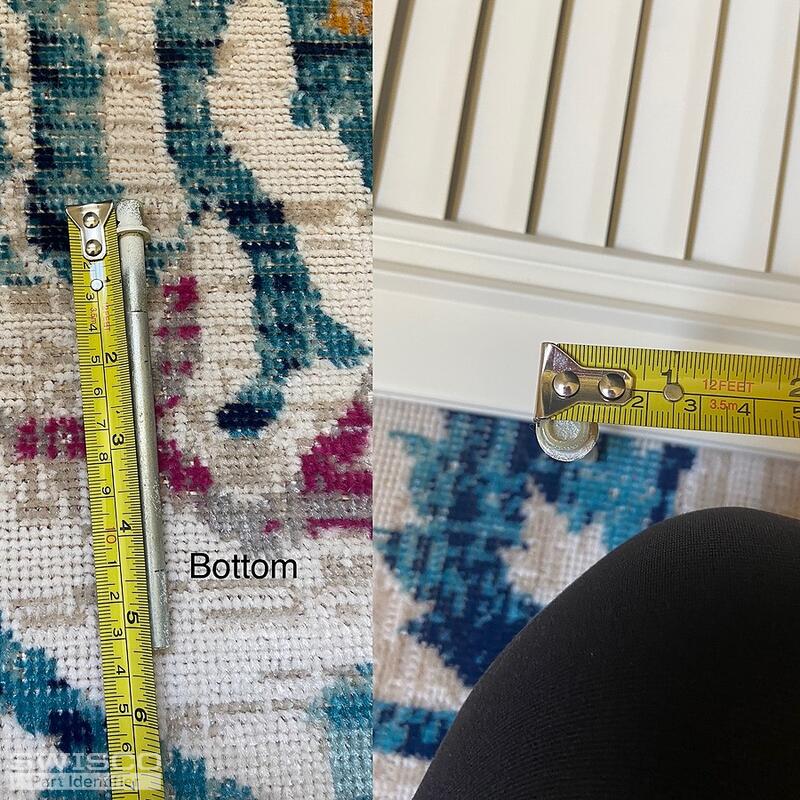

Sorry the previous ones were both top pins. Here are the bottom pins. I can't remove one right now since it was painted over but measure it the best I can.
Profile picture of Lauren
Lauren from SWISCO responded:
July 12, 2022

Thank you for the additional pictures,

I am having one of our senior experts review further for the best replacement. I will be in contact as soon as more information is available. Thank you for your patience!
Profile picture of Paul
Paul from SWISCO responded:
July 14, 2022

Hello, maybe I can help. It looks like you have the old Slimfold bifold doors. We only carry replacement parts for the newer Slimfold doors, but I believe that will still fit on yours.

If you're replacing the tracks, consider either our 21-401 (3' long) or 21-403 (6' long). For the bi-fold pins, you will need one 21-001 bottom threaded pivot pin and three 21-007 pins in the other positions.

Please review these parts and let me know if you had any questions.
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
Bifold Track, 5' Opening
Bifold Track, 5' Opening
21-402
$17.15
Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$18.57
Bifold Track, 4' Opening
Bifold Track, 4' Opening
21-404
$12.75
Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
