Hardware replacement for full vu metal doors

Quick Learner from Puerto Rico
Aug 20, 2024 11:47 am
Hi

I am looking for replacement hardware. Regards Tony

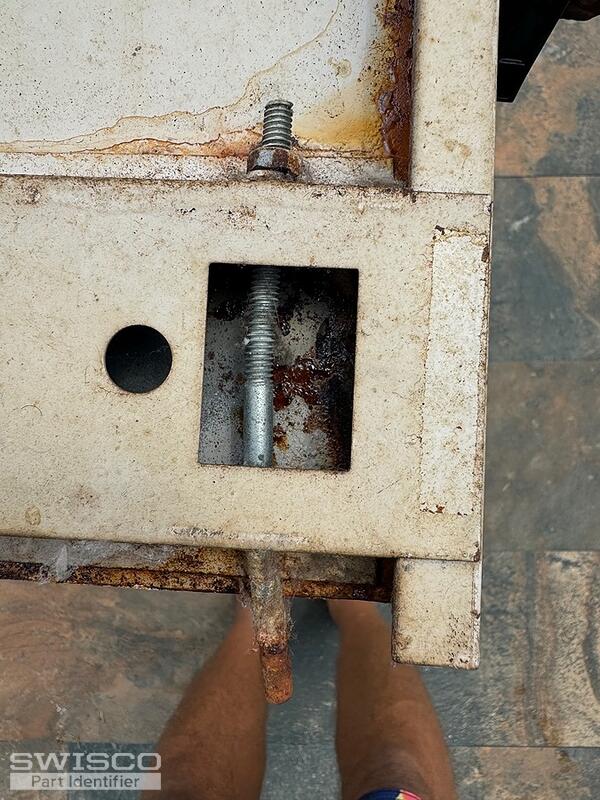

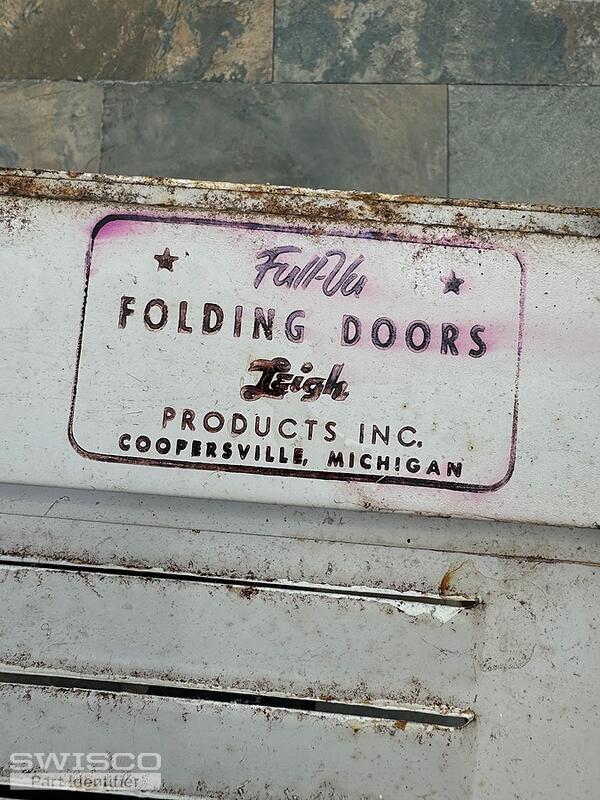

IMG_0435 IMG_0434 IMG_0433 IMG_0432 IMG_0436
5 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Aug 26, 2024 12:13 pm
SWISCO
EXPERT

Thank you for your patience during this busy season. Hopefully I can help you identify the parts you need to repair your door.

The spring loaded pins with the nylon caps would be our 21-054, the pivot bracket for the track is our 21-206, and the bottom threaded pivot pin would be our 21-003. For the top spring loaded plain pin, you can reuse your old old one or the old spring loaded pins with the nylon cap and take the nylon cap off.

Please feel free to reach out if you had any other questions.
