Harvey window parts

A quick learner from Massachusetts says:

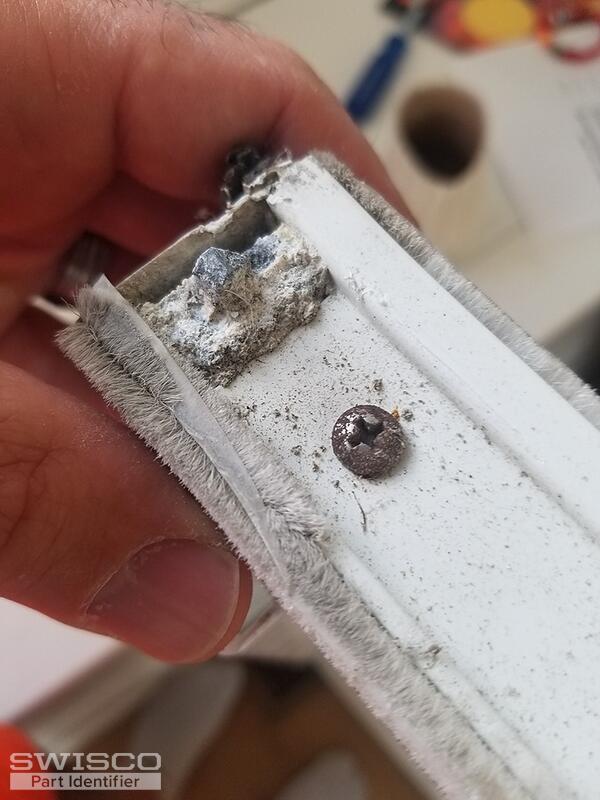

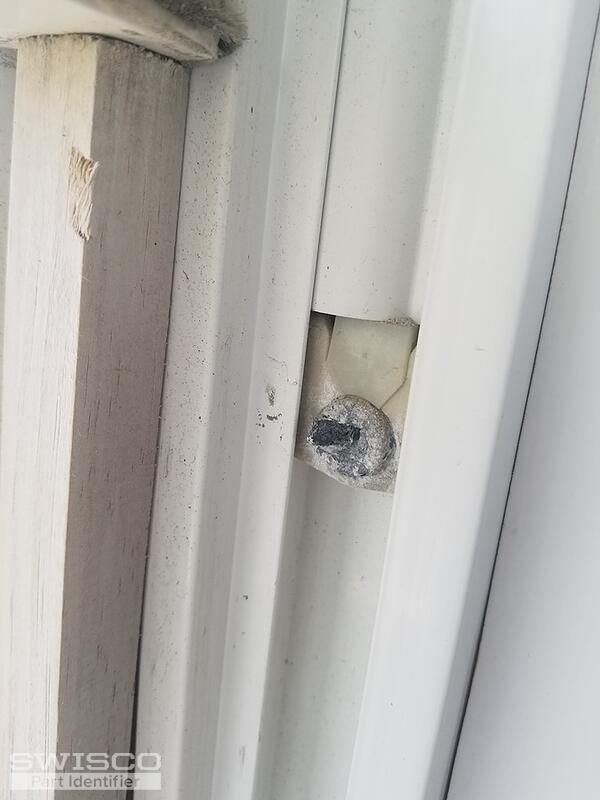

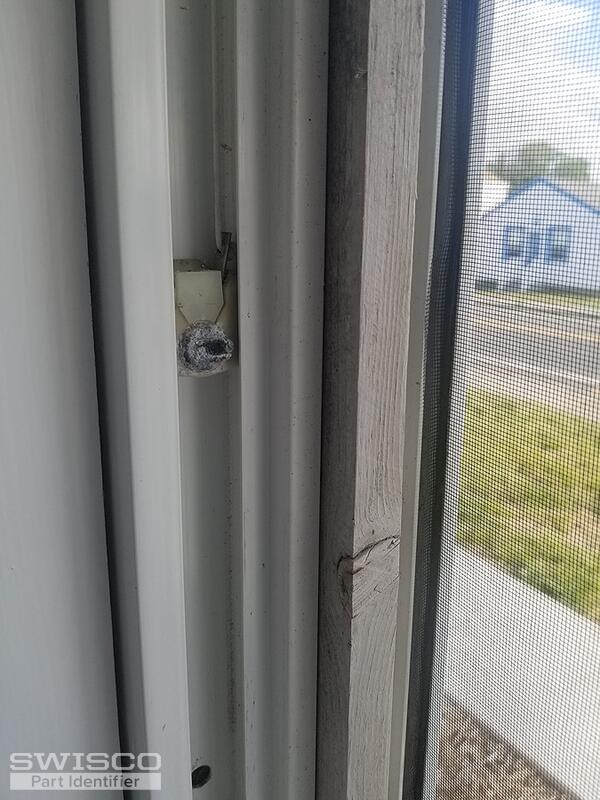

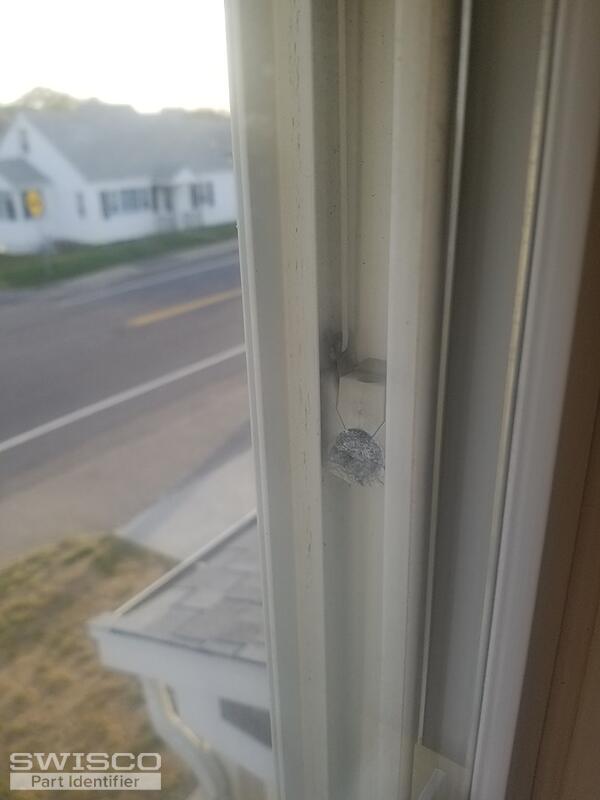

The pivot bars and cams have completely corroded, fused, and broken on several of my older Harvey windows. Amy help replacing the parts would be greatly appreciated. Thanks.
Thumbnail of the uploaded file named 20210518_173142.jpg
Thumbnail of the uploaded file named 20210518_173151.jpg
Thumbnail of the uploaded file named 20210518_170437.jpg
Thumbnail of the uploaded file named 20210518_174146.jpg
Thumbnail of the uploaded file named 20210518_190622.jpg
Profile picture of Bob
Bob from SWISCO responded:

It's tough tot ell from these pictures, but remove undamaged pivot bars from an identical window (if possible) and see our 26-416. For the pivot shoes, remove and see if either our 15-105 or 15-208 match.

15-105 : Pivot Shoe, 17/32
Pivot Shoe, 17/32" Thick
15-105
$5.85
VIEW >
15-208 : Pivot Lock Shoe, 9/16
Pivot Lock Shoe, 9/16" Thick
15-208
$3.55
VIEW >
26-416 : Pivot Bar Set, Harvey
Pivot Bar Set, Harvey
26-416
$7.94
VIEW >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
