Have 2. One 20-3. One 14-4

Quick Learner

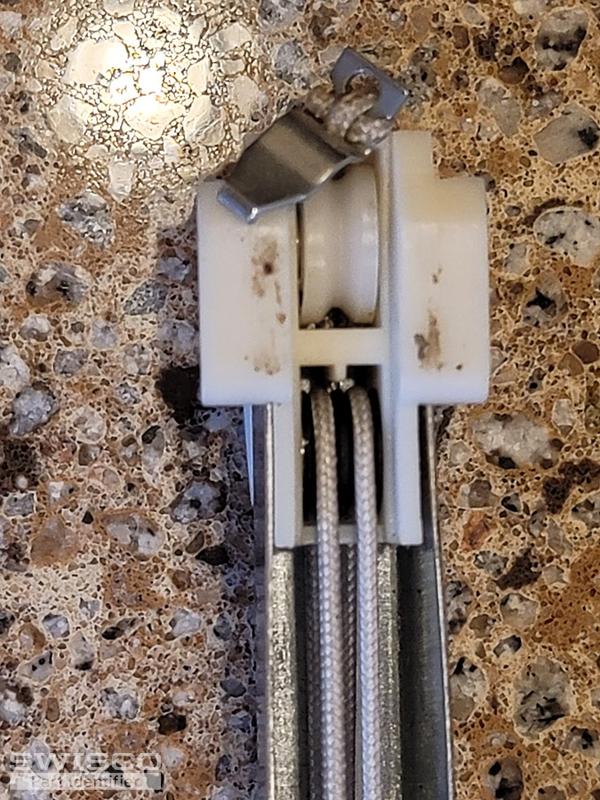

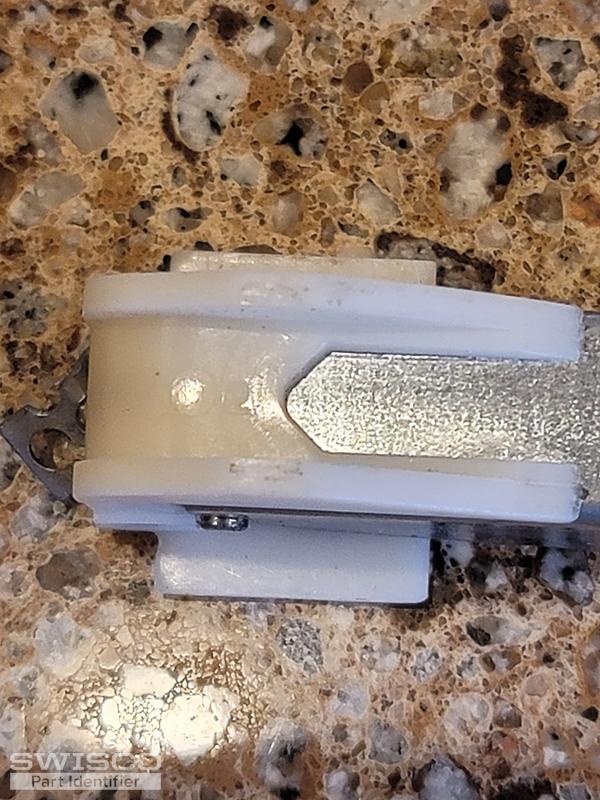

I have 2 balances with a broken piece that fits into a hole in the window frame. Also has a BS td stamped by the numbers. The metal channel is 15 and 21 inches with the same end piece designs. What should I order?
5 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We can supply this balance, but it has to be a custom order due to its configuration. Before we go any further, I just need you to confirm a few details.

First, can you double check the length of the metal channels? The 14-4 balance should be 14-7/8" long and the 20-3 balance should be 20-7/8" long. Make sure to only measure the metal channel. Don't measure the nylon fittings.

Can you also tell me how many of each you need?

Once I have that information, I'll email you purchase links that you can use to place an order on our site.

Quick Learner
Yes the pieces are the 7/8" length and need at least one of each
Tom
Tom from SWISCO
SWISCO
Expert

Thank you. We can only supply 2 at minimum, since these are custom, so I hope that's okay. I'll email those links out to you right now.

Quick Learner
One last question... what i really need is just the hook at the end ... is it possilbe to just get that part? say 10?
Thanks
Tom
Tom from SWISCO
SWISCO
Expert

As a matter of fact, we do. That'd be our 62-108. Just note that when those clips fail, it's usually a sign that the balance springs aren't far behind. Just something to keep in mind for the future.
