Help with storm door lockset

Hello,

Take a look at the 40-223 handle set. Not sure what type of door you have, but this handle set will work on Larson and Pella. It will also work on Forever and Andersen storm doors by using the shims that come with it. Take a look at the specifications compared to your assembly. Thanks for posting!

Mortise Dimensions for 40-223

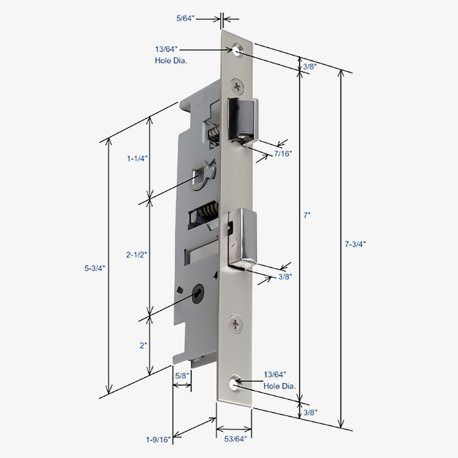

Manufacturer Mortise dimensions

Interior view for 40-223

Exterior view for 40-223

The only other handle we carry similar to yours would be the 40-049, but the measurements don't seem to line up either. I'd suggest double-checking your measurements just to be sure. Also, do you know the name of the door manufacturer? Check the edges of the door to see if there is a label or a tag.

Take a look at the 40-129 key cylinder below and see if it will work with your original handle set. This key cylinders use a Kwik-set or Weiser keyway. If not, I'd suggest checking with a locksmith in your area to see if they can supply a key cylinder that will fit your handle set.

Alternate image for 40-129

The 40-129 key cylinder is 1-5/16" tall, where yours is 1-1/8". I would check with a locksmith to see if they have a cylinder that will fit your handle set. If not, you might need to replace the complete handle set, but you will need to drill new holes since the mounting hole locations and other dimensions differ from yours. If you need to replace the complete handle set, I would suggest using the 40-223, which is commonly used with different types of doors.
