Help!

A quick learner from Evanston, IL says:
July 7, 2020
Hello!

I need to replace a few spring coils. Attached are pics. The stamp on the coil seems to read ' #10.0 35" ' but it's pretty hard to see. Can you help? Thanks!!

Suzannah
Thumbnail of the uploaded file named 15941566792503866608524908808038.jpg
Thumbnail of the uploaded file named 15941567129531881088777103211205.jpg
Thumbnail of the uploaded file named 1594156755299758138028741251637.jpg

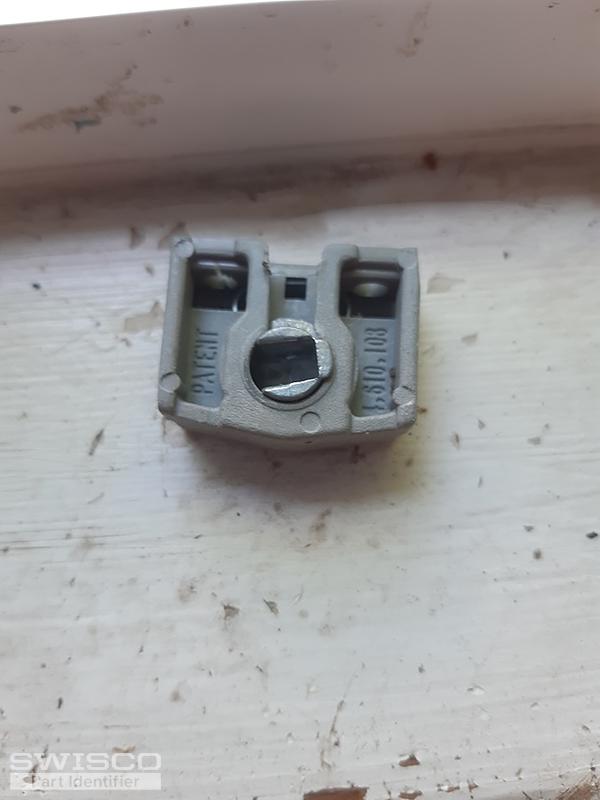

Thumbnail of the uploaded file named 15941568385643503990658465591874.jpg

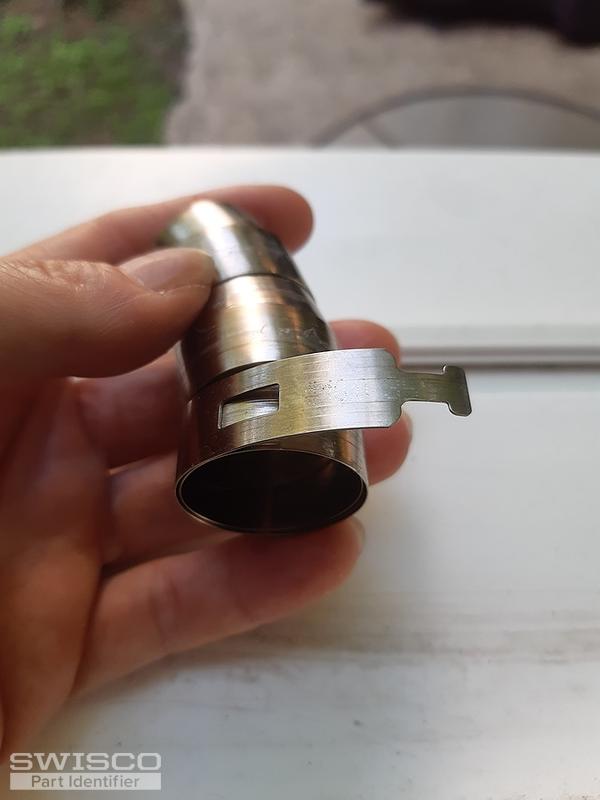

Thumbnail of the uploaded file named 15941569018802938661702057236811.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 10, 2020

Hello, Suzannah. Your pivot shoe looks like a match for our 15-191, which itself is compatible with the Series 160 coil spring. Since your old spring is stamped with #10, that indicates a 10 pound calibration, which means you specifically want the S160-10.

Let me know if you had any questions!
Heavy Duty Pivot Shoe, 1/2" Thick
Heavy Duty Pivot Shoe, 1/2" Thick
15-191
$2.57
10 lbs Series 160 Coil Balance
10 lbs Series 160 Coil Balance
S160-10
$6.34
