Home Owner from Santa Clarita
Hi. Can you help me? I can't find this one.
4 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

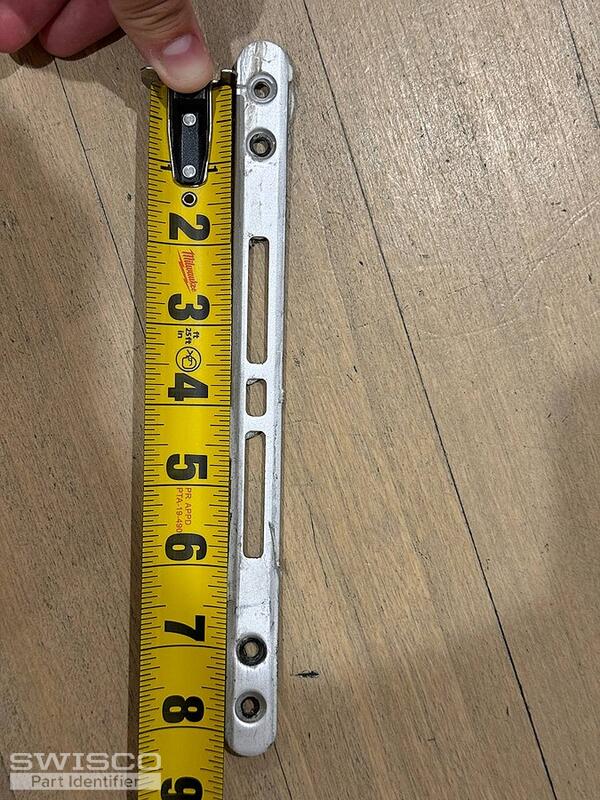

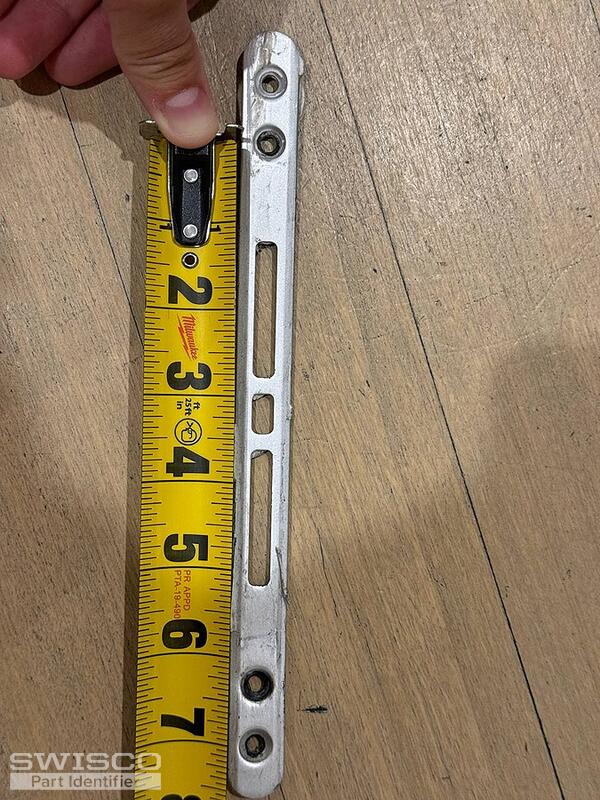

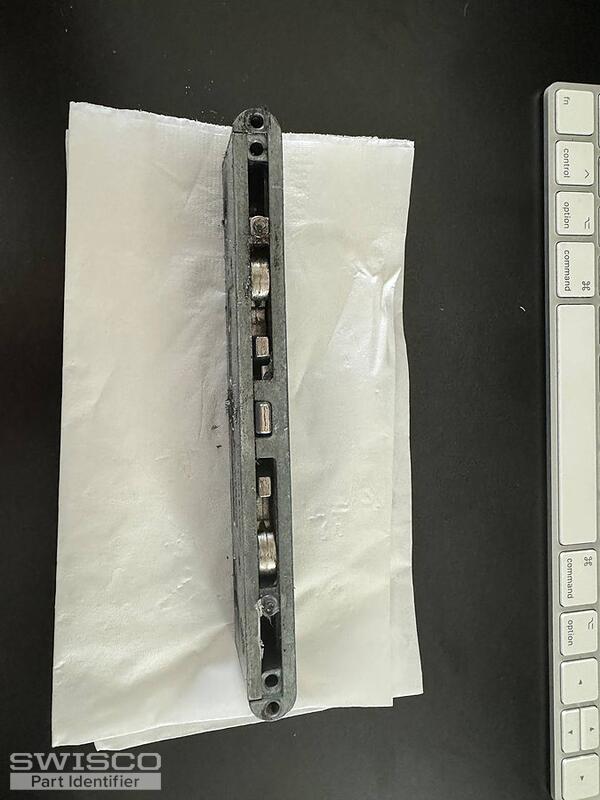

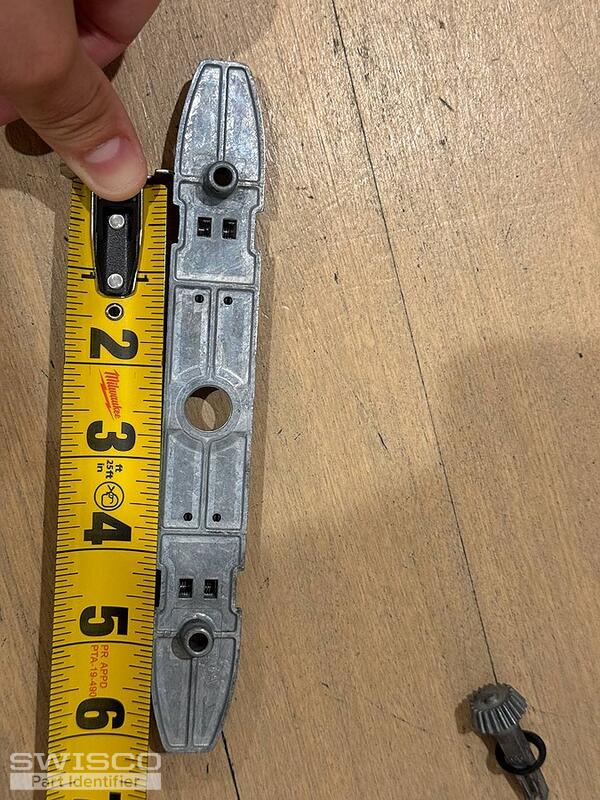

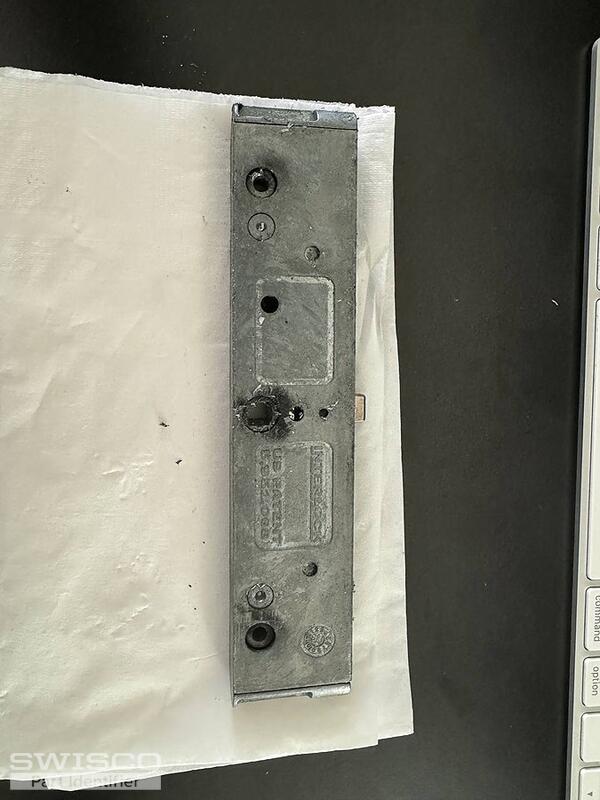

Thanks for reaching out to us. We don't sell a match for this handle set. Can you write out the distance between the two installation holes, measured from center to center? Can you also show us a photo of the mortise lock?

Home Owner from Santa Clarita
Ok, maybe another one?
5 user uploaded images
Home Owner from Santa Clarita
Is it Product Code: 82-238?
Home Owner from Santa Clarita

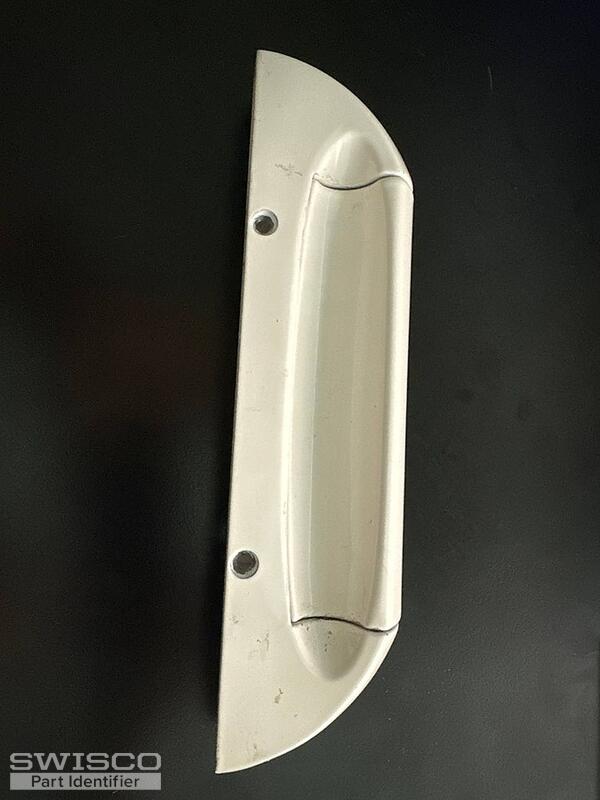

And I also need a new handle. In general, I need a complete set. Can you recommend one? Do the mounting screws come included?
Emily
Emily from SWISCO
SWISCO
Expert

Thank you! Yes, the 82-238 looks like a match for your old lock. The handle set designed to be used with this is the 82-080. The 82-081 is the keyed version. Both of these parts measure 4-15/16" on the installation hole centers and includes installation fasteners for doors up to 1-3/8" thick. Take a look at the specifications and see how they compare with your old hardware.

Alternate image for 82-238
Alternate image for 82-238

Alternate view of 82-238
Alternate view of 82-238

Dimensions for 82-080
Dimensions for 82-080

Thumb lever for 82-080
Thumb lever for 82-080

Home Owner from Santa Clarita
Thank you for the information. My door is 1.5 inches thick. Will the recommended parts still fit, or do I need different fasteners?
Emily
Emily from SWISCO
SWISCO
Expert

1-1/2" thick might be a little too big so you may need to reuse your original installation fasteners.
