Help! Cannot find this Tilt Window Pivot Bar

Handy Person from Tunkhannock PA
Mar 21, 2012 11:41 pm
I moved into my current home in 2006... It was built in 1993... I think that my windows were replaced in the early 2000's before I moved in, but I cannot find a label or manufacturer on them anywhere... Well, the one window broke a pivot bar about 3 months ago, and I cannot find a replacement ANYWHERE.... Please help me at least get a lead on this part!

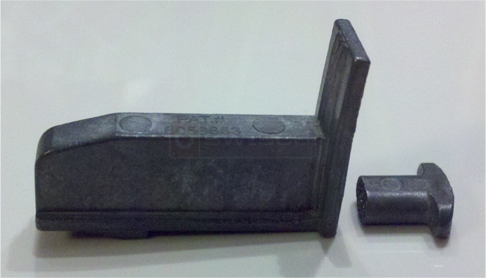

Note on the picture... This is the broken pivot bar, the small 't' that is broken off attaches 1/8th of an inch from the bottom... and the whole piece is 2 inches long... Thanks a lot for your help!

Randi
A customer submitted photo of a pivot bar.
Pat # 6058653
4 Replies
+ Add a Comment
Casey
Casey from SWISCO
Apr 10, 2012 3:06 pm
SWISCO
EXPERT
Thank you for your patience in this matter. We have located a possible replacement part. However, this part is not yet online. We will post an update on the discussion board as soon as the part is online and available for you to view.
Casey
Casey from SWISCO
Apr 13, 2012 10:23 am
SWISCO
EXPERT
Hi Randi,
Please take a look at new SWISCO product code 26-271, pivot bar. This is the closest we came to finding a replacement, I believe it might be a newer version of your original pivot, compare the dimensions and let us know what you think.
Home Owner from Tunkhannock PA
Apr 13, 2012 3:03 pm
All of the measurements are dead on! I just ordered a few of them... thank you so much for your help! I was truly at a dead end!!


Randi
Tom
Tom from SWISCO
Apr 13, 2012 3:29 pm
SWISCO
EXPERT
I hope it works out for you, Randi.

Let us know if you have any other questions.
