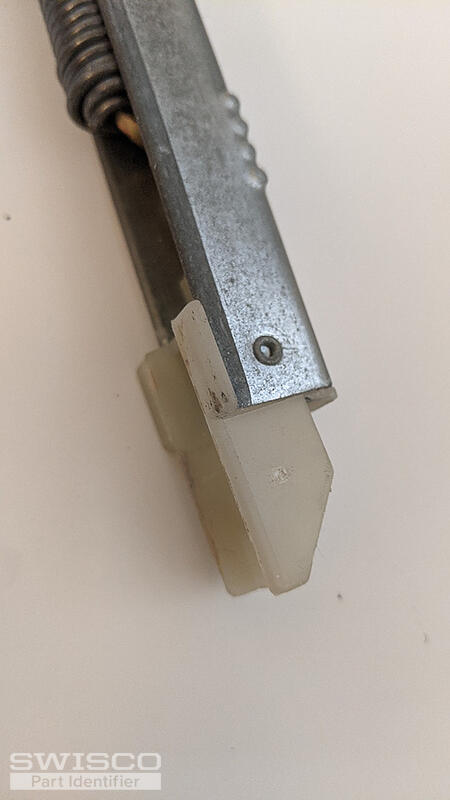

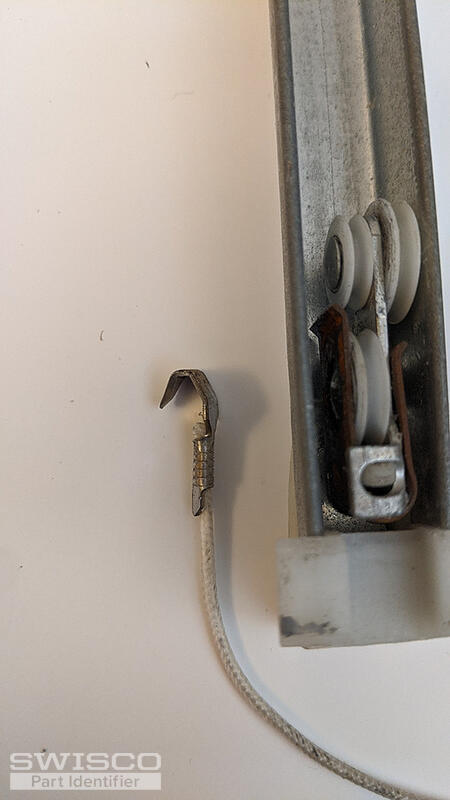

This balance is for a non-tilt window, 1/2" channel. I identified this balance as a: 27" Series 380 Channel Balance (2630). Please confirm.
5 user uploaded images
2 Replies

Emily from SWISCO
Jun 7, 2021 3:20 pm


Hi there!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2630.
If you have any further questions just let us know.

Comparison of the S378, S380 and S385 balance shoes.
