Hello,

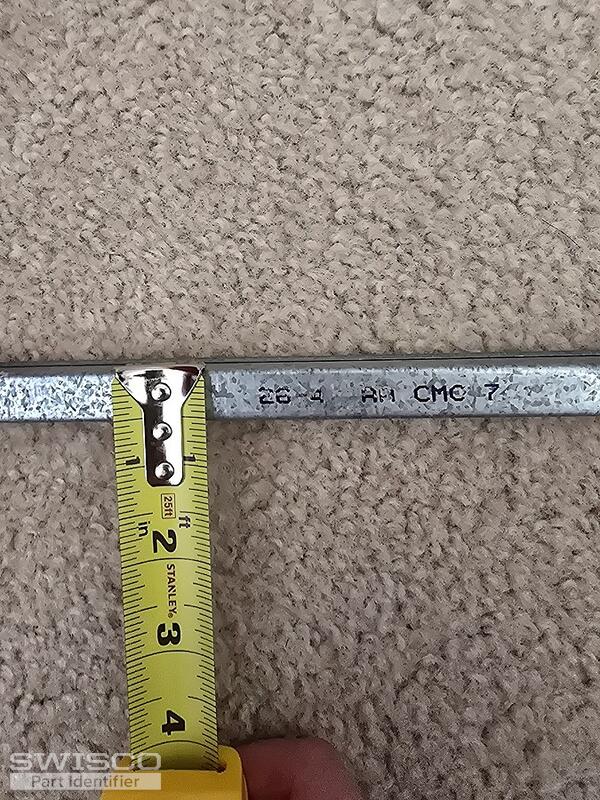

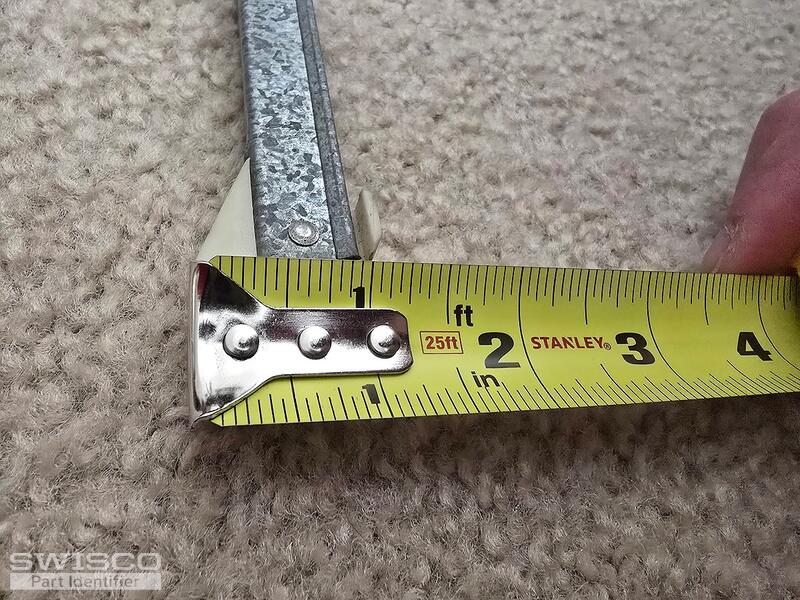

The rope for our window balance ended up breaking recently. I'm looking to find a replacement for this one. Our window weighs 20 lbs and is a non-tilt. The width of the balance is 1/2 inch with a length of 27 inches. Both the top and bottom fittings have wings that measure to 15/16 inch. The width of the bottom fittings measures approximately an inch. Help identifying the right part is greatly appreciated.
Help Identifying A Replacement
Quick Learner
Sep 6, 2025 8:37 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
Sep 10, 2025 4:25 pm
Thanks for your post! This window balance is similar to a few different balance series we have but they are not all interchangeable. To narrow down the correct replacement, I'll need to see a photo of the spring and the cord (string) from the existing balances. I'm particularly looking to see the bracket connecting the two.
Please let me know if you have any questions!
Quick Learner
Sep 10, 2025 6:07 pm

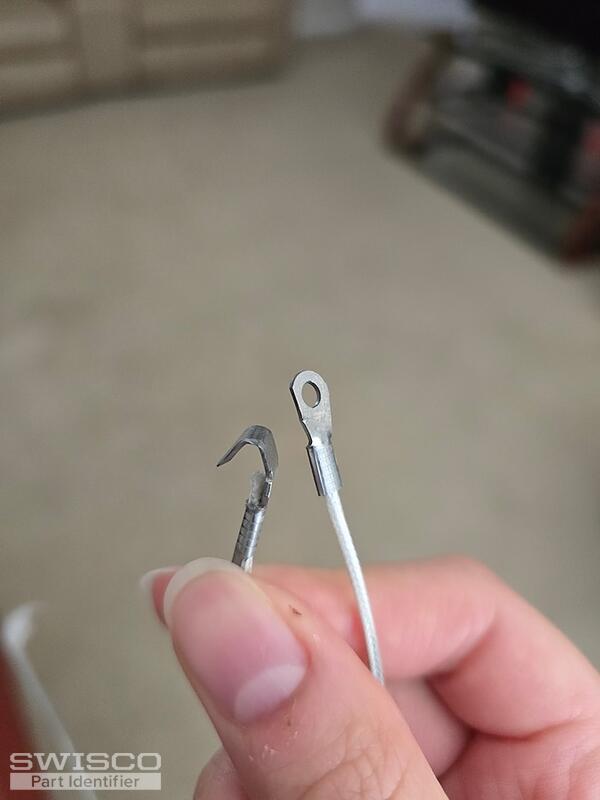

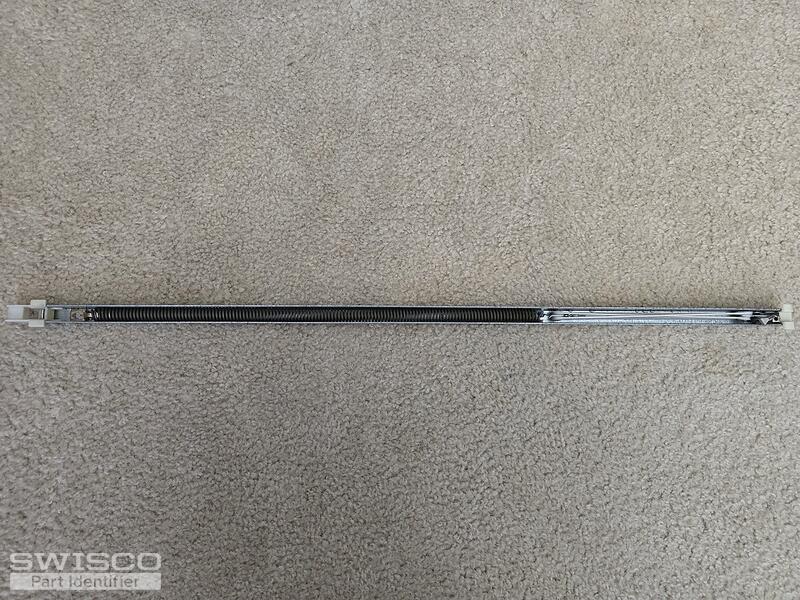

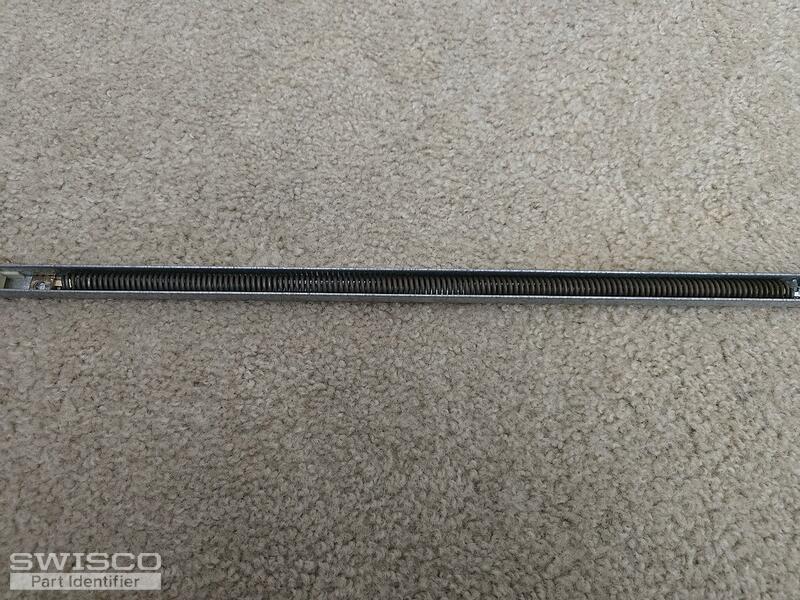

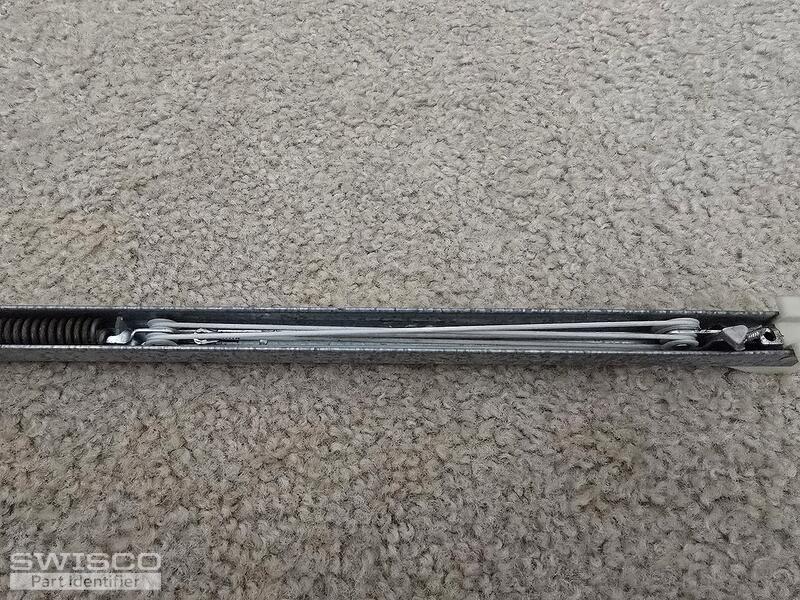

I took a photo of the window balance that was still intact and upclose shots of the ends of the rope. I'm not sure if those will be helpful.
Please don't hesitate to let me know if more photos are needed.
Please don't hesitate to let me know if more photos are needed.
4 user uploaded images
Jasmine from SWISCO
Sep 11, 2025 10:24 am
Thanks for the requested information. This window balance can be replaced with either the S380-27 or the S385-27. You'll need to measure the shoe's depth to determine the correct series.
Our 2640 stamp option will support sashes weighing between 19 to 26lbs.
Comparison of the S378, S380 and S385 balance shoes.
