Help Identifying Caldwell balance labeled "27 4 EL"
Quick Learner from Upper Marlboro, MD
May 11, 2021 9:08 am

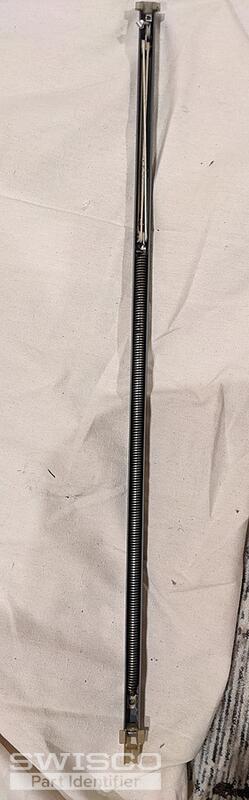

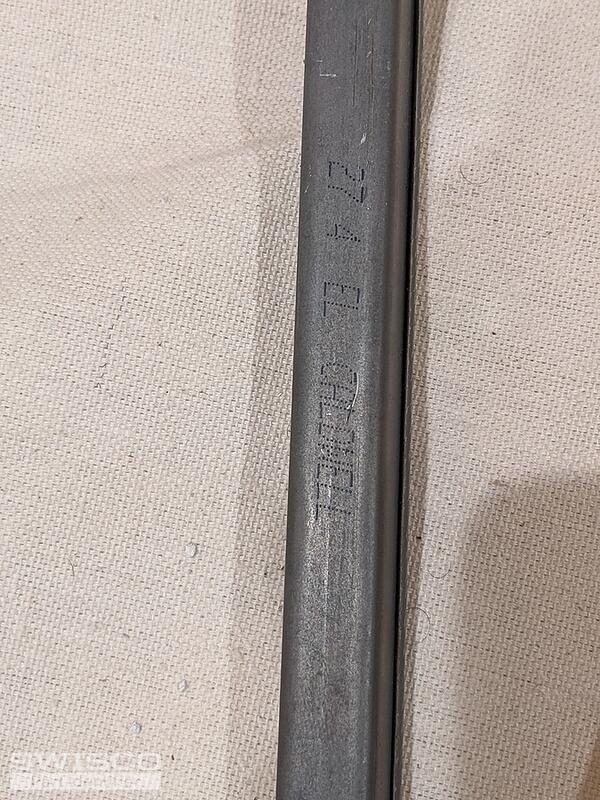

Hello, I'm trying to find the replacement part for my current balance that is labeled "27 4 EL Caldwell". The balance actually measures exactly 28 inches in length by about 1 inch width. Any help would be greatly appreciated, thank you
5 user uploaded images
2 Replies
Emily from SWISCO
May 12, 2021 12:36 pm
Hi there!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2740.
Comparison of the S380 and S385 balance shoes.
