Help Identifying Parts

A home owner says:
Hello, I live in a coastal area and have discovered corroded window assembly parts. I'd like to do a full replacement of everything for 3 windows.

Window sizes 24, 23, and 22.5

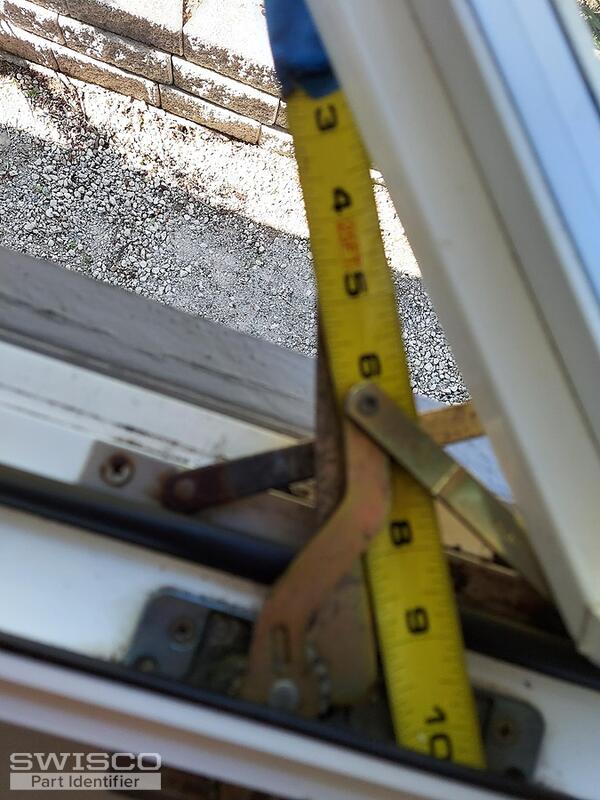

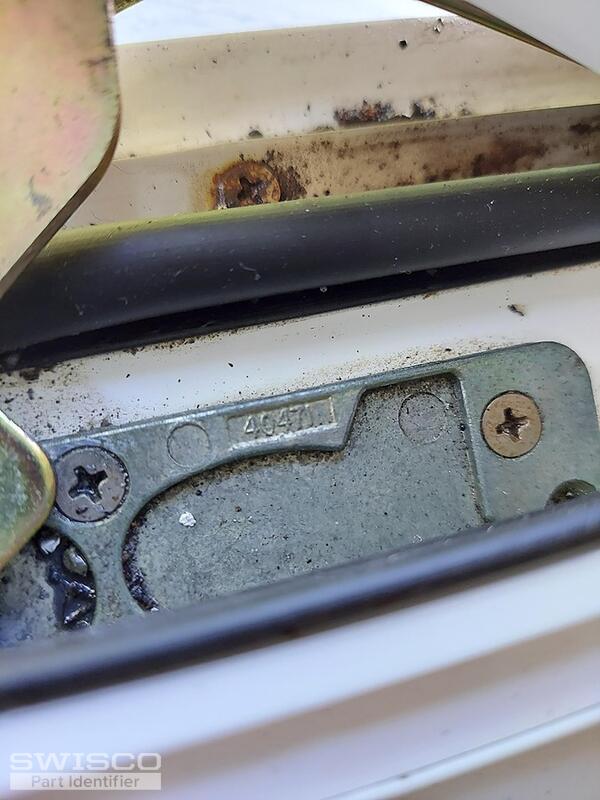

* Dual Arm plate size is 4.5 inches where the crank arm attaches.

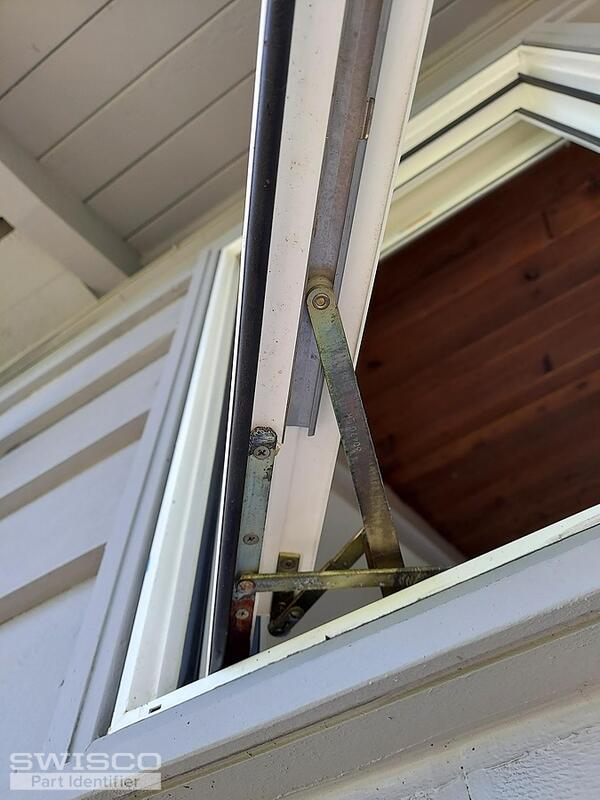

* Below the Dual Arm plate is another hinge with a frame length of 10" long and 4 screw holes. I want to replace the bottom and top assembly.

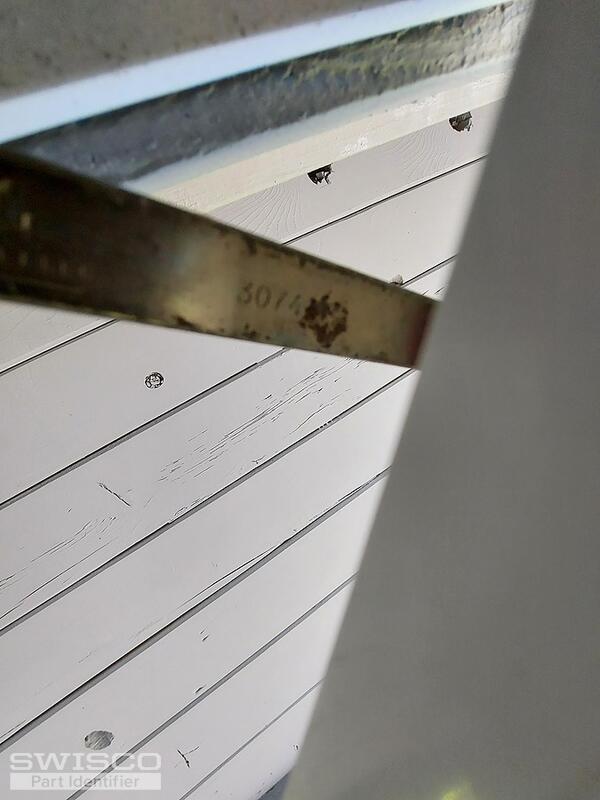

The parts have "truth" stamped.

Pictures of everything uploaded.

Thanks in advance - Michael
Thumbnail of the uploaded file named five.jpg
Thumbnail of the uploaded file named four.jpg
Thumbnail of the uploaded file named one.jpg
Thumbnail of the uploaded file named three.jpg
Thumbnail of the uploaded file named two.jpg
Profile picture of Lauren
Lauren from SWISCO responded:

Hi Michael, thank you for posting!

Please start by reviewing the style and dimensions of the 39-031 and 39-032 operators to see how they compare to your originals. If a new cover and handle are needed, take a look at the 39-107 and 39-114L

For a new hinge set, please review the 36-048 2-bar hinge set. Both the top and bottom will need to be replaced at the same time.

We also carry the 36-004-10 hinge set which is a stainless steel version. Please not that this style is not adjustable like the 36-048 shown in the video related on the page.

Take a look and let us know what you think!
