Help Part Identification AND Instructions

Quick Learner from Naples, FL
Printed on metal coil:
#7.5 35” 672L Z 04/12/18  2

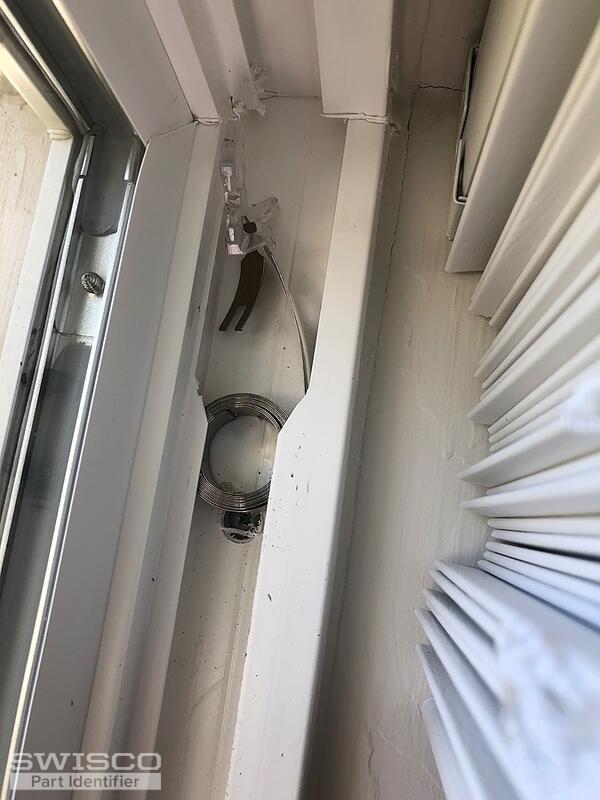

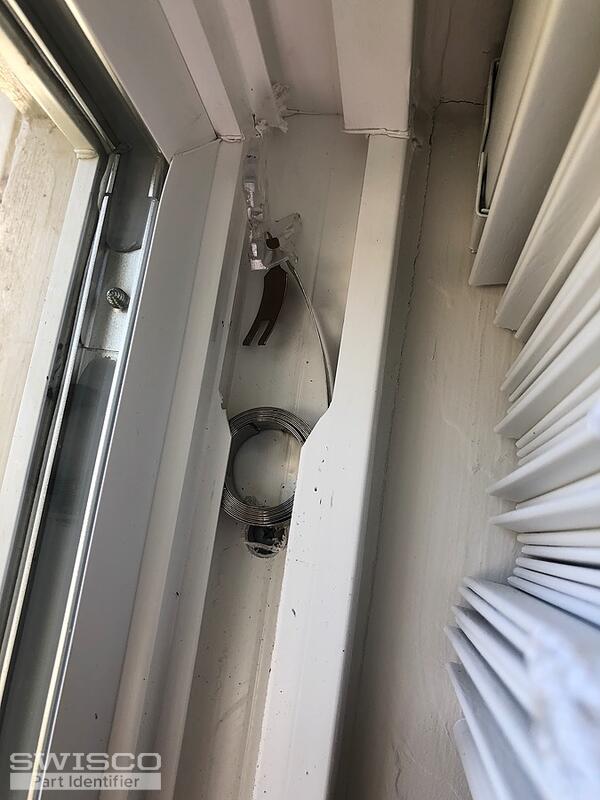

Need part identification help AND instructions on how to remove/install parts. window is a tilt in window. single metal coil spring housed in the long plastic part
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I'd recommend starting by comparing the specifications of the 15-252 dual support to your assembly. If it's a match, see the S160-07 used with this assembly. It is often used with the 16-032 mounting bracket. Look over these parts and the related videos to assist you. Thanks for posting!

Detail of 15-252
Detail of 15-252

Dimensions for 16-032
Dimensions for 16-032
