Help! Reynolds Sliding Roller

A quick learner from Rochester says:
August 15, 2017

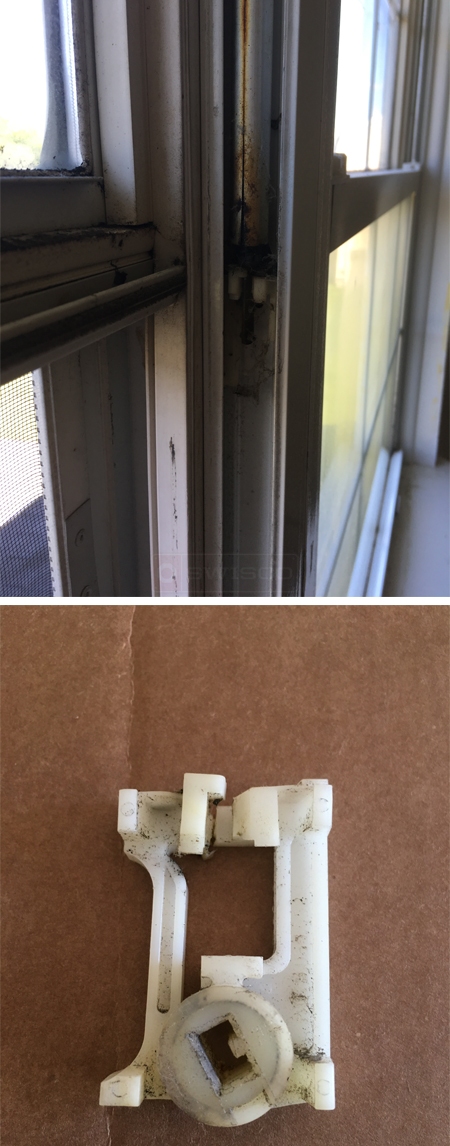

Hi, I need to replace a bunch of these rollers. The manufacturer is Reynolds and I believe the windows are marked with 1-74 or 11-74. The replacement part doesn't have to be identical, if something else will work, that's fine. They're at the bottom of a 5/8 spiral balance. They're about 2" tall by 1.5" wide. Thank you so much.
Help! Reynolds Sliding Roller
Profile picture of Paul
Paul from SWISCO responded:
August 21, 2017
Hello! It looks like you have an old design of pivot shoe. This little fellow has been replaced by the new style, which is our 15-015. Take a look and make sure the measurements match.
A quick learner from Rochester says:
August 27, 2017

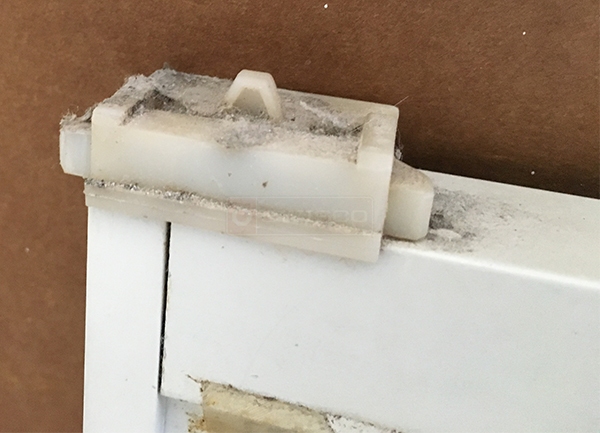

Paul, thank you so much...do you have a replacement for these locks? They're on the same windows. They're approx 2 inches wide by 1 inch long. There's one on the top of each side of the bottom sash. Thanks again!
User submitted a photo of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
September 1, 2017
I believe our 26-126 top tilt latch would do the trick for you. I want to mention that they are reversible and they are only offered in black. If this all sounds good to you and it's a match to what you have, then you should be good to go.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Top Tilt Latch, Neutral
Top Tilt Latch, Neutral
26-126
$3.20
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
