Help find right parts

Quick Learner from Las Vegas NV

May 19, 2020 7:47 pm

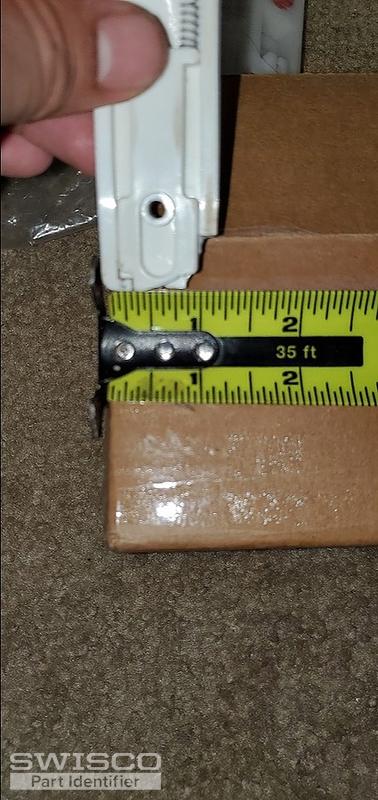

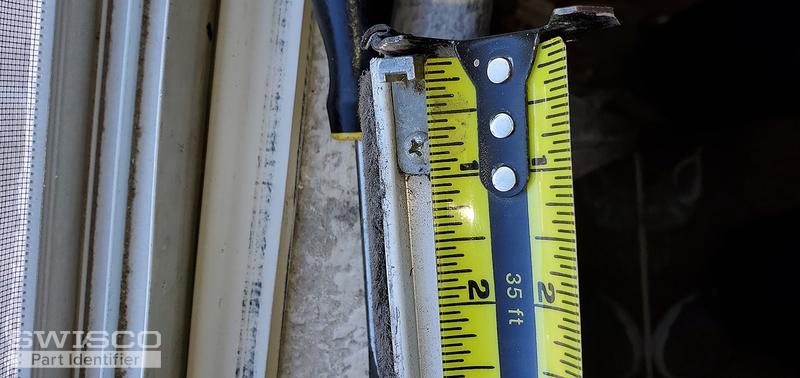

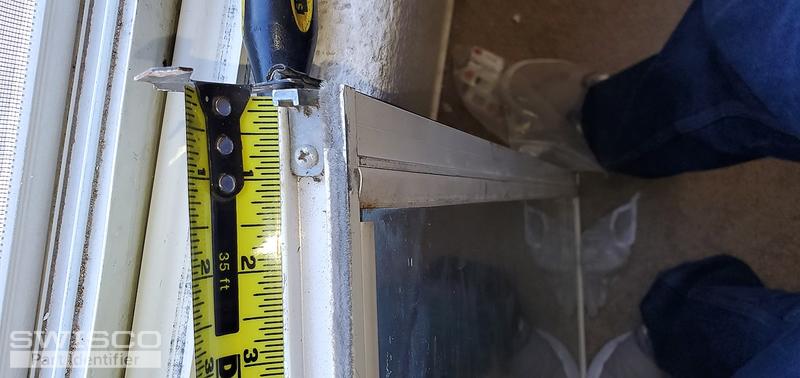

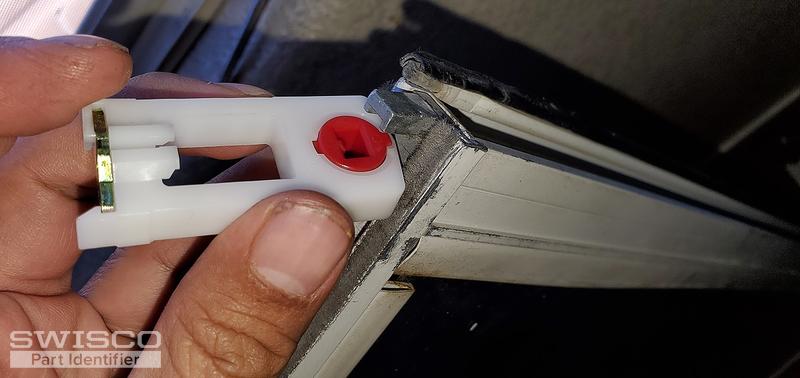

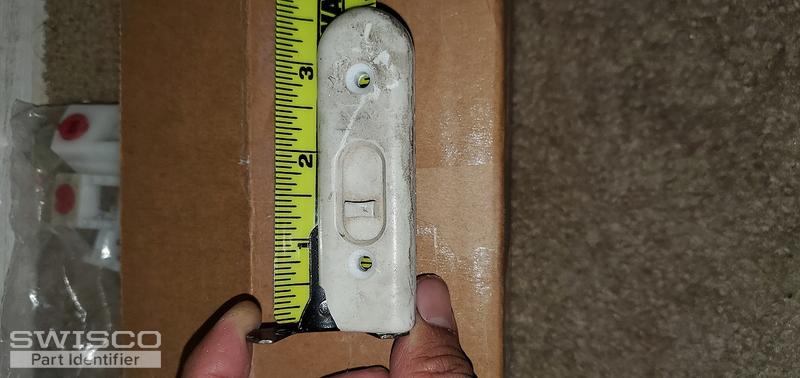

I purchase pivot shoe but it does not fit the end of the window lock thing dont know what its called can you direct me to the correct part to switch the end of the window little latch/bar to switch them out. Also can you direct me to the right window tilt lock both right and left thanks.

5 user uploaded images

4 Replies

Casey from SWISCO

May 22, 2020 7:47 am

Hello,

We'd be happy to help. We'll just need to see a photo of your original pivot shoe that the bar engages with removed from the window, along with the width and thickness, to narrow down your options. We'll also need to see an undamaged tilt latch to compare. Thank you!

Quick Learner from Las Vegas NV

May 23, 2020 2:56 am

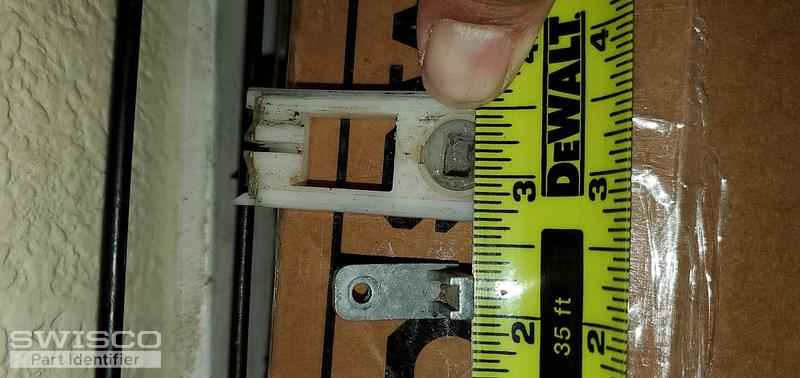

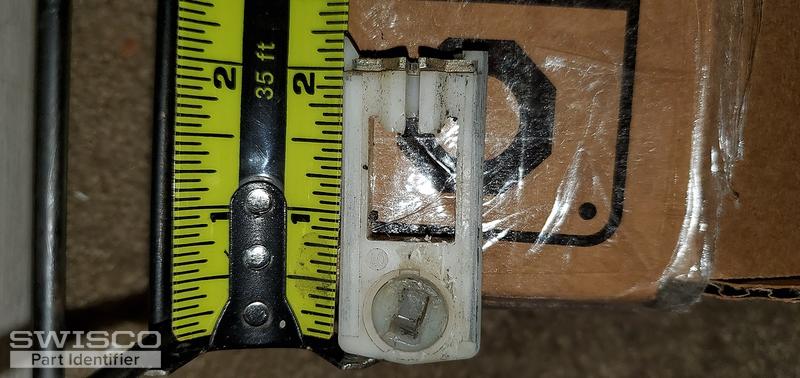

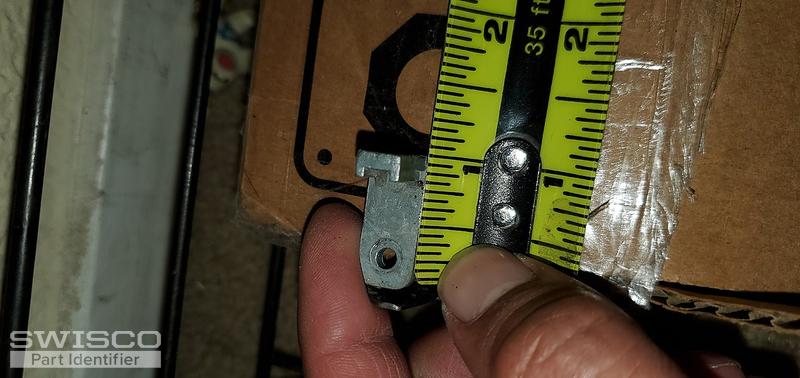

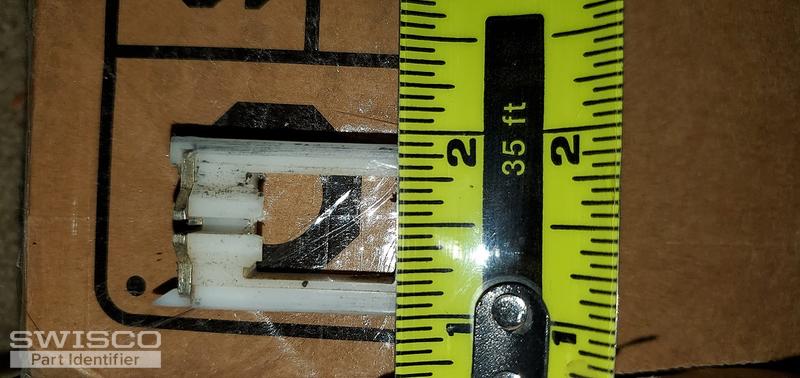

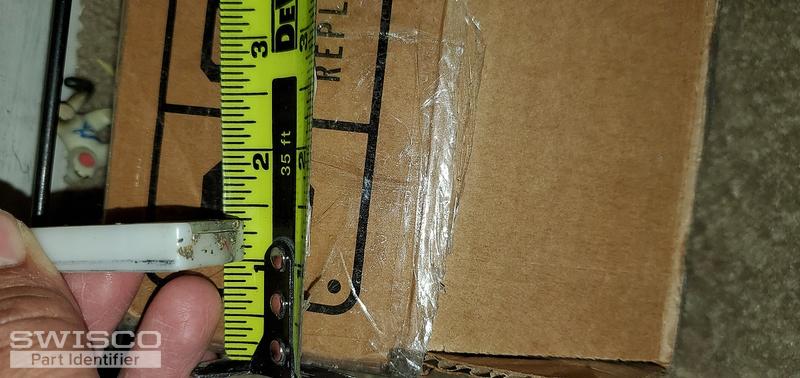

Here are the upload photos requested. Thanks for your help

5 user uploaded images

Paul from SWISCO

May 26, 2020 2:49 pm

Thank you for the additional photos. For your wider pivot bar, you can use the 15-212 pivot shoe. As for the tilt latches, compare your dimensions to our 26-439 latch pair. Thank you!
