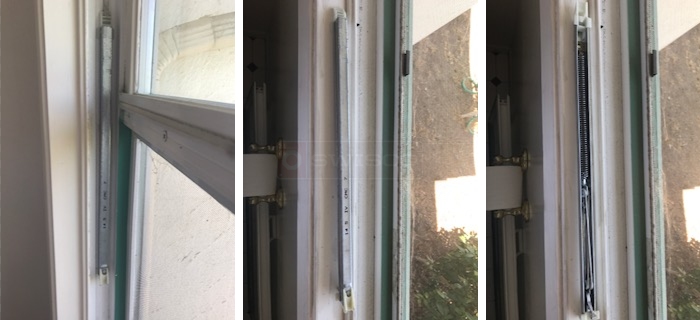

Help finding 16" long Chanel Balance

Quick Learner from San Diego
1/2 inch wide, 16" long tip to tip
Balance
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

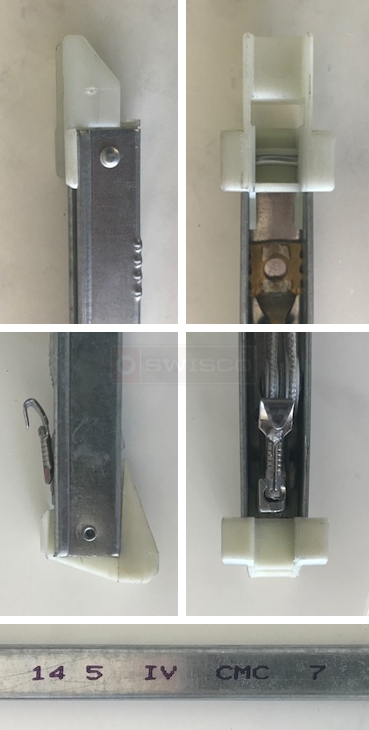

First step, I need you to re-measure your metal channel. Don't measure the plastic bits, just the metal. It looks to me as if your balance is stamped "14" which would normally (and this is counter-intuitive) correspond to a 15" balance. Is your balance 15" or 16"? Can you also read that "14" stamp? What does it say?

As for the Series of your balance, it could be either the Series 380 or Series 385. The difference between those two lies in the bottom vinyl shoe. You'll need to measure it as shown below. A 1" shoe indicates that you need an S380-15 (or 16, don't forget to double check the length). If the shoe is 1-3/32" or so, choose an S385-15 or S385-16. The length of the channel will make all the difference once you identify the Series using the shoe.
Alternate view of 15-005
Alternate view of 15-005
Quick Learner from San Diego
1/2 inch wide, 15" metal piece, 1 inch shoe.

More Pictures Added.
Channel balance
Paul
Paul from SWISCO
SWISCO
Expert
As Mike said, you need to measure your shoe as shown in the photo above. If the shoe measures 1", you have the S380-15. If it measures 1-3/32", you are dealing with the S385-15. In either case, your stamp option is 1450.
