Help finding Operator
Quick Learner from USA
Aug 4, 2025 8:43 am

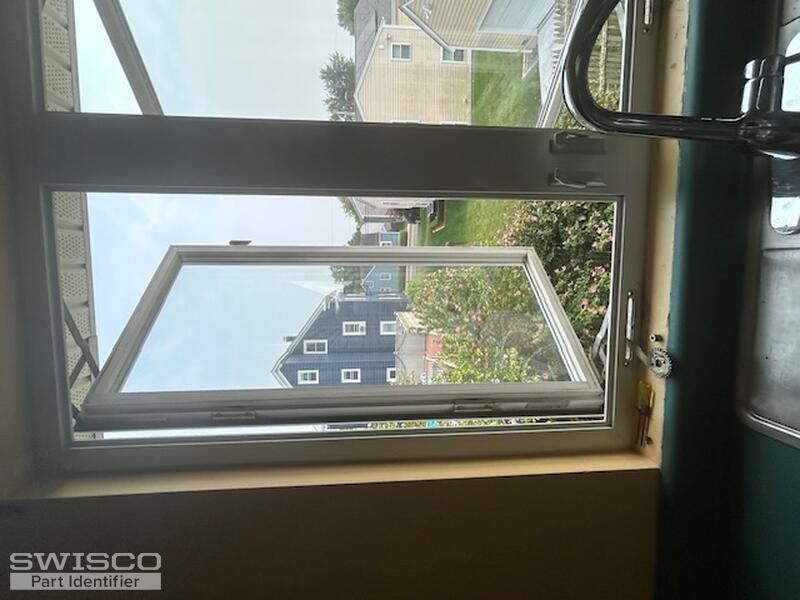

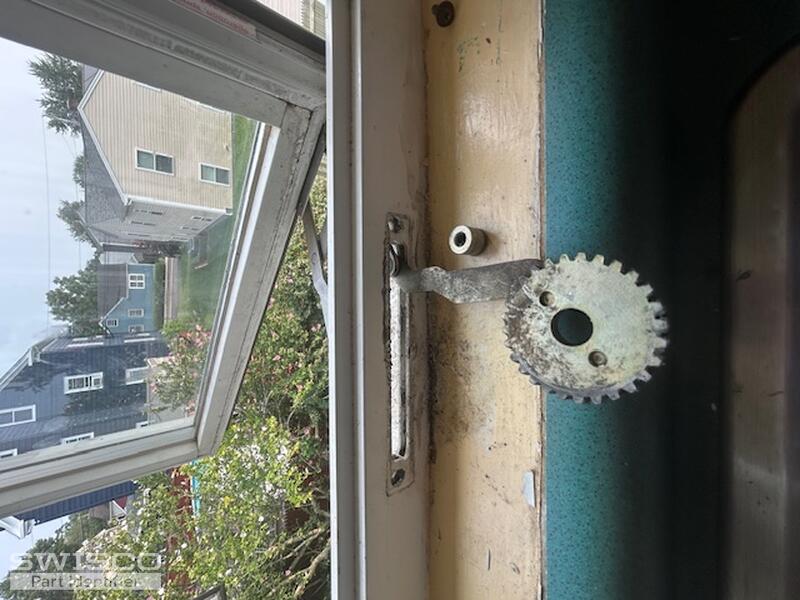

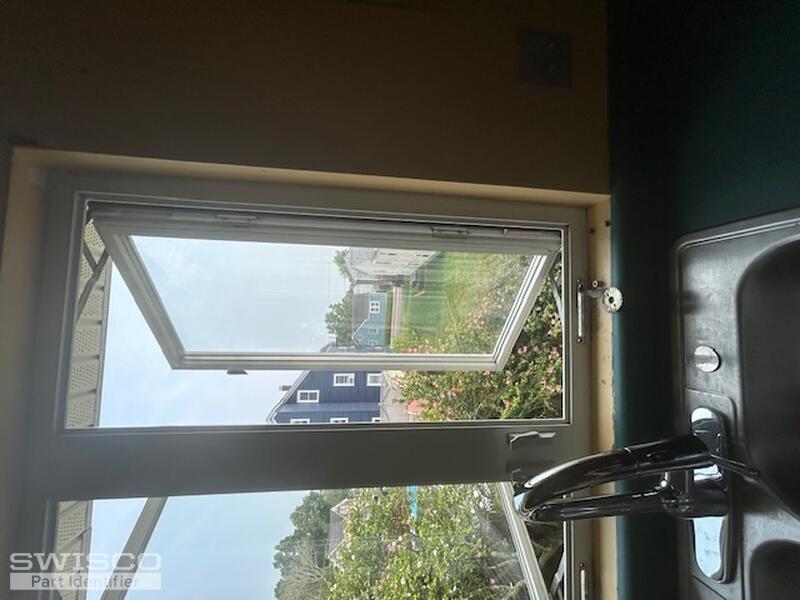

These are the only pictures we have.
3 user uploaded images
7 Replies
Quick Learner from USA
Aug 6, 2025 9:40 am

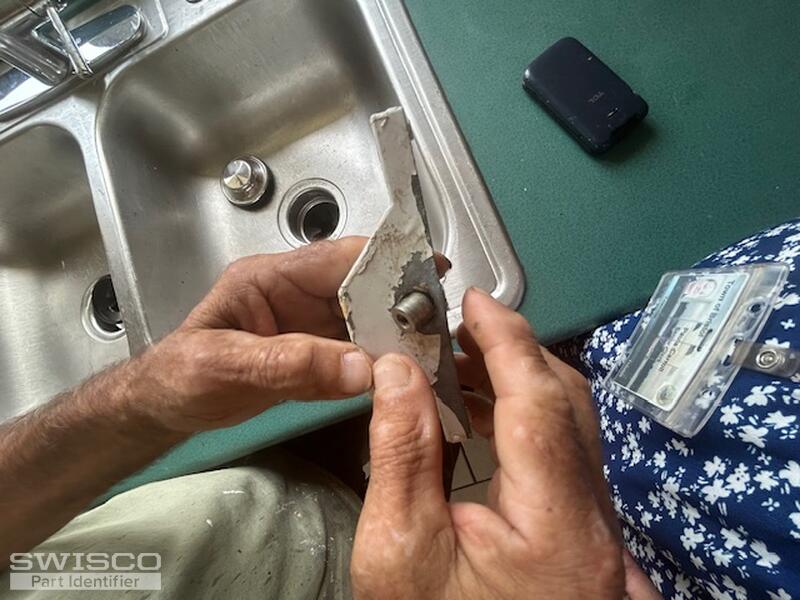

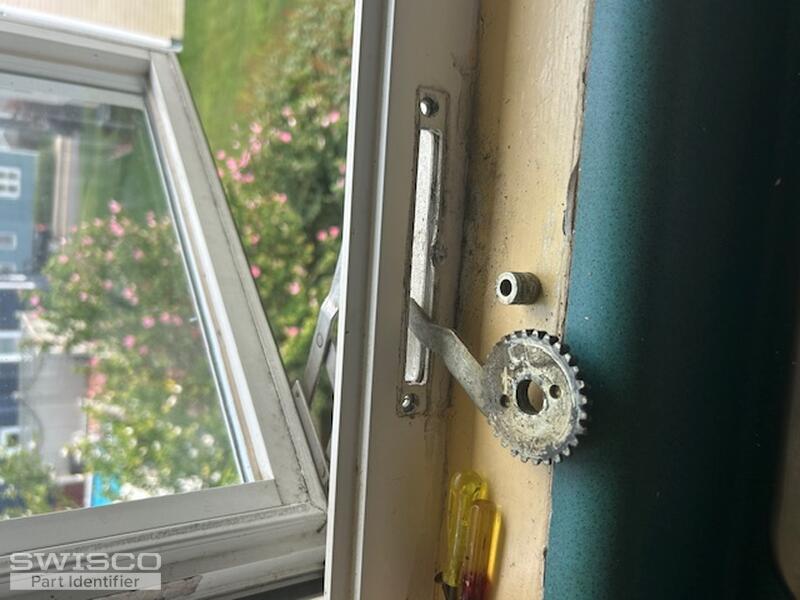

I went to the house and took more pictures for my dad who is working on the house. Is this part available to order?
5 user uploaded images
Tom from SWISCO
Aug 7, 2025 11:46 am
It's very difficult to make out what kind of operator you have based on its current condition, but from what I can see the design appears similar to our 39-188. Look this part over and see what you think.
Alternate measurement of arm
Quick Learner from USA
Aug 14, 2025 10:54 am

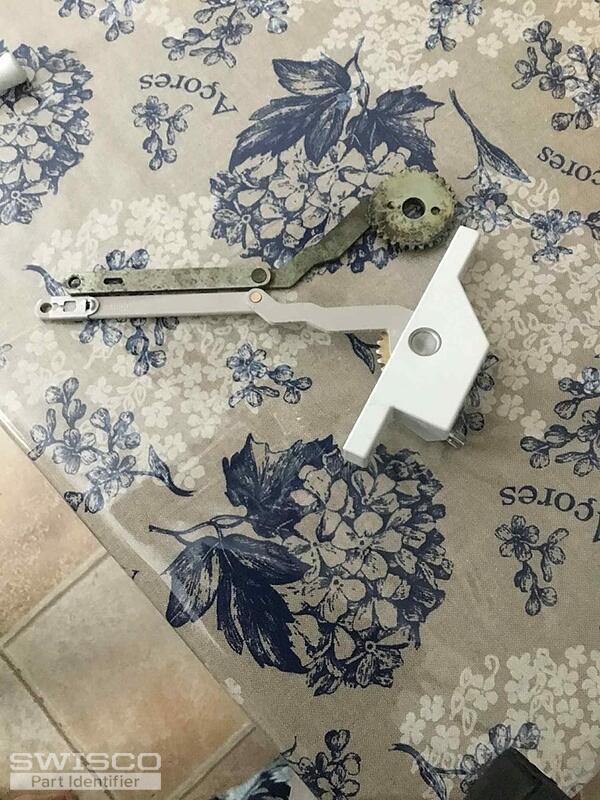

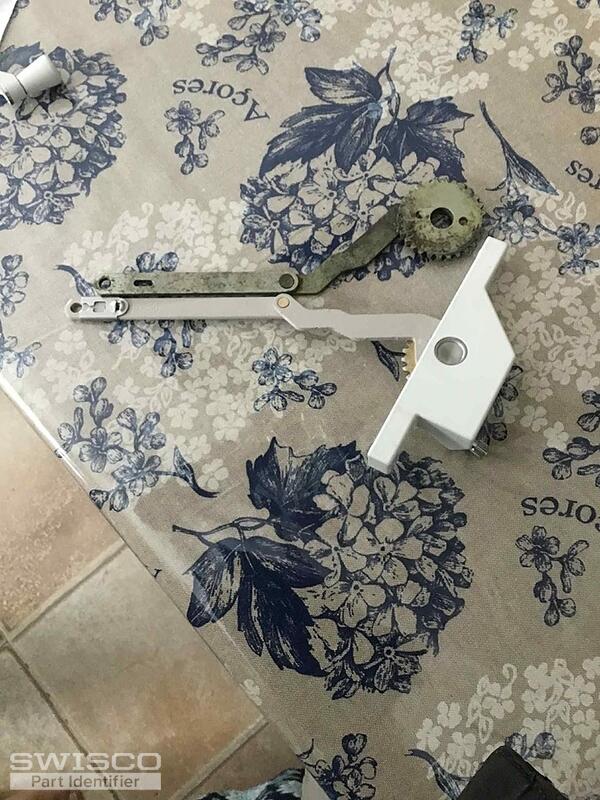

the item i purchased was to long. do you have a size smaller? it you see the picture
2 user uploaded images
Tom from SWISCO
Aug 15, 2025 9:01 am
The 39-188 would be the best we can offer. What you could do is swap the old and new operator link arms. You'll need the 62-014B rivet to do so. What you want to do is place the elbow of the link arm on a metal plate and hammer the 62-014B rivet until the skinny end mushrooms out and locks it in place.
Quick Learner from USA
Aug 15, 2025 9:57 am
but the window doesn't close all the way
Tom from SWISCO
Aug 15, 2025 11:20 am
If the difference in arm length differs, that could account for why it doesn't. Swapping the old and new link arms would be the best we can offer, however.
