Help finding larch

Question

Hi,

I have been trying to find two of the latches for my casement multi-point window. I need some help locating these.

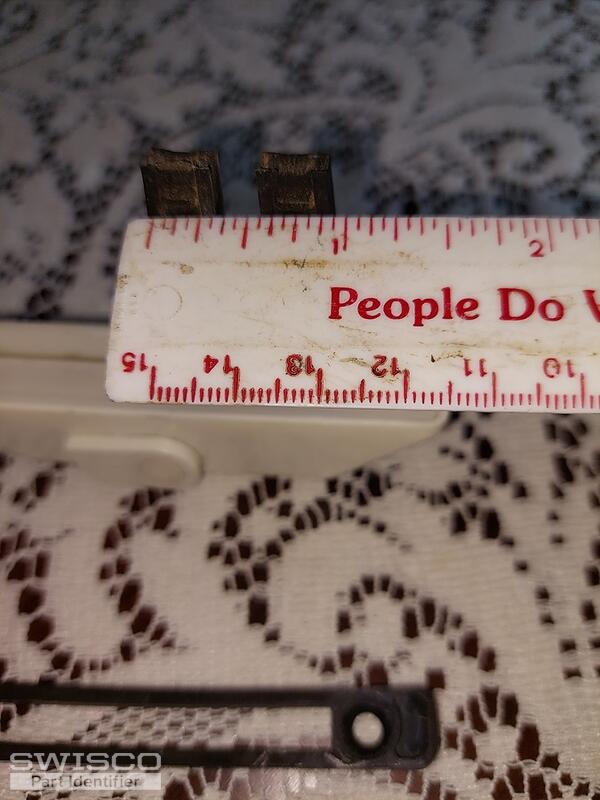

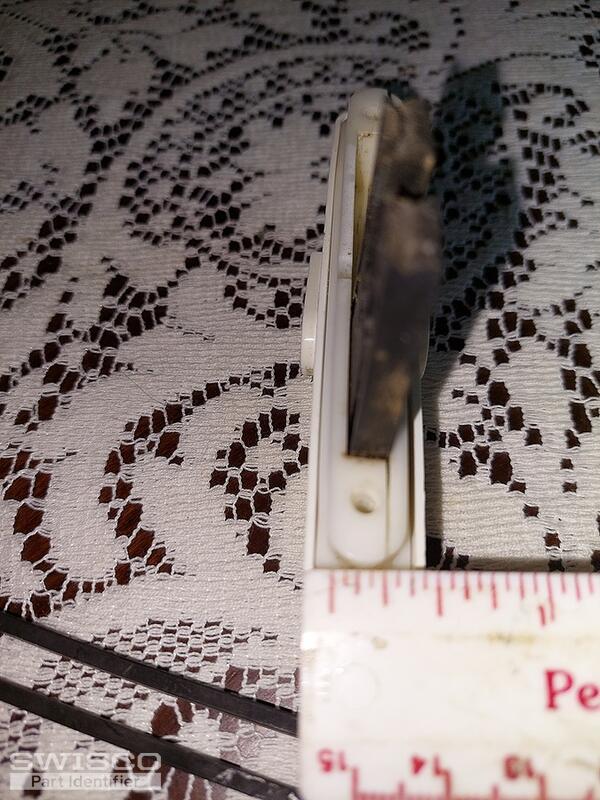

I tried to include pictures with sizes. Looks like screw holes are about 3 14 inches apart, fork about 1 inch, width if piece through window about 3/8 inch, height of fork 1 1/4 inch.

Thanks for any assistance.
Dan

Tom · Accepted Answer

Hello, Dan. I'm afraid we don't sell this exact lock. The closest options we have are our 38-095 and 38-096, though our measurements are a bit different compared to yours. Review the diagram for each one to see if you could adapt either for use in your window. Note that we don't measure just the projection of the fork, but rather from its outermost tip to under the lip of the lock housing.

Alternate view of 38-095

Side view of 38-096

View of 38-096 Hole Centers

Alternate view of 38-095

Side view of 38-096

View of 38-096 Hole Centers
